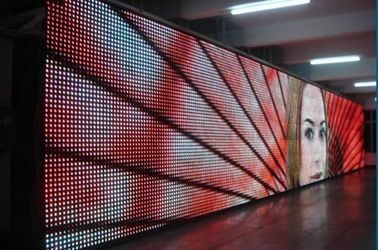

Full Color HD Flexible LED Curtain Wall P20 Outdoor LED Display Screen

Large Image : Full Color HD Flexible LED Curtain Wall P20 Outdoor LED Display Screen

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	SKYVIEW
Certification:	3C/GMC/ISO9001/CCPC
Model Number:	P20

Payment & Shipping Terms:

Minimum Order Quantity:	1sqm
Price:	1-100000usd
Packaging Details:	Wooden Case/ Flight Case
Delivery Time:	7-15 Working Days
Payment Terms:	L/C, T/T
Supply Ability:	>500sqm/month

Contact Now

Detailed Product Description

Product Name:	Outdoor Full Color LED Display	Pixel Pitch:	20 Mm
Size Of Panel:	480 X160	Brightness:	6000
Usage:	Advertising	Pixel Density:	6944
Weight:	46 KG For Each Cabinet
High Light:	Led Curtain Wall , Outdoor Led Curtain

Full Color HD Flexible LED Curtain Wall P20 Outdoor LED Display Screen

Description

Panel input format(with video processor), such as ,VGA,DVI,RGBHV, PbPr (HDTV),Composite, S-Video, TV . There are also interfaces for Sound signal and video signal. The gray level si 65536 level, and the brightness, contrast,saturation, chroma can be adjusted by manual and sensor. Show all sort of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously or asynchronously. Can be used outdoor in all kinds of circumstance, and excellent capability of antisepsis, waterproof. More faster to assemble or disassemble it without any tool.

1. Product Feature

Wide application field&short ROI time: commercial advertisement, Stadium perimeter, Mobile trailer LED video display screen for mobile media, shopping mall, bank & stock exchange, train & bus station, airport, telecommunication.

High Contrast: 4000:1

First-class LED chip: Supplied by Nichia of Japan & other high strictly selected LED chip Clear vivid image quality even in direct, full-on sunlight.

Long-term Brightness: 2500-nits brightness capacity throughout product lifetime.

Easy Installation & Using: easy & simple installation interface and user friendly software.

Convenient Servicing: Front and rear cabinet access make the maintenance work very convenient and low cost.

We have several models of OUTDOOR & INDOOR LED CURTAINS (for events, TV studios, clubs, decoration etc...)

MODEL>	PM-18	PM-20	PM-25	PM-37*	PM-50**
Module dim. (mm)	600x600	640x640	800x800	600x120	800x800
Pixels / module	32x32=1024	32x32=1024	32x32=1024	16x32=512	16x16=256
Pitch	18.75 mm	20 mm	25 mm	37.5 mm	50 mm
Configuration	1R/1G/1B	1R/1G/1B	1R/1G/1B	1R/1G/1B	1R/1G/1B
Brightness / sq.m.	5000 Nits	4500 Nits	4000 Nits	2300/7000 Nits	1500 Nits
Total life (Hours)	100,000	100,000	100,000	100,000	100,000
Visible angle	120V-60H	120V-60H	120V-60H	110V-50H	110V-50H
Viewing distance *	25-1500M	30-1500M	40-1500M	75-1500M	100-1000M
Video quality*	Excellent	Excellent	Very good	Good	Average
Operating Temp. C	-25/+55	-25/+55	-25/+55	-25/+55	-25/+55
Max. power / module	200 W	200 W	200 W	100 W	50 W
Weight per module	7.5 KG	8 KG	8.5 KG	7 KG	5 KG
Protection Level	IP65 (waterproof)	IP65 (waterproof)	IP65 (waterproof)	IP65 (waterproof)	IP65 (waterproof)

Applications

The RGB LED Display Are Very Popular In Outdoor Field. This Type Screen
Are Popular Used Outdoor Shopping Center ,Outdoor Building,Foodball Field,crossroad,
highway,Concert,airport etc;

competitive advantage

1. Good Sevice , 24/7 online support service.
2. Good Quality For Every LED Display Product.
3. Good Price.
4. High Quality Driving IC .
5. Red,Green And Blue LED Chips Incorporated Encapsulation ,Better Perspective.
6. Two Years Maintenance Service With Free.
