Product Details:
Payment & Shipping Terms:
|
| Usage: | Outdoor | Tube Chip Color:: | Full Color |
|---|---|---|---|
| Display Function: | Video | Pixels:: | 16mm |
| Brightness:: | 6000 To 8000cd/sqm | Protection Level:: | IP65 |
| High Light: | led outdoor advertising board,outdoor led billboards |
||

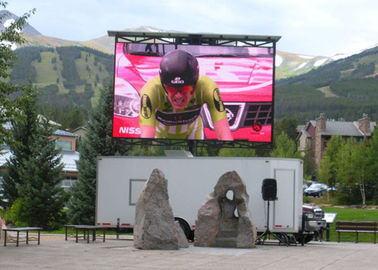

Ultra Thin outdoor electronic advertising p16 led display screen light absorbing mask
outdoor p16 led display screen adopts physical and virtual pixel technology which makes the picture more clear and vivid, no flicker and blind dots. The screen is manufactured in a waterproof and dustproof design so it can work very well in rain and sunshine. It can be assembled and disassembled very easy, and it is an ideal product for any kind advertisements.
It characterized by perfect vivid image, super brightness, high refresh rate, long life span and stable work and waterproof, etc.
Specification and Parameter
|
Pixel Pitch |
16mm |
|
Physical Density(pixels/m²) |
3906 |
|
LED Shape & Size |
3mm Oval Lamp |
|
LED Arrangement |
2R1G1B |
|
Module Size(mm) |
256×128 |
|
Module Resolution |
16×8 |
|
Drive Mode |
Static Constant Current |
|
Brightness(cd/m²) |
≥6000 |
|
Contrast |
≥2000:1 |
|
View Angle, 50% Brightness |
110°/50° |
|
Minimum View Distance |
16m |
|
Grey Scale |
10bits/1024levels |
|
Color Capacity |
1.07billion |
|
Maximum Power Consumption |
900W/m² |
|
Ave.Power Consumption |
450W/m² |
|
Operation Power Source |
AC90-260V 50-60HZ |
|
Frame Frequency |
60-85HZ |
|
Refresh Rate |
240-1000HZ |
|
Brightness Adjustment |
0-100% 8 levels automatic |
|
Gamma Correction |
-5.0-5.0 |
|
Correction Scale Level |
16bits |
|
Color Temperature |
5000-9300K |
|
Brightness Correction |
Pixels, Module, Cabinet Correction |
|
Input Source Support |
Composite, S-Video,Component,VGA,DVI,HDMI,SDI, HD_SDI |
|
Control Distance |
UTP CAT5E:100m;Multi-mode Fiber:500m;Single-mode Fiber:10km |
|
Operating Temperature |
-40°C - 65°C |
|
Operating Humidity |
10-90%RH |
|
Operating Life Span |
100,000Hours |
|
MTBF |
5000 Hours |
|
Protection Ratings |
IP65(Front Side),IP54(Back Side) |
• Light weight and slim design
• Easy and fast installation and maintenance
• Waterproof, wind resistant and great heat dissipation

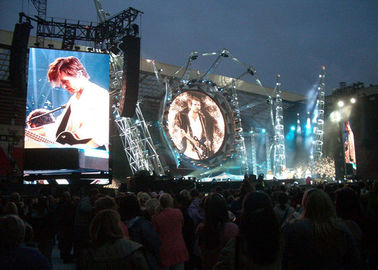

• Can be used for any stage application
• Hanging, pile-up and fix installation available
