Product Details:
Payment & Shipping Terms:
|
| Usage: | Outdoor | Tube Chip Color:: | Full Color |
|---|---|---|---|
| Display Function: | Video | Pixels:: | 10mm |
| Brightness:: | 6000 To 8000cd/sqm | Protection Level:: | IP65 |
| High Light: | outside led screen,outdoor led billboards |
||

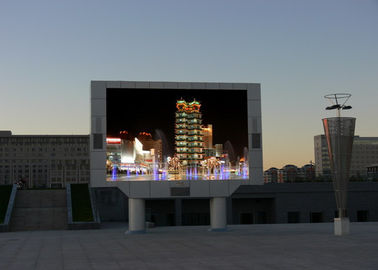

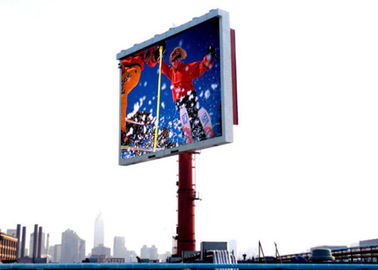

High way Airport Tri-color RGB outdoor led display SMD2020 Aluminum cabinet
Our outdoor SMD series offers 24/7 reliability at a low cost of ownership. With less power consumption and a lighter weight than similar products, Visual Lumen's outdoor RGB LED displays are a perfect fit for digital signage and sports applications.
The outdoor SMD features environmentally friendly technologies that reduce light pollution, such as contrast enhancing shaders that allow for lower brightness and lower power consumption as well as a higher visual performance and a downward angle on its LEDs.
This ensures that light is well targeted at your audience and that less excess light is spilled, which leads to a lower power consumption and longer lifetime.
Specification of Outdoor LED Display
| Pixel pitch | 10mm |
| Brightness | 7500 nits |
| Brightness adjusted | 100 grade by software, or Auto-optic |
| Color temperature | Could be adjusted by software |
| LED configuration | 1R, 1G, 1B SMD |
| Pixel density | 10,000 pixels/sqm |
| 9,216 pixels/cabinet (96 * 96) | |
| Hor.viewing angle | 140 degree (min 50% brightness) |
| Vert.viewing angle | 140 degree(min 50% brightness) |
| Lifetime | 100,000 hours to 50% of initial brightness |
| MTBF | 10,000 hours |
| Power consumption | 1000 w/sqm (Max) |
| 500 w/sqm (Average) | |
| Operation power voltage | AC 110V / 50 - 60Hz |
| (Option, we'd confirm before production) | AC 220V / 50 - 60Hz |
| AC 100-240V / 50-60Hz | |
| Working voltage | DC +5V |
| Cabinet dimensions | Width: 960mm |
| Height: 960mm | |
| Depth: 150mm | |
| Weight / Cabinet | 40 Kg |
| IP rating | IP66 Front side |
| IP65 Back side | |
| Processing | 14 bit/color |
| Colors | 4.4 trillion |
| Refresh rate | 2000 Hz |
| Frame rate | 60Hz |
| Link interface | DVI |
| Serviceablity | Back, (Front & Back are option) |
| Source compatibility | DVI,SDSDI,HDSDI,VGA,HDMI,YPbPr,PAL/NTSC system composite |
| Certifications | CE,FCC,RoHS |
Features:
1. Preeminent effects: Clear and stable pictures without distortion and disturbance.
2. High quality: Adopting first-class chips and wafers imported from abroad
3. Flexible form: Continuity, overlying, combination of dynamic and static playing, various effects include rolling moving, typewriting, gradual changing and so on
4. Offline running function: Adopting the monolithic design technology and computer string communication way, which can operate in off-line state setting the dates and revising a data via the telephone line
