Pixel pitch 16mm Outdoor full color led display for soccer stadium basketball court

Pixel pitch 16mm Outdoor full color led display for soccer stadium basketball court

Pixel pitch 16mm Outdoor full color led display for soccer stadium basketball court
Pixel pitch 16mm Outdoor full color led display for soccer stadium basketball court Pixel pitch 16mm Outdoor full color led display for soccer stadium basketball court

Large Image :  Pixel pitch 16mm Outdoor full color led display for soccer stadium basketball court

Product Details:
Place of Origin: Shenzhen ,China
Brand Name: LanGao
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: LGP16
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm. / 1 piece
Packaging Details: Plywood or Flight Case
Delivery Time: 10-20 days
Payment Terms: T/T, L/C, ,Paypal
Detailed Product Description
Usage: Outdoor Tube Chip Color:: Full Color
Display Function: Video Pixels:: 160mm
Brightness:: 6000 To 8000cd/sqm Protection Level:: IP65
High Light:

outside led screen

,

outdoor led billboards





Waterproof P16 football stadium perimeter Outdoor LED Display System full color

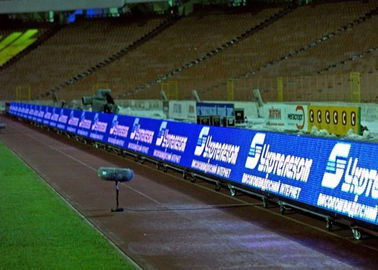

The stadium led displays are widely used in the football field, basketball court , swimming center and diving center.

1.  Show function(advertising, such as Nike, Coca cola,etc)

2.  Function of time and score(live showing the score)

3.  Information processing function

4.  Emergency treatment function





Specifications for perimeter led display screen



Pixel pitch

16mm

Module size

256×128mm

Pixel configuration

1R1G1B

Module resolution

16×8dots

View angle

110°/55°

Pixel density

3,906dots/m²

LED encapsulation

DIP346

Refresh rates

>3000Hz

Driving Method

static,
constant current

Max power
consumption

700w/m²

Brightness

>7500nits

Average power
consumption

350w/m²

Working voltage

AC110/220V

Working temp

-20°C to +60°C

Best viewing distance

>12M

Working humidity

10%~90%

LED parameters

R:625nm±5.0nm
IV:1400-1500mcd

MTBF

>5000 hours

G:525nm±2.5nm
IV:2500-2800mcd

Gray level

RGB/8192/14bit

B:470nm±2.5nm
IV:600-650mcd

Lifespan

>100,000 hours





Products function introduction:


1) High intensity and can be adjusted, so can meet the request of the customers according the

application environment;
2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light;
3) To pictures and character, have clear, exquisite and real display effect;
4) Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line, you can see at every

angle at this range, no picture change, no color excursion;
5) Can repair each led lamps, so the cost of maintain is lower, and easy to repair.




Products Advantages:


1) Price Advantage: we have the best competitive price at the market;

also have the same even better quality;
2) Performance Advantage: Best Equality, high consistency, Big viewing angle,

can repair each led lamps;
3) Quality advantage: From material to finished product, from design to produce,

we control all steps that are the guarantee of the quality and reliability;
4) Service advantage: Better service at same situation, better cooperation at same service.
