Product Details:
Payment & Shipping Terms:
|
| Usage: | Outdoor | Tube Chip Color:: | Full Color |
|---|---|---|---|
| Display Function: | Video | Pixels:: | 12mm |
| Brightness:: | 6000 To 8000cd/sqm | Protection Level:: | IP65 |
| High Light: | led outdoor advertising board,outdoor led billboards |
||

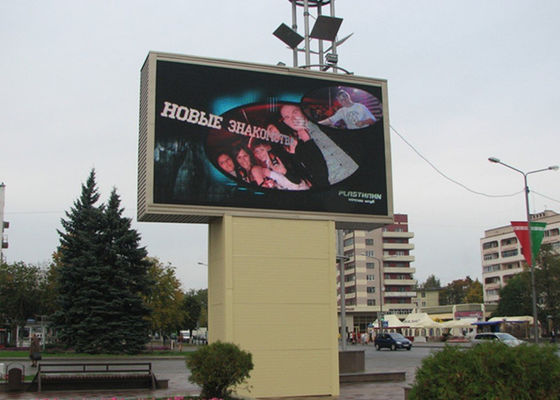

High Resolution Pixel 12mm Ultra Slim outdoor led display board static drive
1. Highcontrast mask design: adopting independent bongrace design,
to avoid hydrops &dust retention, optimize sawtooth surface, enhance diffuse reflection
and improve the contrast of screen.
2. Wide viewing angle: horizontal viewing angle can be up to 120°.
It is still colorful from any angle within 120.
3. Module suite: improve the planeness of the whole screen, and reduce the seam between the neighboring modules.
4. Multi gray display: adopting 16bit gray processing technology to restore the natural image. And using SPWM driving technology to add gray grade, meet the 16bits high gray display requirements with low brightness.
5. Point by point correction: the correction technology of brightness and chromaticity to ensure the uniformity of led screen’s brightness and color.
|
Pixel Pitch |
12mm |
Module size |
192*192mm |
|
Pixel configuration |
1R1G1B |
Module density |
16*16dots |
|
View angel |
120°/90° |
Pixel density |
6,944dots/sqm |
|
LED encapsulation |
DIP 346 |
Refresh Rate |
>=2,000 HZ |
|
Pixel error rate |
<0.00001 |
Certification |
CE,ROHS,FCC,CCC |
|
Cabinet size |
Normal 1152mm x 1152mm Or designed by requirements |
Cabinet material |
Iron steel or Aluminum alloy |
|
Cabinet thickness
|
< 8cm or Designed by requirements |
Cabinet weight With fast lock |
< =58kg/cabinet or Designed by require |
|
Driving Method
|
1/2 scan , constant current |
Max power consumption |
850W/sqm |
|
Brightness |
>8000nit |
Type Power consumption |
300W/sqm |
|
Working voltage |
AC110/220V +- 15% |
Working temp |
-20°C to +60°C |
|
Best viewing distance |
>10m |
Working humidity
|
10% ~ 90% |
|
LED parameters |
R:625±2.5nm, IV:400-500mcd |
MTBF |
>5000hours |
|
G:525±2.5nm, IV:800-2,200mcd |
Gray Level |
>8192 grade per color |
|
|
B:470±2.5nm, IV:350-450mcd |
Lifespan |
>100,000hours |
Advantage:
1. these serial creative products are ectension design from LED ultra slim indoor display
2. slim and light weight cabinet design, minimum t Newest best rental led screen
video hickness is 6cm
3. aluminum alloy material, light weight, only 6kg/pc full color indoor P5 led screen slim led video display
4. hanging structure design, fast installation
5. front maintenance, easy to maintain
Product specification
