Product Details:
Payment & Shipping Terms:
|
| Usage: | Outdoor | Tube Chip Color:: | Full Color |
|---|---|---|---|
| Display Function: | Video | Pixels:: | 8mm |
| Brightness:: | 6000 To 8000cd/sqm | Protection Level:: | IP65 |
| High Light: | outside led screen,outdoor led billboards |
||
High definition Synchronous smd p16 outdoor full color led display Wide View Angle

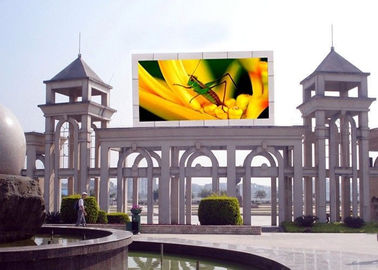

Our Outdoor full color LED display could be used in outdoor environment such as cultural or relax square, commercial walking street, residential sub-district, downtown, etc. Place, with the speciality of dampproof, windproof, sunproof, staticproof, antifreezing, waterproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program, enrich the resident's cultural life, advance the whole visualization of sub-district, etc.
Features
1. By filling the whole of imported silica gel, which makes our products in water, antifreeze, superior high-temperature side
2. After a dustproof and waterproof tested to reach its target IP65
3. All modules are cross color enhancing, and the edge compression is strong, not deformation, the flatness of display cabinet will be better.
4. The box with a sliding iron top, bottom chute, and optional locking device to fine-tune the gap and ensure seamless between the boxes. Please do not squeeze the entire screen which ensure good surface smoothness
5. Measured by the Shenzhen Institute of Quality Inspection Bureau U.S. core companies of the outdoor full color display for temperature impact test, the results showed that: outdoor full color display can use the power normally under the temperature at -25 °C to +75 °C
6. Widely used in advertising, sports, industrial enterprises, transportation, stations, terminals, airports, construction, education system and other public places
Specification Parameter
|
Description |
|
|
|
Unit module |
Module size |
160*160mm |
|
Pixel pitch |
10mm |
|
|
Pixel density |
10000dots/m2 |
|
|
Pixel configuration |
1R1G1B |
|
|
Led specification |
346 |
|
|
Pixel resolution |
W:16dots*H:16dots |
|
|
Cabinet |
Dimension |
960mm*960mm*150mm |
|
Quantities of module |
36pcs |
|
|
Power supply |
4pcs |
|
|
Thermal discharge |
Fan*2pcs |
|
|
Total weight |
50kg |
|
|
Best viewing angle |
10-300m |
|
|
Temperature |
Storage: -35°C~+85°C |
|
|
Working: -35°C~+85°C |
||
|
Thickness |
15cm can adjustable |
|
|
Remarks: cabinet size can changed, upon project need. |
||
|
Power |
Working voltage |
AC220V/110V±10% |
|
Average power consumption |
600W |
|
|
Max. Power consumption |
≤1000W/sqm |
|
|
Current |
≤20mA(single LED) |
|
|
Control system |
CPU |
Pentium4 or above |
|
Operating system |
WIN98/2000/NT/XP |
|
|
Control method |
Synchronization |
|
|
Main technical parameter |
Driving device |
1/4 scanning |
|
Drive type |
Constant Current driver IC |
|
|
Refresh frequency |
≥600Hz |
|
|
Grey scale/colors |
256 levels of each color(R/G/B)/16.7M color |
|
|
Brightness of white balance |
More than 7500cd/sqm |
|
|
Brightness adjustment |
256 levels of each color(R/G/B)by software |
|
|
Video signal |
PAL/NTSC |
|
|
Control system |
DVI display card+full color controller card |
|
|
MTBF |
≥10,000hours |
|
|
Life span |
≥100,000hours |
|
|
Flatness |
Tolerance of interpixel ≤0.3mm |
|
|
Tolerance of modules clearance≤0.6mm |
||
|
Power switch |
Automatic switch |
|
|
Display mode |
1024*768 |
|
|
Communication distance |
Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m. Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10KM |
|
1. Easy installation, can be easily knocks down, can bear the weight,
and can be hanging install more at one time.
2. Size: more options, according the module number
3. Weight: depends on the material and size of the cabinets
4. Material: Aluminum, iron, galvanized board
