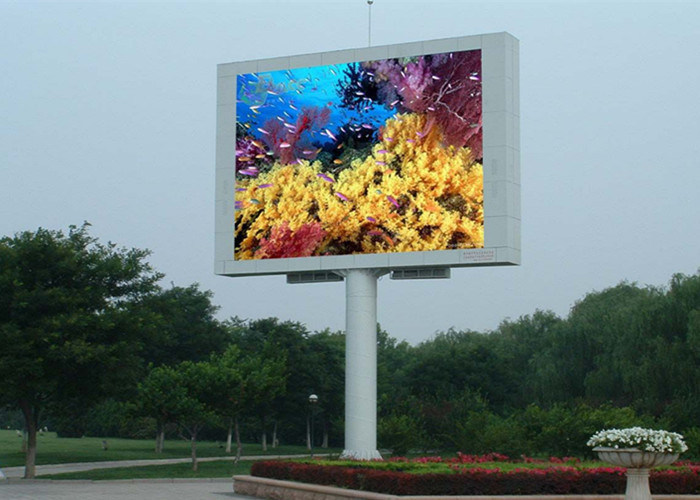

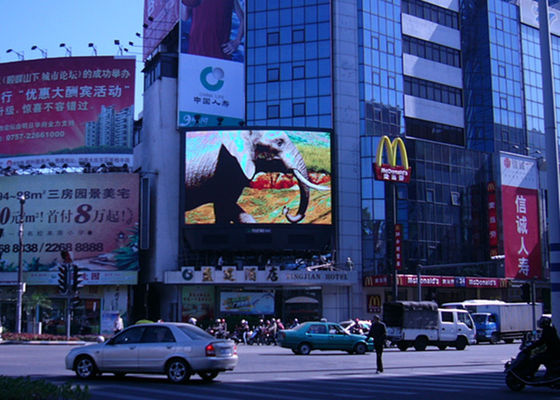

SMD High Definition external led display screen Outdoor P10 led advertising board

SMD High Definition external led display screen Outdoor P10 led advertising board

SMD High Definition external led display screen Outdoor P10 led advertising board
SMD High Definition external led display screen Outdoor P10 led advertising board SMD High Definition external led display screen Outdoor P10 led advertising board

Large Image :  SMD High Definition external led display screen Outdoor P10 led advertising board

Product Details:
Place of Origin: Shenzhen ,China
Brand Name: LanGao
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: LGP10
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm. / 1 piece
Packaging Details: Plywood or Flight Case
Delivery Time: 10-20 days
Payment Terms: T/T, L/C, ,Paypal
Detailed Product Description
Usage: Outdoor Tube Chip Color:: Full Color
Display Function: Video Pixels:: 10mm
Brightness:: 6000 To 8000cd/sqm Protection Level:: IP65
High Light:

outside led screen

,

led outdoor advertising board





SMD High Definition P10 digital large outdoor led display for advertising





1. Function and Technology Character

    (1) Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
    (2) 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.
    (3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
    (4) Line-Double technology is adopted for the picture adjustment.
    (5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.
    (6) Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof.





2.Spec Parameters



PLED-OF-10 Module Parameter

Dimensions(w*h)

160mm*160m

Resolution(W*H)

16×16

Pixel Pitch(mm)

10mm

Pixel Density

10000 Pixels/m2

Pixel Configuration

1R1G1B

Tual Pixel Density



PLED-OF-10 Cabinet Parameter

Dimensions(w*h*d)

960mmx960mmx150mm

Max Power/m2

780W

Physical Resolution(w*h)

96x96

Module Quantity

36

Weight/Cabinet

65kg

Physical Pixels(total)

9216

Average Power/m2

260W

Material

Steel

PLED-OF-10 Display  Parameter

Parameter

Value

Gray Scale

4096

Brightness(calibrating value)

≥7500

Weight

65kg/ m2

Red Wavelength(dominant)

623nm±1.5nm

Colors Capability

30bits

Green Wavelength(dominant)

525nm±1.5nm

Refresh Rate(PAL/NTSC)

1000HZ

Blue Wavelength(dominant)

470nm±1.5nm

Minimum Frame Rate

300HZ

Brightness(max/min)

1.1:1

Drive Type

Constant current drive

View Angle (min, 50% brightness)

Horizontal 160(+80/-80)deg. Vertical 60(+30/-30)

Scan Type

1/4 SCANING

Recommended Min. Viewing Distance

14

Control

Simultaneous with PC,pixel to pixel

Brightness Control

256

Input Voltage

AC220V/50Hertz or AC110V60Hertz

Date Transmission

UTP<100m, Multi-mode Optical Fiber <500m; Single-mode Optical Fiber<5000m

Color Temperature

Brightness of Red, Green and Blue adjustable by the software 100 grade. Color Temperature adjustable according to requirement

Digital Processing

12

Defects Rate

≤0.00001

MTBF

>10,000 hours

Life Span(50% Brightness)

>100,000 hours

Module Brightness Uniformity

<5%

Flatness

±1mm

Ingress Protection

IP65

Ventilation

Quite running fans

Earth Leakage Current

<2mA

Operating Temperature Range

-40degree-- +60degree

Display Input Format(With Video Processor)

DVI, VGA, S-Video, DVD, VCD, VHS.

Operating Humidity Range

10%~99%RH

System Operation Platform

WINDOWS(WIN98, WINXP, WIN2000)









Advantage of led display



1) Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for the environment of wide Horizontal



2) High contrast ,High refresh rate and High brightness that the content on the display remains clearly visible under direct sunlight without any delay, smear phenomenon.



3) The brightness can be adjustable to meet the need of changing requirement of customer in environment



4) Energy saving and environment protection, antistatic, dust-proof, good heat dissipation, cost-effective .



5) High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.



6) Favorable effect: using dot to dot calibration technology makes the image clearer and the layering stronger



7) Steady and reliable system, with strong anti-interference ability and long service life that can continually work for over 24 hours,and it’s easy to operate the system.



8) Convenient installation and maintenance of display modules
