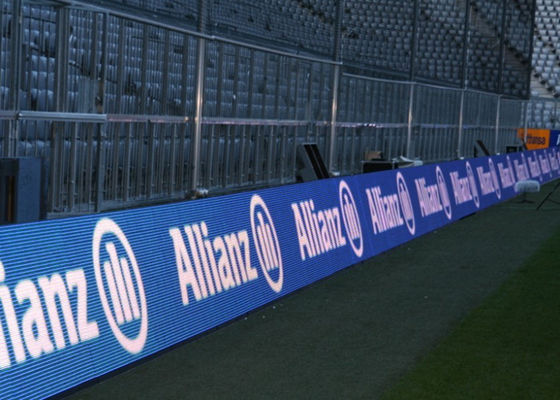

RGB High Definition Electronic display advertising LED Billboards for football perimeter

RGB High Definition Electronic display advertising LED Billboards for football perimeter

RGB High Definition Electronic display advertising LED Billboards for football perimeter
RGB High Definition Electronic display advertising LED Billboards for football perimeter

Large Image :  RGB High Definition Electronic display advertising LED Billboards for football perimeter

Product Details:
Place of Origin: Shenzhen ,China
Brand Name: LanGao
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: LGP16
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm. / 1 piece
Packaging Details: Plywood or Flight Case
Delivery Time: 10-20 days
Payment Terms: T/T ,L/C ,Paypal or
Detailed Product Description
Usage: Outdoor Tube Chip Color: Full Color
Display Function: Video Pixels: 16mm
Brightness: 6000 To 8000cd/sqm Protection Leve: IP65
Led Chip: Epistar/Slian RGB: 2R1G1B / 1R1G1B
High Light:

led advertising billboards

,

led display board for advertising


Electronic p16 outdoor Advertising LED football perimeter display RGB High Definition


p16 outdoor Advertising LED football perimeter display , which is designed and continuously improved by our professional staff,is the most mature led video display  of outdoor product series. IP65 rating outdoor led display board products that deliver high brightness and contrast ratio level with unequalled image quality weigh less,save power and withstand the adverse weather conditions.


Feature :

(1) Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
(2) 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.
(3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
(4) Line-Double technology is adopted for the picture adjustment.



p16 outdoor Advertising LED football perimeter display
 Item  Techinical Specifications
Pixel Pitch16mm
LED ConfigurationDIP346 (1R1G1B)
 Pixel Density   3906pixels/sq.m
Module Size256mm*128mm
Module Resilution16pixel*8pixel
 Cabinet Size  1024mm*1024mm
 Cabinet Resolution  64pixels*64pixels
 Cabinet Material  Iron/Aluminum
 Cabinet weight  50kg/sqm or 40kg/sqm
Brightness8500cd/sqm
Colour temperature3500K-9500K(adjustable)
Viewing AngleH:110°/V:55°
Brightness Uniformity97%
Brightness AdjustmentManual/Auto/Programmable
Ave. Power consumption240 W/sqm
Max. Power consumption800W/sqm
Input VoltageAC220V/50HZ or  AC110V/60HZ (±10%)
Output Voltage5V,40A
Best Viewing Distance16m~200m
Contrast ratio5000:1
Frame rate50/60 Hz/sec
Refresh rate1200Hz
Grey scale levelsR(256bit) x G(256bit) x B(256bit)
Display ColorsR(1024) x G(1024) x B(1024)
Protection LevelIP65
Life-span 100,000 hours
MTBF10,000 hours
Malfunction dot rate< 0.0001
Storage Temp/Humidity-30~+60/10~90%RH
Operating Temp/Humidity-20~+50/10~90%RH
 Drive Mode  Static contant current
 Control System  Synchronous/Asynchronous/Wifi/3G Wireless for choice
 Input Signal  RF,TV,RGB,S-VIDEO,PAL,DVI,HDMI,VGA,SDI,AVI,RGBHV,CVBS,etc
 PC Operating System  Microsoft Windows 7, 8, 98, 2000, XP and Vista


1. Weather resistance:
IP65 rating delivers best waterproof effect that ensures our product's stable broadcasting in harshest weather condition.

2. World-class image quality:
Strict system control and pixel to pixel correction make the image smooth and uniformity.

3. System flexibility:
Able to show a variety of content of video, animation, graphic and so on.

4. Service facility:
Modular design makes module individual and can fix easily without affecting others
