IP67 Energy Saving P16 outdoor advertising led display Road Side with High Contrast

IP67 Energy Saving P16 outdoor advertising led display Road Side with High Contrast

IP67 Energy Saving P16 outdoor advertising led display Road Side with High Contrast
IP67 Energy Saving P16 outdoor advertising led display Road Side with High Contrast IP67 Energy Saving P16 outdoor advertising led display Road Side with High Contrast

Large Image :  IP67 Energy Saving P16 outdoor advertising led display Road Side with High Contrast

Product Details:
Place of Origin: Shenzhen ,China
Brand Name: LanGao
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: LGP16
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm. / 1 piece
Packaging Details: Plywood or Flight Case
Delivery Time: 10-20 days
Payment Terms: T/T, L/C, ,Paypal
Detailed Product Description
Usage: Outdoor Tube Chip Color:: Full Color
Display Function: Video Pixels:: 16mm
Brightness:: 6000 To 8000cd/sqm Protection Level:: IP65
High Light:

outside led screen

,

outdoor led billboards

IP67 Energy Saving P16 DIP 2R1G1B outdoor advertising led display Road Side with High Contrast

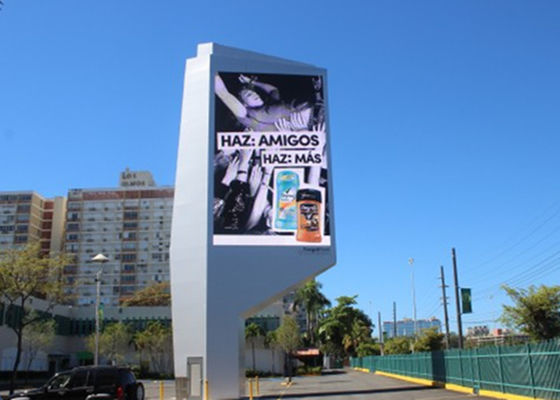

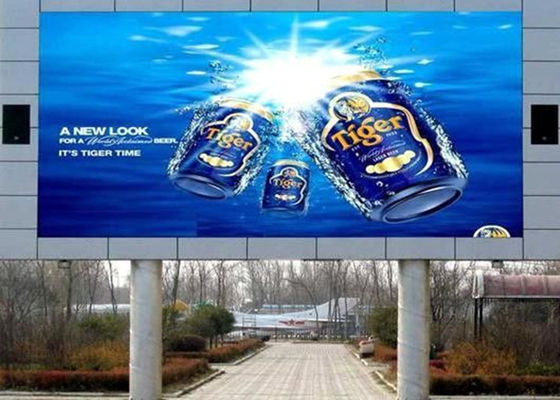

The p16 outdoor LED Display of LED Solution use state-of-art DIP LEDs, which has the brightness 6000 to 8000nit. The LED display has the advantage of excellent flatness, super uniform color, brightness and long viewing distance. it is  widely used on street, building, supermarket, entertainment place, and sports field, live show stage, meeting room, airport, hotel and many other places for advertising and other usage.



Features of the outdoor LED Display:
*Weatherproof to IP65 standards
*High resolution images and long lifetime
*Easily configured for various size and aspect ratios
*Wide viewing angle
*Brightness from 6000 nits onwards





Specifications of outdoor P16 led display:



model

P16









Pixel unit module

Pixel pitch

16mm

Pixel density

3906dots/m²

Pixel configuration

1R1G1B or 2R1G1B

LED type

DIP346 or DIP 546

Module size

256*256mm or 320*320mm

LED parameters

R:625nm±5.0nm

IV:400-500mcd

R:52nm±2.5nm

IV:1,800-2,200mcd

R:470nm±2.5nm

IV:350mcd-450mcd





Pixel unit screen

Screen size

based on customer need (mm)

Module resolution

16*18dots or 20*20dots

Cabinet structure

Water-proof

Screen material

Iron or aluminum

Protect degree

IP65





Display parameters

Viewing distance

>14m

Brightness

>7000nit

Power consumption

Max power consumption

1000w/m²

Average power

350w/m²

Driving IC

static, constant current

Refresh rate

≥3000HZ

Viewing angel

120°/90°

System working voltage

AC 110/220V











Other parameter

Working temp

-20°C to +60°C

Working humidity

10% ~ 90%

MTBF

>5,000hous

Gray level

RGB/8192/14bit

Life span

>100,000hours

Signal input

RF,S-VIDEO,RGB,RGBTV,YUT,YC,COMPISITION

Control   system

Sending card + Receiving card + Hub card +PCTV Non-liner card + Muti-funcational card(Optional) + Video processor(Optional) + Fiber Transmitter (Optional)

Color temperature/contrast

Brightness and contrast of red, green and blue   can be adjusted by software.

Image processing

Video denoising, rapid motion compensation, edge sharpening, edge smoothing

Color coordinate conversation & control, grey scale transformation etc

Feature:

1. Enhanced image quality. Incorporating BENE cutting edge technology LED displays ensure perfect video and graphics performance with great color depth and uniformity across the entire surface of the screen.



2. Wide viewing angle. Perfect BENE design and high quality LEDs provide a viewing angle of more than 120° (min. 50% brightness).



3. Full protection and reliability. BENE outdoor video displays are fully protected from water and dust in accordance with IP65 classification.



IP67 Energy Saving P16 outdoor advertising led display Road Side with High Contrast 0
