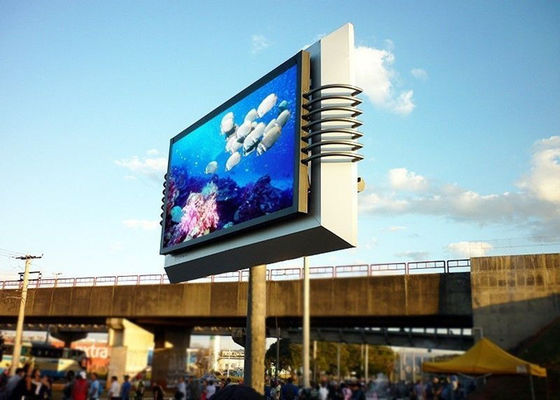

High brightness LED display 8000CD P14 Advertising LED Screen Waterproof 2R1G1B

High brightness LED display 8000CD P14 Advertising LED Screen Waterproof 2R1G1B

High brightness LED display 8000CD P14  Advertising LED Screen Waterproof 2R1G1B
High brightness LED display 8000CD P14  Advertising LED Screen Waterproof 2R1G1B

Large Image :  High brightness LED display 8000CD P14 Advertising LED Screen Waterproof 2R1G1B

Product Details:
Place of Origin: Shenzhen ,China
Brand Name: LanGao
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: LGP14
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm. / 1 piece
Packaging Details: Plywood or Flight Case
Delivery Time: 10-20 days
Payment Terms: T/T ,L/C ,Paypal or
Detailed Product Description
Usage: Outdoor Tube Chip Color: Full Color
Display Function: Video Pixels: 14mm
Brightness: 6000 To 8000cd/sqm Protection Leve: IP65
Led Chip: Epistar/Slian RGB: 2R1G1B / 1R1G1B
High Light:

led screen advertising

,

led advertising billboards



High brightness 8000CD P14 digital traffic Advertising LED Display Waterproof 2R1G1B



We are the professional and famous Manufacturer of LED Display in Shenzhen, China. We have exported to North America, Europe, South America, Middle East, Central Asia and many other areas of the world.



2. Application of led screen:



The indoor and outdoor LED screens are widely used on street, building, supermarket, entertainment place, sports field, live show stage, meeting room, airport, hotel and many other places for advertising and other usage.





(1) High brightness reach to 8000CD.

(2) High Refresh Rate reach to 5000Hz or more

(3) Long lifespan and stable quality

(4) Aluminum Material

(5) Working under the temperature -30C to +75C

(6) Save 35% power than normal screens





Serial Number  Specification PH14
    1 Pitch 14mm
    2 Module Resolution 16×8=128 (dot)
    3 Module Size 224mm ×112mm
    4 Module Quantity/cabinet 24(Pcs)
    5 Cabinet Size 896mm×672mm
    6 Resolution/cabinet  64×48(dot)
    7 Density 5102(dot/s.q.m)
    8 LED Driving method Constant driving / 1/2 Scan
    9 LED Standard DIP546
   10 Viewing Angle (H/V) H:100±5°V:45°
   11 Brightness ≥7000CD/s.q.m
   12 The Optimal viewing distance 15-200m
   13 Display Colors 687(million)
   14 Pixel configuration 1R1G1B
   15 Protection Degree 65(IP)
   16 Power (Max.Consumption): True pixels:1000 W/s.q.m
(Average Power): True pixels:450 W/s.q.m
   17 Control mode Video Sync
   18 Display Mode (Max)1024×768/1280×1024
   19 LED Parametres (R):λd (619~624nm)IV: (460~510mcd)
(G):λd (520~524.5nm)IV: (2000~2300mcd)
(B):λd (468.5~472.5nm)IV:(490~540mcd)
   20 Rate ≥300Hz
   21 Communication 1000M Cats(≤120M)/Fiber optical (10.000m)



 Advantage :



    (1) Adanced digital techonlody for vedio.
    (2) Distributing scanning method and modularity in designs.
    (3) Constant static driving method and the brightness can be adjusted by itself.
    (4) Super brightness and pure pixels
    (5) Clear pictures with distortion and doubble images.
    (6) Can show vedio, cartoon, graph, letters, pictures and so on.
    (7) Can be controlled by Lan remotely.
