DIP RGB LED Screen Advertising p16 Outdoor Full color LED display dustproof

DIP RGB LED Screen Advertising p16 Outdoor Full color LED display dustproof

DIP RGB LED Screen Advertising p16 Outdoor Full color LED display dustproof
DIP RGB LED Screen Advertising p16 Outdoor Full color LED display dustproof

Large Image :  DIP RGB LED Screen Advertising p16 Outdoor Full color LED display dustproof

Product Details:
Place of Origin: Shenzhen ,China
Brand Name: LanGao
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: LGP16
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm. / 1 piece
Packaging Details: Plywood or Flight Case
Delivery Time: 10-20 days
Payment Terms: T/T ,L/C ,Paypal or
Detailed Product Description
Usage: Outdoor Tube Chip Color: Full Color
Display Function: Video Pixels: 16mm
Brightness: 6000 To 8000cd/sqm Protection Leve: IP65
Led Chip: Epistar/Slian RGB: 2R1G1B / 1R1G1B
High Light:

led screen advertising

,

led display board for advertising

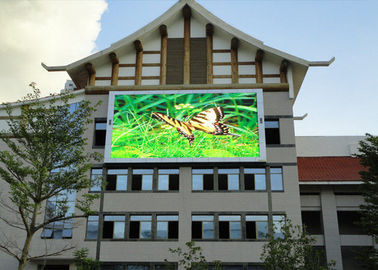

DIP Full color airports p16 outdoor Advertising LED Display screen dustproof



Our p16 outdoor Advertising LED Displayis manufactured in a waterproof and dustproof design so it can work very well in rain and sunshine. It can be assembled and disassembled very easy, and it is an ideal product for any kind advertisements.



1. New mask design makes LED light almost zero reflection, which ensures the screen displaying effect;

2. The cabinet of unit modules adopts to high-temperature spraying technology, the antirust function is greatly improved;



3. Module surface flatness ± 0.2mm, the entire screen has good flatness;

4.High uniformity display color;



5. For improving the service life, PCB is made by wave soldering process with the green oxygen isolation layer, which prevents the line of moisture and oxidation.



6. Service efficiency of the screen switch power supply is increased substantially, which reduces power failure rate;



Specification



Technical DataModel PH16
Pixel Pitch 16mm
Physical Density(pixels/m²) 3906
LED Shape & Size 3mm Oval Lamp
LED Arrangement 2R1G1B
Module Size(mm) 256×128
Module Resolution 16×8
Drive Mode Static Constant Current
Brightness(cd/m²) ≥6000
Contrast ≥2000:1
View Angle, 50% Brightness 110°/50°
Minimum View Distance 16m
Grey Scale 10bits/1024levels
Color Capacity 1.07billion
Maximum Power Consumption 900W/m²
Ave.Power Consumption 450W/m²
Operation Power Source AC90-260V 50-60HZ
Frame Frequency 60-85HZ
Refresh Rate 240-1000HZ
Brightness Adjustment 0-100% 8 levels automatic
Gamma Correction -5.0-5.0
Correction Scale Level 16bits
Color Temperature 5000-9300K
Brightness Correction Pixels, Module, Cabinet Correction
Input Source Support Composite, S-Video,Component,VGA,DVI,HDMI,SDI, HD_SDI
Control Distance UTP CAT5E:100m;Multi-mode Fiber:500m;Single-mode Fiber:10km
Operating Temperature -40°C - 65°C
Operating Humidity 10-90%RH
Operating Life Span 100,000Hours
MTBF 5000 Hours
Protection Ratings IP65(Front Side),IP54(Back Side)
Out of Control Rate 0.01%



Advantage :



1) With good lightening accordance and no mosaic
2) Can play different formats of image files, flash, WAV/MIDI, video signal from
TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image
can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement
of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect.
