100,000 Hours P8 Full Color Outdoor LED Display Board Low Power Waterproof

100,000 Hours P8 Full Color Outdoor LED Display Board Low Power Waterproof

100,000 Hours P8 Full Color Outdoor LED Display Board Low Power Waterproof
100,000 Hours P8 Full Color Outdoor LED Display Board Low Power Waterproof 100,000 Hours P8 Full Color Outdoor LED Display Board Low Power Waterproof 100,000 Hours P8 Full Color Outdoor LED Display Board Low Power Waterproof

Large Image :  100,000 Hours P8 Full Color Outdoor LED Display Board Low Power Waterproof

Product Details:
Place of Origin: Shenzhen ,China
Brand Name: LanGao
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: LGP8
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm. / 1 piece
Packaging Details: Plywood or Flight Case
Delivery Time: 10-20 days
Payment Terms: T/T, L/C, ,Paypal
Detailed Product Description
High Light:

outside led screen

,

outdoor led billboards





P8 Full Color Outdoor LED Display Board  Low Power Waterproof





Famous Brands Raw Material Selection



1) LED: well-known international brand, with wide viewing angle, high brightness, little attenuation, good heat dissipation, and vivid colors.



2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable the defective phenomena, such as dark bright, virtual light and so on.



3) Power supply: industrial-strength brand. The power t maximum power reserve of 20% the space, the range of voltage fluctuation is less 5%, high stability.



4) Connector: Aerial grade brands ensure the stable transmission of power and signal.



5) PCB Board: adopt 4-layer design.



6) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person. The replacement of any cabinet can be done within 50 seconds.





Specification:



Pixel Pitch

8mm

Pixel composing

1R1G1B

Density

15,625dots/m2

module resolution

32 dots* 16 dots

Module size

256mm * 128mm





P8 SMD led display board parameters:



Pixel

8mm

Short circuit protection

Yes

Standard cabinet size

1024mm*1024mm or design

Refresh

400 Hz

Weight per sqm

40Kg/sqm

Changing frame frequency

50Hz / 60 Hz

Whiteness brightness

1300 cd/sqm

Driving method

Constant driving ,1/8scan

Led package

SMD 3in1

Working Environment

Indoor

Wave Angle (H)

120°(H)/90°(V)

Working temperature

-10~50

Best view distance

≥8m

Working Humidity

-10~90%

Working voltage

AC 220v/380v±10%50~60Hz

Out of control

1/10,000 ( scattered)

Power consumption/ m2

300W/sqm

lifetime

100,000 hours





Features of p8 outdoor led display board:



1. Can show information in different ways.

2. Using real pixels not virtual pixel,better viewing effect for text,graphic and other information.

3. Multiple design components to meet customer applications and the needs of the environment changes.

4. Uniformity is good, and it has very good consistency luminescence.

5. Could be remote control network.

6. The computer can display the broadcast advertising contents that was divided into sessions and

rolling cycle to reduce the cost of advertising.

7. Can show the bright text advertising day and night by scrolling to save the time and space.



picture show:

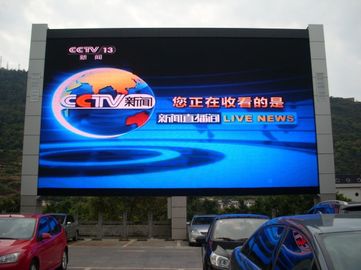

100,000 Hours P8 Full Color Outdoor LED Display Board Low Power Waterproof 0

100,000 Hours P8 Full Color Outdoor LED Display Board Low Power Waterproof 1
