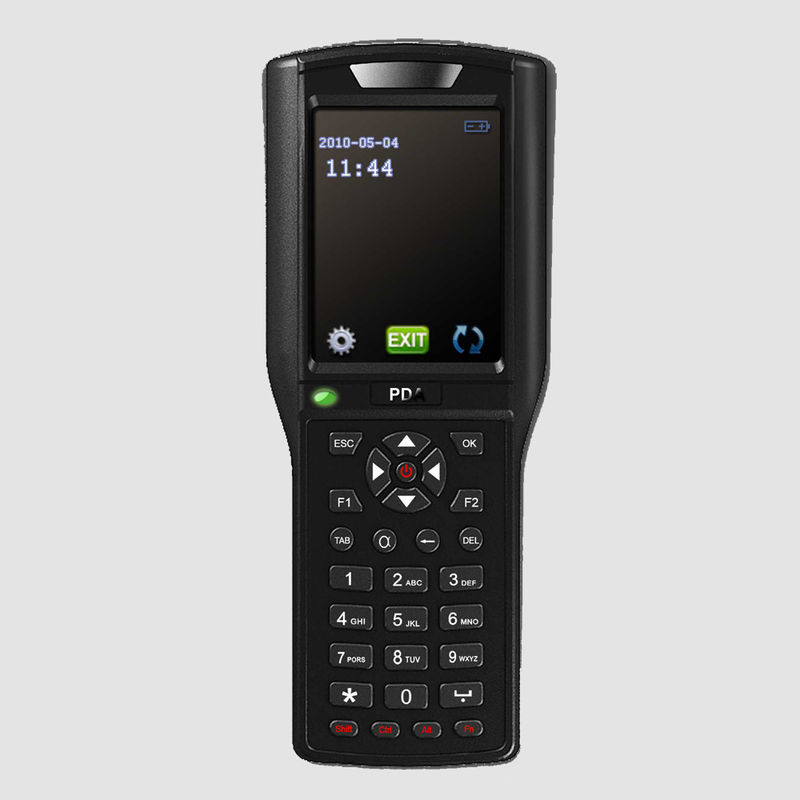

F8 mobile pos terminal

F8 mobile pos terminal, a new type wireless data acquisition product, launched by Shenzhen FongWah Technology Co.,Ltd; embedded design, with low power consumption,Large-capacity battery can provide more than ten hours of continuous efficient work, more than one hundred hours standby. Easy hand-held size, can minimize the users fatigue. To adapt to harsh weather environmental applications, To meet the mobile workers’ indoor and outdoor using in any environment, Facilitate more efficient and accurate data collection.
General secondary development platform, with the wince5.0 operating system, a unique 32-bit embedded operating system kernel and programming tools,and also supports GPRS, WI -FI, RFID, read-write contactless IC card, one-dimensional laser scanning and support the second developement,free SDK provided,support the EVC/EVB/VS2003 language.
provided an open, friendly secondary development platform for users, and also provides advanced maintenance and management capabilities, greatly improved application maintenance and development efficiency, ensure the stability of applications. the perfect after-sales service system, greatly facilitate the customers application.
F8 Handheld POS Terminal:
1.Wince5.0 operating system,32-bit ARM9 processor.
2.Frequency:266MHZ
3.memory with 64MB flash+64MB SDRAM
4.RF Card reader: Support contactless cards( ISO14443TYPE A / /B & ISO 15693),contact cards(ISO7816).
5.Dual Operating modes: PC-linked / standalone
6.GPRS, WIFI wireless communication, One GSM11.11 Standard card slot(read & write T=0,1 CPU card)
7.1D barcode scanner.
8.In-built TCP-IP Interface
9.In-built SD card slot
10.USB interface,Serial RS232&TCP/IP
11.power in and battery:DC5v/Adapter
12.TFT-LCD touch screen: 3.5 inch color touch screen, 320*240 Pixel
13. LI-on battery Rechargeable battery
14; Battery: 1800mAh lithium battery, running more than 10 hours, standby 100 hours, and fast charge
15:Press key: 29 keys, keyboard with backlight
16:Dimensions: 198mm X 78mm X 30mm
