Product Details:
Payment & Shipping Terms:
|
| Pixel: | 640x480 | Screen Format: | 4:3 |
|---|---|---|---|
| Screen Size: | 6.5 Inch | Application: | Advertising, POS, Outdoor |
| Feature: | HD | Input Signal: | VGA |
| Panel Type: | TFT | Product Name: | Industrial LCD Touch Screen Monitor |
| High Light: | TFT LCD monitor,HD LCD monitor |
||

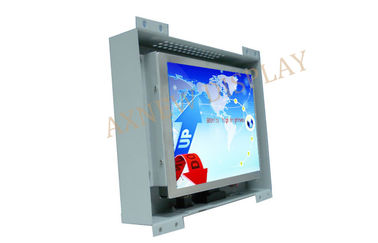

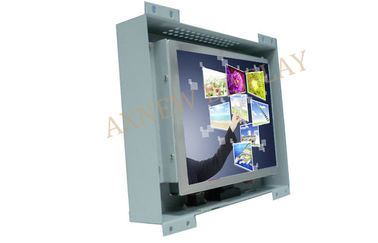

6.5" Color TFT Industrial LCD Touch Screen Monitor Sunlight Readable For digital signage
6.5 inch high brightness industrial LCD touch screen monitor with VGA input ( No touch) open frame with rugged mount design. 4 wire resistive touch screen lcd Sunlight readable 800nits for outdoors application, such as Automatic equipments, Gas station, advertising embedded system etc
Quick Details:
|
Model: AXD-06OPN1P1-T1 |
Screen Size:6.5’’ |
|
Screen format: 4:3 |
Display Resolution(pixel):640x480 |
|
Contrast Ratio:500:1 |
Brightness:800cd/m^2 |
|
Storage temperature : -20℃~70℃ |
Input signal: VGA |
|
Power Input: DC 12V Touch Type: Resistive touch |
Product status: Stock |
Features and Advantages
1.New and Industrial A grade perfect panels with stable supply
2. industrial control board supports the displays working 24 hours
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment
4. Industrial design to protect the LCD screen, mounting on the outdoor application
5. VGA interfaces ;USB touch screen
6. 6.5 inch Industrial touch LCD monitor for Gas application control and industrial terminals etc
7. Low consumption with high brightness 800nits.
|
Display Specifications |
|
|
Display |
6.5" Color TFT Open Frame with touch screen |
|
Model Name |
AXD-06OPN1P1-T1 |
|
Active Display Area (mm) |
132.48 (H)x99.36(V) |
|
Pixel Pitch (mm) |
0.207(H)x0.207(V) |
|
Resolution (Pixel) |
VGA (640X480);16.2M colors |
|
Brightness (CD/m^2) |
800/m^2 |
|
Contrast Ratio |
500:1 |
|
Viewing Angle (CR >=10) |
140/120 |
|
Power consumption |
6.32 W typical, normal operation |
|
Touch Screen |
Resistive touch screen |
|
OSD Control |
On the back side |
|
I/O Connectors |
1x12v,1XVGA |
|
Power Input |
DC 12V,4A 48W |
|

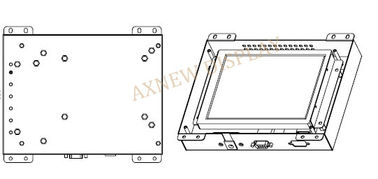

Mechanical Specifications |
|
|
Construction |
steel chassis & Galvanized Color |
|
Dimensions |
199.5x 150.0x 33.5 (mm) |
|
Mounting |
Edge fixing installation |
|
Power source |
AC 100~240V/ 12V DC-4A |
|
Environment Specifications |
|
|
Operating Temperature |
-10~60℃ |
|
Storage Temperature |
-20~70℃ |
|
Rating |
Facilitate installation of the demolition, solid portfolio |
|
Ordering Information |
6.5” LCD with touch Monitor VGA input and power adapter |
