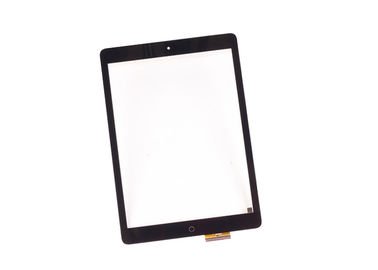

9.7" POS Touch Screen GT9271 GG Structure Touch Panel For POS Machine

9.7" POS Touch Screen GT9271 GG Structure Touch Panel for POS Machine

Quick Detail:

1. GG Structure: Cover Glass + LOCA + ITO Glass + FPC
2. Size: 9.7 inch
3. IC Model: GT9271
4. Sensor Process: Printing + Photo Etching (DITO)

Touch Panel Specification:

Main Structure:

■ GG structure
GG structure is cover glass plus sensor glass technology solution, with high transmittance, good effect of protecting scratch and also harder than PG structure.

■ PG structure
PG structure uses one PET film plus sensor glass solution. Mature process technology greatly reduces the

 failure rate and cost. It has the same level weight with OGS structure.

■ OGS structure
OGS is one glass solution, directly form ITO conducting film in the protective glass and use the sensor

technology. It has the advantage of the simple structure, light, thin and good transmitting etc.


Main Material:

IC: from Taiwan, America etc.
Film: from Japan, Korea etc.
Glass: from Japan, America, Germany etc.


Environment Condition:



 Electric Characteristics:


Mechanical Characteristics:




Reliability Condition:



Assembly Precautions:


1. Do not exert extra force to touch panel.
2. Since touch panel is transparent and clear, make sure to wear fingerstall or glove before touching.
3. Be careful of your hands and other parts from injury at handling by glass corners.
4. When handling, make sure to hold the touch panel borders not center parts to avoid dirt to touch
5. panel. Do not lift touch panel by tail to avoid tail loosen.
6. When installing and assembling, do not lift tail with heavy force to avoid tail peeling off touch panel.
7. Do not stick or mount other parts on the tail, such as additional film or metal plate. As it will exert
8. extra force to tail tip and cause tail loosen.
9. Please don't pull FPC with force from side to side, because the FPC tension will make FPC burst.
10. If there is air groove on touch panel, when design product structure, make sure no liquid and powder
11. near the air groove.
12. In order to avoid heavy stress to touch panel surface, make sure to keep 0.2mm-0.5mm assembling
13. gap between touch panel and case.
