Product Details:
Payment & Shipping Terms:
|
| CPU: | MT6572 Cortex-A7 ,Dual Core,1.3GHz | Memory: | RAM 1GB,ROM 4GB |
|---|---|---|---|
| Display: | 7 Inch TFT Capacitive Touch Screen,1024*600 | OS: | Android 4.2 |
| WiFi: | IEEE 802.11n | Printer: | 58mm Thermal Printer |
| High Light: | Point Of Sale Devices,Wireless Payment Terminal |
||

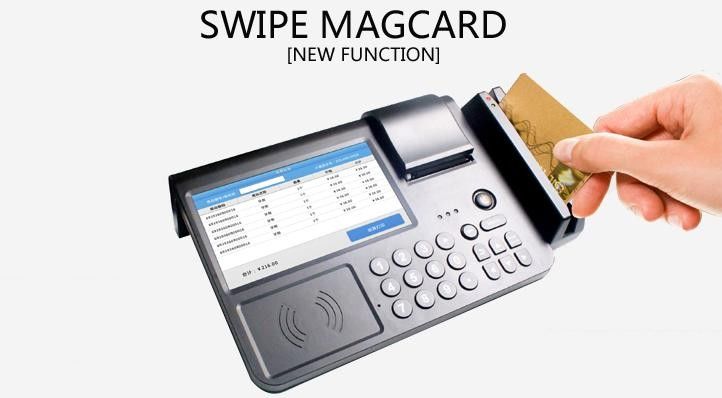

7 inch Touch Screen Android POS Terminal with Printer , 3G , WiFi , NFC
Features
1. 58mm thermal printer.
2. Support NFC,13.56MHz, ISO14443A,ISO14443B,ISO 15693,MIFARE write/read mode.
3. 2.0MP camera,support 1D/2D barcode scanning.
4. Support 3G,WiFi,PSAM encryption,SIM card,Micro Card.
5. USB,Mini USB,RS232,RJ45,RJ11,HDMI interface,can connect cash drawer,barcode scanner,display,etc.
6. Support secondary development(SDK).
Application
PC701 widely used in supermarket POS, hotels,Tourist system,movie tickets,mobile top up, Prepaid Recharge ,
business
offices, logistics tracking, mobile electronic payments, business data processing,inventory management, etc.
Specification
|
CPU |
Model |
MT6572 Cortex-A7 ,Dual core |
|
|
Frequency |
1.3GHz |
||
|
Built-in memory |
Memory DDR2 |
1GB |
|
|
NAND Flash |
4GB |
||
|
OS |
Android 4.2 |
||
|
Display |
Screen Size |
7 inch color TFT LCD screen |
|
|
Touch |
Capacitive touch screen |
||
|
Resolution |
1024*600 |
||
|
Language |
Chinese and English (android support multi-language) |
||
|
Hardware Function |
Printer |
Support 58mm thermal printer |
|
|
Camera |
2.0 million pixels/ supporting barcode/Qrcode scanner |
||
|
WIFI |
IEEE 802.11n |
||
|
3G |
Support China Uniom,mobile,telecom 3G network(CDMA or WCDMA) |
||
|
Bluetooth |
Bluetooth 4.0 |
||
|
NFC |
13.56MHz,support ISO14443A,ISO14443B,ISO15693,MIFARE write/read mode |
||
|
SIM |
SIM card Data read and write |
||
|
PSAM encryption |
Supporting ISO7816 IC card write and read |
||
|
Speaker |
External speaker audio output |
||
|
Interface |
RJ45 |
A RJ45 with network Interface |
|
|
USB interface |
2 USB Device 2.0 interface |
||
|
TF card |
A TF Card slot,max 32GB |
||
|
Button |
Number buttons |
0-9 Number buttons and related function keys |
|
|
Reset button |
A reset button |
||
|
Power |
Power Interface |
DC-9V 3A Power supply |
|
|
Battery |
1 built-in 4400mAh lithium battery |
||
|
Packing |
Product Size:265*225*100mm |
||
|
Packing size:350*260*160mm |
|||
|
N.W:1.16kg |
|||
|
G.W:1.84kg |
|||
|
Payment |
T/T and WU |
||
|
Delivery Port |
FOB Shenzhen |
||
|
Warranty |
One year |
||
