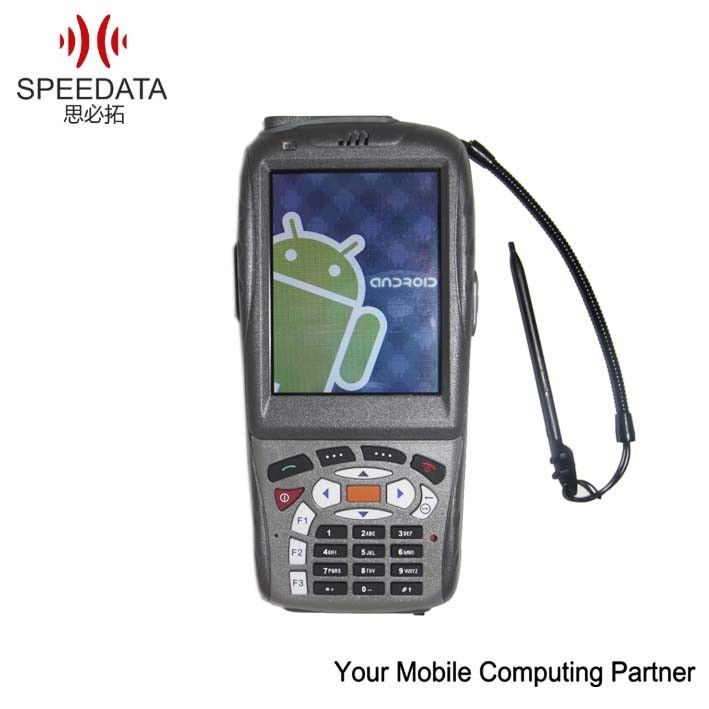

3.2 Inch PDA GPS Mobile POS Terminals With DGPS Tracking
Quick Detail:
1. windows mobile 6./ android 2.3 OS/ WinCE
2. 3.2 inch Transflective screen VGA TFT LCD
3. small and convenient
Speedata MT32 Series:
1. Support :1D/2D Barcode scanner/ Low-cost Data Collector devices/ IP54 Interface:USB HOST/RS232/IIC (customized)
2. Multi-language/ functions industrial pda
3. DGPS tracking
Competitive Advantages :
1. SDK Free;
2. Own r&d team and technical personnel;
3. Excellent after-sales service and technical support;
Data sheet
|
Core board |
||||
|
WM6.1/6.5 OS |
yes |
Marvell PXA310(624MHz)+qualcomm (GSM band 900/1800/1900MHz, GPRS, EDGE/WCDMA 2100MHz HSDPA 3.6Mbps) |
||
|
Win CE 6.0 OS |
option 2 |
Marvell PXA300(No communication module) |
||
|
Android OS |
option 3 |
Marvell PXA910(806MHz)+qualcomm |
||
|
Memory |
Flash ROM |
512MB |
||
|
RAM |
256MB DDR |
|||
|
Extend Slot |
Micro SD 16G (SDHC) |
|||
|
Motherboard |
||||
|
Display |
3.2inch TFT LCD (Transflective screen QVGA) |
|||
|
touch screen |
4-wire resistive |
|||
|
Form Factor |
Bar type classical Pocket PC,Industrial appearance |
|||
|
GPS |
Qualcomm chipset (WM OS) |
|||
|
UBLOX module (Android OS ) |
||||
|
Bluetooth |
Bluetooth SIG version 2.0 compliant; Supported profiles: headset, hands-free, object push, serial port, dial-up network |
|||
|
WiFi |
WiFi (802.11 b/g) |
|||
|
DGPS |
option 1 |
ublox lea- 6N |
||
|
option 2 |
ublox lea- 6T |
|||
|
RFID Reader |
option 1 |
HF RFID(13.56MHz ISO 14443A/B) |
||
|
option 2 |
HF RFID(13.56MHz ISO 1443A/B ISO 15693) |
|||
|
barcode scanner |
option 1 |
NEWLAND:EM1300(1D Infrared barcode reader) |
||
|
option 2 |
NEWLAND:EM3000(1D/2D barcode reader) |
|||
|
option 3 |
symbol:SE955(1D laser barcode reader) |
|||
|
option 4 |
HoneyWell:N4313 (1D laser barcode reader) |
|||
|
option 5 |
Honeywell:5100(1D/2D barcode reader) |
|||
|
option 6 |
symbol se4500(1D&2D barcode reader) |
|||
|
External Interface |
USB HOST/RS232(Customized) |
|||
|
Protection class |
IP54 |
|||
|
Drop resistance level |
1.5m |
|||
|
Camera Function |
Camera |
5MP AF |
||
|
Video |
Support still image and video capture |
|||
|
Keypad |
Front |
30keys |
||
|
Side |
4keys |
|||
|
Interface |
Mini-USB connector |
USB2.0 connection |
||
|
SIM card slot |
Yes |
|||
|
PSAM card slot |
option |
|||
|
TF card slot |
Yes |
|||
|
power jack |
Yes |
|||
|
Audio Jack |
Yes |
|||
Accessories:
Rechargeable Li-ion battery 3600mAh Standard
Packaging: Main Unit*1pc, Charger*1pc, USB Cable*1pc, battery*1pc, Case*1pc, Strap*1pc
