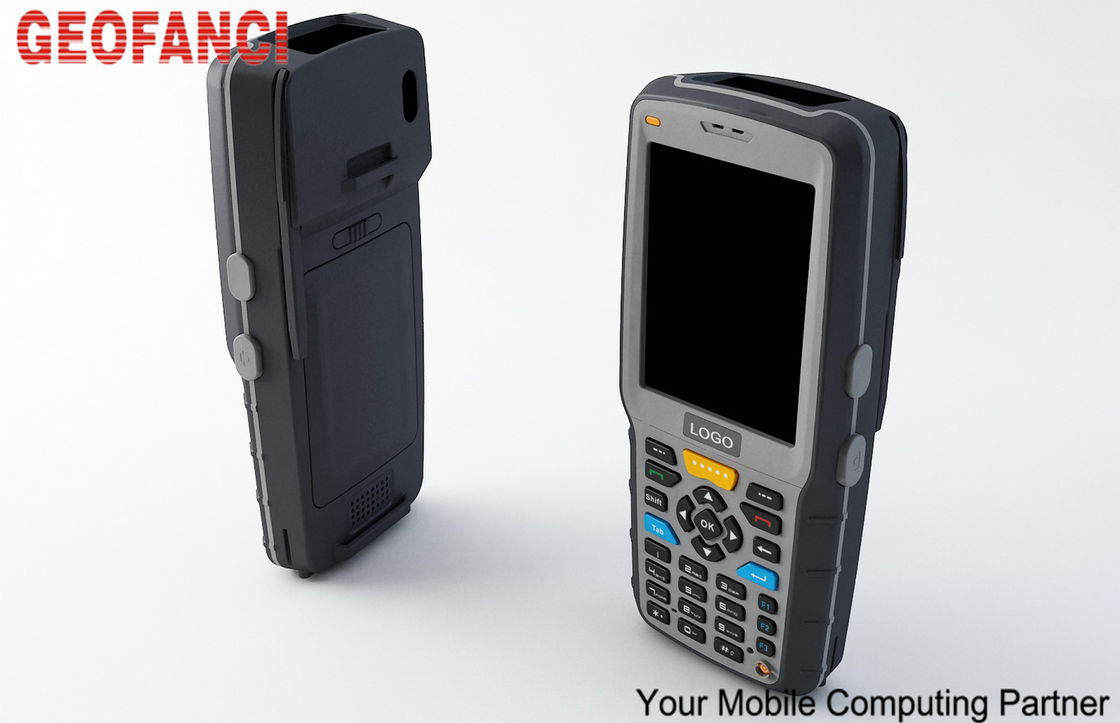

Marvell 806MHz Wireless Windows With HF / UHF RFID 3.5inch Mobile POS Terminals

Hardware

Core board

WM6.1/6.5 OS

option1

Marvell PXA310(624MHz)+qualcomm (GSM Quad-band 850/900/
1800 /1900MHz, GPRS, EDGE/WCDMA 850/1900/2100MHz
HSDPA 3.6Mbps)

WM6.1/6.5 OS

option2

Marvell PXA310(624MHz)+qualcomm EVDO (800MHz, CDMA 1X,
EVDO)

WM CE

option 3

Marvell PXA300(No communication module.)

android OS

option 4

Marvell PXA910 806MHz(GSM Quad-band 850/900/1800/

1900MHz, GPRS,
EDGE/WCDMA 850/1900/2100MHz HSDPA 3.6Mbps)

Memory

Flash ROM

256MB (PXA910  ROM:512MB)

RAM

256MB DDR (PXA910  ROM:512MB)

Extend Slot

Micro SD 16G (SDHC)

Motherboard

Display

3.5inch TFT LCD (Transflective screen VGA)

Form Factor

Bar type classical Pocket PC, Industrial appearance

GPS

option 1

Ublox The 5th Generation

option 2

DGPS

Bluetooth

Bluetooth SIG version 2.0 compliant; Supported profiles: headset,

hands-free, object push, serial port, dial-up network

WiFi

WiFi (802.11 b/g)

RFID

option 1

HF RFID(13.56MHz ISO 14443A/B)

option 2

UHF RFID

barcode scanner

option 1

NEWLAND:EM1300(1D barcode reader)

option 2

NEWLAND:EM3000(2D barcode reader)

option 3

symbol:SE955(1D barcode reader)

option 4

Honeywell:5100(1D/2D barcode reader)

Other sensors

Fingerprint

option 1

light sensor

option 2

Compass

option 3

Three-axis gyroscope

option 4

Pressure, temperature and altitude sensors

option 5

MS5803-01BA/6.4*6.2*2.88mm

acceleration transduce

option 6

External Interface

USB HOST/RS232/SPI/IIC

Protection class

IP54

Drop resistance level

1.8m

Camera Function

Camera

5.0 Mega CMOS

Video

Support still image and video capture

Keypad

Front

Side

Interface

Mini-USB connector

USB2.0 connection and power charging

SIM card slot

Yes

PSAM card slot

option

TF card slot

Yes

power jack

Yes

Audio Jack

no

Battery

Type

rechargeable Li-ion battery 3000mAh

Standby Time

500hours

Calls Time

Up to 6hours

Charging Time

4 hours

Physical Characteristics

Dimension

?

Weight

TBC

jacket

magnetic card

option

1/2/3track, bi-directional, SPI encryption magnetic head

IC card readers

option

EMV Level 1&2, PBOC level 1&2 approval, China UnionPay
approved, PCI

printer

option

58mm Thermal Type

Battery

2500mAh, 7.4v
