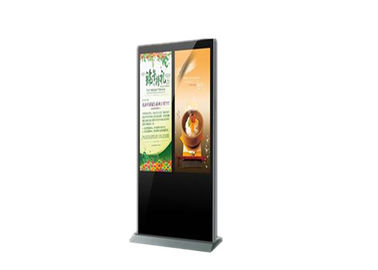

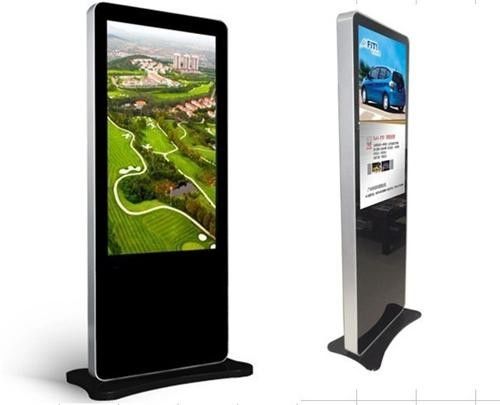

Advertising Floor Standing Kiosk

Advertising Floor Standing Kiosk

What we do:

Screenage has a 2,500 square meter assembly plant in Shenzhen city, Guangdong Province, with their sister companies of PCB development, metal plant, panel trading and assembly factory. They can cover the full production process for mechanical part and finished product. Because of their professional R&D department and riche experience, Screenage can not only make mass product for their standard products but can also make OEM / ODM production be based on different requirement from customers.

Basic functions overview:

1. Full HD 1920*1080, LED backlight screen, support display models of 16:9.
2. Multi-groups of on/off time schedule could be setted remotely and control the display through Internet.
3. Display in random split screens, play videos in multi-windows, play different contents in different windows.
4. Compatible multimedia file formats: MPEG1/2/4, AVI, RM,WMV,DAT, JPEG, BMP, PPT, WORD, EXCEL, TXT, MP3, RMVB, SWF etc.
5. Scrolling texts in English and Chinese version are available, various display modes for titles (Fonts and colors of letters, background clolors, the relative attributes of rolling dirctions in horizontal or vertical could be adjusted).
6. Support media contents combine by videos, pictures, flashes, marquee etc.
7. Functions of controlling the playlist, displaying in order the programs and playing circularly.
8. Support uploading files through Wifi and cable network.
9. Intelligent system for arranging and playing programs, easy and fast operation.
10. Able to adjust the volume and switch on/off the units by remote controller.
11. Support displaying in dual screens, play different video files and audio contents in these two screens.

Applications:

- Public places:bus, subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
- Business organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, star-rated hotels, restaurants, travel agencies, pharmacy;
- Financial organizations: banks, negotiable securities, funds, insurance companies, pawnshops;
- Non-profit organizations: telecommunications, post offices, hospital, schools;
- Real estate property: apartments, villas, offices, commercial buildings, model rooms, property brokers;
- Entertainments: movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.

Product Specifications:

Panel Specifications
Panel Size: 42 inch 47 inch 49 inch 55 inch 65 inch
Panel Type: TFT-LCD
Display Colors: 8 bit, 16.7 Million
Number of Pixels: 1080P, 1920 x 1080
Luminance of White: 450cd/m*2
Contrast: 3500:1
Viewing Angle: 160°/ 120°(H/V)-Fullview
Aspect Ratio: 16:9
Response Time: 6.5 m-sec
Life Time: 60,000 hours
PC Specifications: Solution: Intel i3

Parts
Processor: Intel i3 3240 (3.4GHz, dual core)
RAM: 4G DDR3 (Kingston)
Hard Disk: 500G 5400rpm (Seagate)
Mother Chipset: Intel H61 chipset, Sandy Bridge
Video Chipset: Intel HD Graphics, Shared memory
Audio Chipset: Intel HD audio
I/O ports: 4xUSB 2.0, 1xRJ-45, 1x3.5mm jack plug, 1xHDMI, 1xVGA, 1xDC 12V</span></p>
Internet: Default: RJ-45 and Wi-Fi. Optional: 3G
Loudspeaker: 2 x 8Ω/ 5W
OS: Android, Linux, Windows XP, Vista, 7/8 (32 bit) / extra cost for original version
OS Language: English (default)
Touch Performance: Touch Screen Type
Infrared: Touch Condition: Finger, touch pen or anything un-transparent
Touch Points: 6 points. Optional: 4, 8, 16, 32 points
Interpolation Resolution: 32767 x 32767
Response Time: ≤ 20m-sec
Min Touch Diameter: 5mm
Touch Accuracy: ±2mm for 90% area
Platform: 4mm thickness tempered glass

Appearance
Color: White (default), black and customized
Case: 2mm cold-rolled sheet
Paint Process: 170°~ 180°Baking finish
Application: Floor stand

Others
Power Input: AC 100 ~ 240V, 50/60 Hz
Max. Power Consumption: 122KWh
Standby Power Consumption: <5KWh
IP Code: IP20
Working Temperature: 0 ~ 40°
Storage Temperature: -20 ~ 55°</span></p>
Working Humidity: 20% ~ 80%
Storage Humidity: 10% ~ 90%
Unit Package: PE film + Foam corner protector + Carton
Export Package: Export wooden packing
Accessories: Driver CD

Other size product data contrast:

Question and Answer:

Q1: Are you a factory or a trading company?
A: We are a OEM/ODM factory.
Q2: What payment methods your company accept?
A: We accept most of the payment methods,but mainly accept T/T,L/C, and Western Union.
Q3: How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery.
Q4: What will you do if the product be nature damange within warranty time and how about out that time?
A: Well, we will give some quite simple questions to help us confirm the damaged part. Once it confirmed, the free replacement will be send. Also, we will just request a very low price for replacement part, if the product out of warranty time.
Q5: Do you give any discount?
A: I'll surely try my best to help you get those by the best price and good service at the same time.
Q6: Can I customize the product I ordered?
A: Abusolutely yes, customizatiion offer from customers are most welcome in our company.
