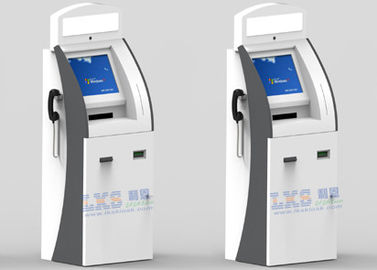

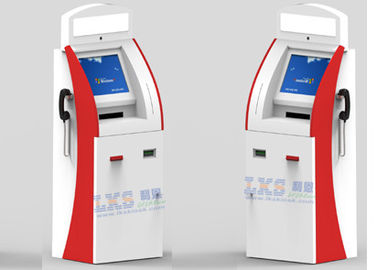

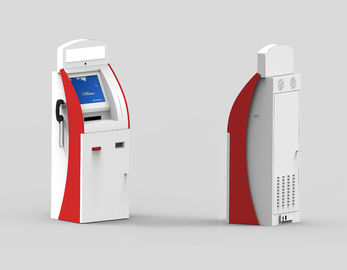

A4 Laser Printer Telekiosk Bill Acceptor Payment Kiosk , 3 Tracks USB MSR Wireless Card Reader
Customize Options:
Description:
(1). Bill payment kiosk with bill acceptor,card reader bill payment kiosk machine,self-service payment kiosk terminal will suit your particular needs and requirements - ranging from simple public internet access orinteractive payment kiosk to highly sophisticated public information delivery systems.
(2). Shenzhen Lean Kiosk System Co., Ltd is the professional touch screen bill payment kiosk manufacturer and also the leader in the kiosk industry in Shenzhen,China.Our product line includes all kinds of self-service touch screen payment kiosk machines and also ATM.
(3). If you are looking for a professional kiosk manufacturer of touch screen kiosk for your information orinternet kiosk project,payment kiosk project and bill payment kiosk project. Please feel free to contact me,we will assist you with all your touch screen payment kiosk requirements.
Applications:
Telekiosk Bill Acceptor Payment Kiosk With 3 Tracks USB MSR Wireless Card Reader A4 Laser Printer was designed having in mind the components that can integrate. The transact is the chameleon of the kiosks, because it can easily adapt the needs of each client.
Standard hardware components List of Telekiosk Bill Acceptor Payment Kiosk With 3 Tracks USB MSR Wireless Card Reader A4 Laser Printer is as following:
| Components | Details | |
| PC system | Industrial Board | Advantech AIMB 562/Seavo H6116/ Gigabyte |
| CPU | Intel Dual- Core G2020 ,2.9GHZ | |
| RAM | 2GB /4 GB /8GB | |
| HDD | 320G / 500G | |
| Interface | 2 RS-232 Ports;1 LTP;4 USB Ports,1 10/100M Net Port | |
| PC Power Supply | Great Wall / HUNTKEY | |
| LCD display | angle | horizontal 100°above;Vertical 80°above |
| Brightness | 250cd/m2 | |
| Screen Size | 17 inch/19inch or other size | |
| Contrast | 1000:01:00 | |
| Backlight tube life | > 40,000hours | |
| Max. resolution | 1280×1024 or 1920*1080 | |
| Touchscreen | Screen Size | 17/19 inch Diagonal or other size |
| Resolution | 4096x4096 | |
| High precision and durability, high Transparence , Orientation precision less than 2mm(0.080 inch); pure tempered glass;Single-point touch Life expectancy > 50,000,000 times | ||
| Bank/Credit Card Reader | Interface | RS232 or USB |
| Card Type | Support IC Card, Magcard, Mifare S50,S70, RF Card, UL Card | |
| Card Entry method | Magnetic signal, Optoelectronic signal and rear card signal | |
| Certificate | EMV level.1 | |
| Encrypted Pinpad | Keylift~span | 2,000,000 cycles |
| Certificate | PCI 2.0 | |
| Key trip | >2.5mm | |
| Protection level | ip65 | |
| Epson thermal printer | Autocutter | included |
| Technology | Thermal printing | |
| Paper width | 80mm | |
| Printing speed | 150mm/s | |
| Data buffer | 4KB | |
| Interface | RS232 ,USB | |
| 1D / 2D bar code scanner | ||
| Digital Power Supply | AC input voltage range | 100~240VAC |
| Frequency | 50Hz to 60Hz | |
| Accessories | (IO control board) USB ports, speakers, screws, fans, cables, Wire-lan port, etc. | |
| Operation System | Win 7 or Win 8 operation system without license | |
| KIOSK Cabinet | Durable all steel anti-graffiti enclosure, Slim and smart design; Easy to install and operate; Moisture proof, Antirust, Anti-acid, Anti-dust,Static free, color and LOGO upon clients request | |
| Packing | Security Packing method wooden case with bubble foam | |
Other Optional hardware components List of Building Directory And Wayfinding Kiosk Self-service Betting Terminals Gambling Bill Payment Kiosk With QR Scanner is as following:
Main designs of Telekiosk Bill Acceptor Payment Kiosk With 3 Tracks USB MSR Wireless Card Reader A4 Laser Printer:
