Product Details:
Payment & Shipping Terms:
|
| Item Name: | Outdoor Digital Signage | Brightness: | 7500cd/m² |
|---|---|---|---|
| Driving Method: | Constant Current | Pixel Pitch: | 8mm |
| LED Type: | DIP246 | Display Color: | 17M~69G Colors |
Full Color P8 Outdoor Digital Signage Screens Advertising for Highway
Product Features:
1. Uniform colors, high contrast, high uniformity and bright pictures.
2. Low power consumption, low heat, low noises and energy conservancy and environment protection.
3. Super wide visual angle design, wide audience range.
4. Integrated cabinet design, thus convenient for installation, debugging and maintenance.
5. Two-channel cooling design, low brightness decay and long service life.
6. Professional mask design, so that the protective grade can reach IP65 and it is dustproof and waterproof.
7. Stable signal, power supply and system, so that the use of the digital signage is very safe.
Application Ranges:
Outdoor advertising media, government and enterprise projects, commercial complex, culture and entertainment, sports events and traffic instruction
Technical Parameters of P8 Outdoor Led Digital Signage:
| Model | P8 Outdoor Led Digital Signage |
| Pixel Pitch | 8mm |
| Pixel Composition | 1R1G1B |
| LED Type | DIP246 |
| Pixel Density | 15625dots/m² |
| Scanning method | 1/4 |
| Brightness | ≥7000cd/m² |
| Working Voltage | AC110V±10%, 50Hz-60 Hz |
| Average Power | 350W/m² |
| Max. Power | 1000W/m² |
| Pixel No. on Unit Plate | 32×16 |
| Module Size | 256mm×128mm |
| Level up degree | <1mm |
| Viewable Distance | 8m-300m (The bigger the display board is, the max. visible distance will be.) |
| Viewable Angle | Horizontal: 120°, Vertical: 60° |
| Screen Weight | 40kg/m² |
| Driving Method | Constant current |
| Display Color | 17M~69G colors |
| Bright Adjustment | Manual/Automatic/Remote |
| Grey Scale | 256~4096 |
| Refresh Frequency | 600 Hz~2440Hz |
| Refresh Frame Frequency | 60Hz |
| Display Content | TV picture, ads, video, live streaming video, picture and words |
| Display Mode | 640×480, 800×600, 1024×768, 1280×960…1920×1200, 2048×640 |
| Control Method | Synchronous, asynchronous, remote and wireless |
| Transmission Distance | 5E cable≤130M Multimode fibre≤500M monomode fibre≤10KM |
| Transmission Distance | ≥72 hours |
| Service Life of Led | 100,000 hours |
| Mean Time Between Failure | ≥10,000 hours |
| Dispersed Incontrollable Point | <0.01% |
| Continuous Incontrollable Point | No |
| Protecting Technology | Waterproof (Front size IP65, back side IP54), dustproof, antisepsis, antistatic, and has such protection functions of over current, short circuit over voltage and low voltage. |
| Temperature of Use Environment | -30℃~+50℃ |
| Moisture of Use Environment | 10%~90% |
| Certifications | CE, ROHS |
Note: The technical parameters are just for reference, please contact us for details.

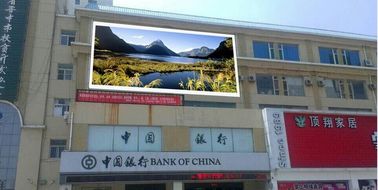

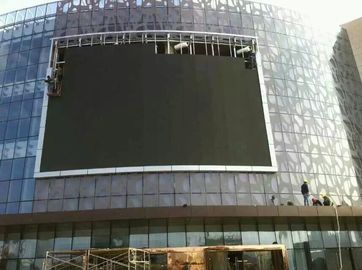

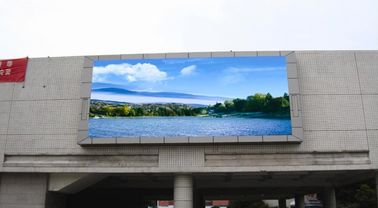

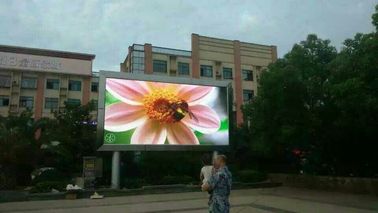

More Pictures for Your Reference:
