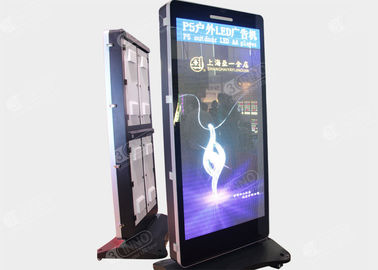

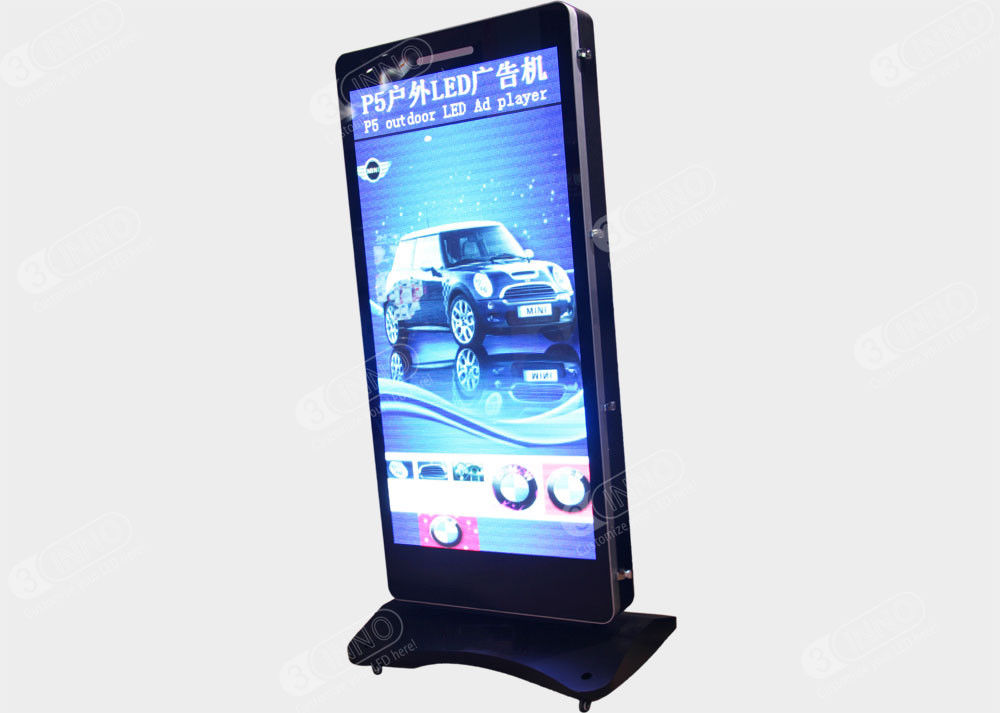

P4mm LED Poster Advertising Screen Waterproof LED Digital Signage

P4mm LED Poster Advertising Screen Waterproof LED Digital Signage

P4mm LED Poster Advertising Screen Waterproof LED Digital Signage
P4mm LED Poster Advertising Screen Waterproof LED Digital Signage P4mm LED Poster Advertising Screen Waterproof LED Digital Signage P4mm LED Poster Advertising Screen Waterproof LED Digital Signage

Large Image :  P4mm LED Poster Advertising Screen Waterproof LED Digital Signage

Product Details:
Place of Origin: China
Brand Name: 3Cinno
Certification: CE/ROHS/FCC/SGS
Model Number: PO-4
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm
Price: negotiation
Packaging Details: Wooden box / Flight case
Delivery Time: 15~25 working days after received your payment
Payment Terms: T/T
Supply Ability: 2,000 pcs per month
Detailed Product Description
Pixel Pitch: 4mm LED Lamp: Black 3-in-1 SMD
Poster Size: 55" , 71" , 85" Brightness: >1200
Viewing Angle: H: 120° / V: 120° Control: Synchronous / Asynchronous: Wifi,U Disk, Etc.
Material: Aluminum Installation: Standing
High Light:

advertising digital signage

,

hd digital signage

P4mm LED Poster Advertising Screen Waterproof LED Digital Signage



Main Feature:



The surface of the display is decorated with a smooth and seamless glass



High quality aluminum alloy frame, anti-corrosive, anti-oxidation, dust-proof and fingerprint proof,

keeping clean and beautiful surface



1:2 display ratio with luxurious appearance creating best sight experience , suitable for high-end advertising



Centralized cluster network and remote control system to monitor and manage the status of LED screen



The surface of the screen with a transparent acrylic plate protection prevent scratched

besides getting waterproof and dustproof performance.





Application:



Pefectly used for advertising as digital signage in Shopping mall, Gas station, Bus stop, etc.





Specification:



LED Digital Poster Signage Unit PO-4
Pixel pitch mm 4
Pixel density pixels/㎡ 62,500
Pixel configuration SMD
Lamp viewing angle(H/V) degree 120/120
Processing bit/color 12
Colors billion 68.7
Brightness cd/㎡ ≧1200
Refresh rate Hz ≧480
Module size(W×H)  mm 160*160
Module resolution(W×H)  pixels 40*40
Display resolution (W×H)  pixels 160*320 200*400 160*320 customized
Display size(W×H)  mm 640*1280 800*1600 960*1920
Frame size(W×H)  mm 715*1600 875*1932 1060*2320
Frame size inches 55" 71" 85"
Color temperature k 3200~9300 adjustable
Brightness uniformity ≧97%
Color uniformity Within±0.003 Cx, Cy
Operating power VAC,Hz 110/220,50/60
Power consumption(max/ave) W/㎡ 1200/400
Material Aluminum
Service access Rear
Installation Standing
Control mode Synchronous /Asynchronous:Wifi,U disk, etc.
Display content Pictures, video,animation,text,etc.
IP rating IP65 front , IP54 back
Operating temperature ﹣20 ~50
Operating humidity RH 10%~90%
Package   Wooden box
Certificates CE,Rohs,FCC





Material Selection :



1)LED:  Well-known international brand with small wavelength range , little brightness attenuation ,

good heat dissipation,etc.



2) Power supply:  Using industrial strength brand power supply which range of voltage fluctuation

 is less 5%, high stability.



3) Driving IC:  Famous brands such as, Taiwan MBI,etc. To keep good consistency and avoid the

unstable and flickering light and so on.



4) PCB Board:  Painting oil to make it anti-moisture, anti-corrosion and anti-damp suitable

for outdoor usage.
