Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 1.6mm | LED Lamp: | Black 3-in-1 SMD |
|---|---|---|---|
| LED Density: | 360,000 | Brightness: | >800 |
| Refresh Rate: | >2500 | Cabinet Size: | 400*300*66mm (W*H*D) |
| Material: | Die Casting Aluminum | Contrast: | 4000:1 |
| High Light: | advertising digital signage,advertising LED sign |
||
P1.6mm Small Pitch LED Digital Signage High Contrast High Definition LED Display
Main Feature:
Leading technology of high gray level, high contrast ratio even in low brightness,and high refresh rate
Lightweight, trendy , bezel-free, high precision and reliable high-tech display

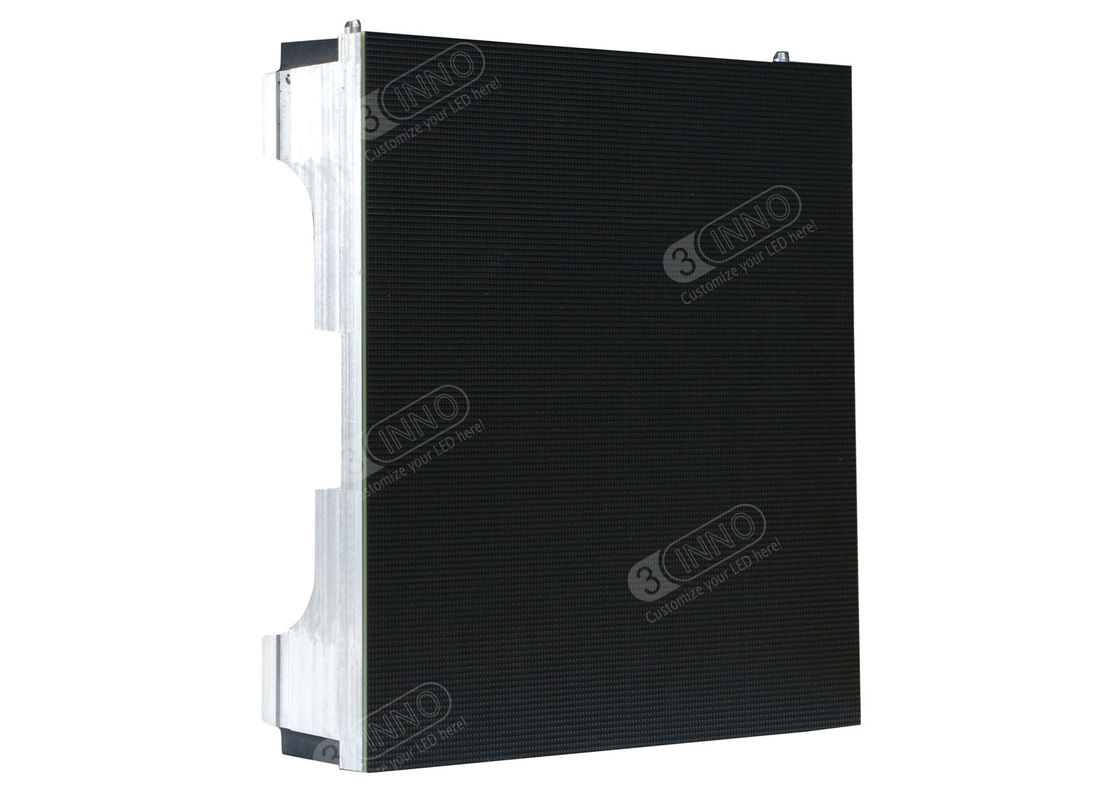

Modular design for screen cabinets, also the framework and connection parts
Wide color range, excellent color uniformity, no brick shadow, seamless image of real bezel-free
Die-casting aluminum design and CNC processing keep 0.01mm accuracy
redundancy design of double power supply and signal converter guarantee zero failure rate specially
in important occasions like broadcasting studio, live shows,etc.

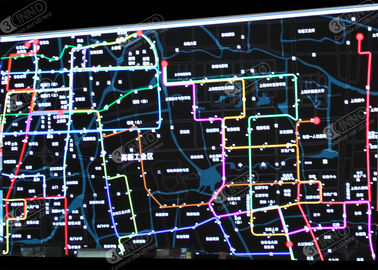

Application:
Perfectly used for control room , show room, TV studio, conferece room , brand retails,etc. to replace
traditional DLP, LCD , projectors.
Specification:
| Small Pitch LED Digital Signage | Unit | SP-1.6 | |||
|---|---|---|---|---|---|
| Pixel pitch | mm | 1.667 | |||
| Cabinet size(W×HxD) | mm | 400*300*66 | |||
| Pixel density | pixels/㎡ | 360,000 | |||
| Pixel configuration | ﹣ | Black 3-in-1 SMD | |||
| Lamp viewing angle(H/V) | degree | 160/140 | |||
| Brightness | cd/㎡ | ≧800 | |||
| Refresh rate | Hz | ≧2500 | |||
| Processing | bit/color | 14 | |||
| Colors | trillion | 4.39 | |||
| Color temperature | K | 3200~9300 adjustable | |||
| Color uniformity | ﹣ | Within±0.003 Cx, Cy | |||
| Brightness uniformity | ﹣ | ≧97% | |||
| Contrast | ﹣ | 4000:1 | |||
| Lamp drivering mode | ﹣ | Constant current driving | |||
| Operating power | VAC,Hz | 100-240,50/60 | |||
| Power consumption(max/ave) | W/㎡ | 1000/300 | |||
| Operating temperature | ℃ | ﹣10 ~40 | |||
| Operating humidity | RH | 10%~80% | |||
| Cabinet material | ﹣ | Die casting aluminum | |||
| Weight | kg/cabinet | 4.6 | |||
| Weight | lbs | 10 | |||
| Serviceability | ﹣ | Rear | |||
| Installation | ﹣ | Standing / Hanging | |||
| IP rating | ﹣ | IP30 | |||
| Control system | ﹣ | DVI synchronous system | |||
| Source compatibility with VP | ﹣ | CVBS,YUV, DVI,VGA,S-Video,HDMI,SDI,HDSDI,etc. | |||
| Standard | ﹣ | CE,Rohs,FCC,ETL | |||
| Package | Flight case / Wooden box | ||||
