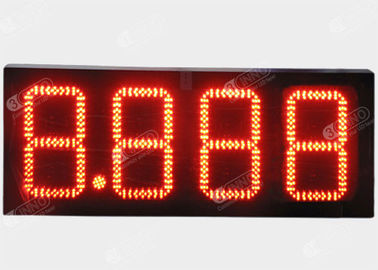

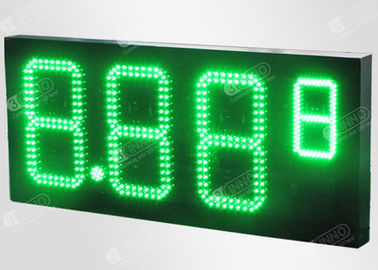

LED Digital Gas Signage IP65 and High Brightness Tricolor Number LED Display

LED Digital Gas Signage IP65 and High Brightness Tricolor Number LED Display

China LED Digital Gas Signage IP65 and High Brightness Tricolor Number LED Display supplier
LED Digital Gas Signage IP65 and High Brightness Tricolor Number LED Display supplier LED Digital Gas Signage IP65 and High Brightness Tricolor Number LED Display supplier

Large Image :  LED Digital Gas Signage IP65 and High Brightness Tricolor Number LED Display

Product Details:

Place of Origin: China
Brand Name: 3Cinno
Certification: CE/ROHS/FCC/SGS
Model Number: GS Series (Gas Sign)

Payment & Shipping Terms:

Minimum Order Quantity: 1sqm
Price: negotiation
Packaging Details: Wooden box / Flight case
Delivery Time: 15~25 working days after received your payment
Payment Terms: T/T
Supply Ability: 2,000 pcs per month
Contact Now
Detailed Product Description
Display Format: 8.88 8.888    8.889   8.88 9/10 etc. LED Lamp: High Brightness Lamps
Remote Control: Available Brightness: Auto-dimming By Sensor
Power Input: 110/220V AC, 50/60 Hz Control: RF Remote Control
Material: Steel / Aluminum Maintenance: Rear / Front
High Light:

advertising digital signage

,

advertising LED sign

LED Digital Gas Signage IP65 and High Brightness Tricolor Number LED Display





Description:



Features:
Control System:

The LED gas price sign's control system allows for easy and fast changes on the display screen.

Height Adjustment:

The LED signs can have their height adjusted, which allows them to be adapted to the

surrounding environment and meet energy conservation and environmental protection

needs.


a. With a light sensitive probe, the outdoor LED panel has an automatic height adjustment according

 to the ambient environment.


b. The height is adjusted via a wireless remote control.


c. The height is also adjusted using computer software.



● Multiple control modes:

 With multiple control methods, the LED signs are easy to operate and have a long control distance.




a. Wireless RF data transmission (200m)


b. Wireless WiFi control



c. RF remote controller


d. LCD remote control


e. When connected to a computer, the RS232 communication can have a maximum transmission

distance of up to 15 meters.

Connect computer software to the RS485 communication and the transmission distance is up to 1,200m.


f. The TCP/IP network control is achieved via LAN or remote computer control.


g. The IP can be provided to customers to develop as they see fit.


Optional brightness for outdoor displays/semi outdoor displays


Display Format: 8.88, 8.889, 8.888, 8.889/10


The ultra-thin cabinet design can meet specific customer requirements.


An impeccable and rational structural cabinet design makes installation easy.


Custom designed LED fuel price signs are available.


Different colors and sizes are available to choose from.


A fault indicator facilitates the troubleshooting.


The LED sign's display screen allows for a versatile publicity and easy adjustment.


High quality, and ultra-bright LED lamps make the display of gas prices eye catching, stable and reliable



The LED signs have passed CE, FCC, RoHS, UL and other international standards.





Application:  Gas stations





Specification:



Model GS series  (Gas Sign)
Item Technical Parameters
Color Red, amber, green, blue or white
Digit Height 4", 6", 8", 10", 12", 16",18",20", 24", 32", 36", 48", 60" etc.
Digit Design 4"~24" : standard digit; 32" and above are multi-stroke seven segment digits
Brightness Control Auto-dimming by sensor.
Display Dimming Over 8 levels of automatic intensity adjustment.
Viewing Angle Horizontal: 120°, Vertical: 100° or customized
Service Access Front or rear access
Master/slave Single/Double side, master/slaves available
Casing Material Steel, aluminum available.
Waterproof Level IP 54 from 4" to 32" (outdoor), IP65 front & IP54 rear from 32" to 60" (outdoor)
Led Driving Mode Constant current
Power Input 110/220VAC , 60Hz/50Hz
Pc Communication Rs232/ RS422(standard);  LAN(TCP/IP),GSM modem, RF modem, SMS(optional)
Communication Distance Max.15meters for RS232, 1200meters for RS422
Remote Control Type RF wireless remote control with communication range of 300ft / 100m.
Continuous Working Time Unlimited
Lifetime of Leds >100,000 Hours
Installation Method Hanging, mounting or per custom design
Working Temperature Indoor:-20°C to +60°C; Humidity: 15% -95%RH
Display Format 8.88 8.888    8.889   8.88 9/10 etc.





Digit Height Number  Format Wide Height Depth Description
4 inch 8888 324mm 175mm 100mm * Steel or
   aluminum
   PC front cover
* Semi-outdoor:
   IP54 rear
* Outdoor:
   IP65 front
   IP54 rear            * 7000cd/m2
   without PC
   front cover
* with auto-
   dimmer
* 120°/100°(H/V)
6 inch 8888 506mm 228mm 55mm
8 inch 8.889 590mm 293mm 60mm
8888 632mm 293mm 60mm
8888 637mm 283mm 130mm
88888 774mm 293mm 60mm
10 inch 888 604mm 347mm 60mm
  704mm 347mm 60mm
8888 647mm 347mm 60mm
8888 784mm 347mm 60mm
88888 964mm 347mm 60mm
12 inch 888 724mm 400mm 60mm
  836mm 400mm 60mm
8888 788mm 400mm 60mm
8888 944mm 400mm 60mm
88888 1164mm 400mm 60mm
16 inch   1077mm 507mm 60mm
888.8 1224mm 507mm 60mm
88.888 1514mm 507mm 60mm
18 inch 8.88 1054mm 560mm 60mm
8.889 1219mm 560mm 60mm
88.88 1383mm 560mm 60mm
20 inch   1294mm 610mm 60mm
88.88 1464mm 610mm 60mm
8.888 1464mm 610mm 60mm
24 inch 8.88 1344mm 710mm 60mm
88.88 1771mm 710mm 60mm
8.888 1564mm 710mm 60mm
  2080mm 710mm 60mm
32 inch 8.888 2077mm 916mm 60mm
36 inch   2290mm 1000mm 130mm
48 inch 8.888 3350mm 1310mm 120mm
60 inch 88.8 3078mm 1624mm 130mm







Case photos:



LED Digital Gas Signage IP65 and High Brightness Tricolor Number LED Display 0
