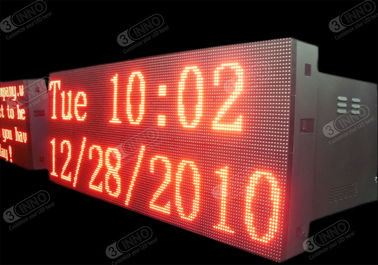

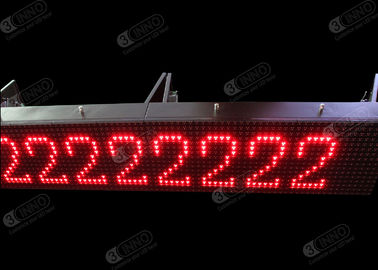

Outdoor Digital LED Billboard Monochrome Tricolor Picture Text Moving LED Screen

Product Details:

Place of Origin:	China
Brand Name:	3Cinno
Certification:	CE/ROHS/FCC/SGS
Model Number:	TS outdoor series (Tricolor Sign)

Payment & Shipping Terms:

Minimum Order Quantity:	1sqm
Price:	negotiation
Packaging Details:	Wooden box / Flight case
Delivery Time:	15~25 working days after received your payment
Payment Terms:	T/T
Supply Ability:	4,000 pcs per month

Contact Now

Detailed Product Description

Pixel Pitch:	P7.62mm, 10mm, 22mm, Customized	LED:	φ 5mm
Remote Control:	Available	Power Input:	110/220V AC, 50/60 Hz
IP Grade:	IP65	Material:	Steel / Aluminum
High Light:	advertising digital signage , advertising LED sign

Outdoor P7.62, P10, P12, P16, P20, P25, LED Monochrome / Tricolor Message Digital Signage

Description:

IP65 waterproof steel / aluminum cabinets

Ultra Bright LED’s and Automatic dimming

Store and trigger up to 200 messages

Built in scheduling ; Event countdown feature

Various character heights ; Simple graphics (jpeg or bmp)

Software managed brightness control ; automatic ON/OFF feature

Various character heights; Simple graphics (jpeg or bmp) ; Real time display

Display English or European characters, graphic symbol and simple animations.

4096 shades of red or amber ; RS-232 / RS-485 and Ethernet (LAN) as standard

Color Shades: Monochrome, RG, or RGB. Each color and each pixel can contain 256 shades.

Application:

Transportation information,media advertising, entertainment announcements, equipment statuses,

and more in pubic places

Specification:

Item	Technical Parameters
Pixel pitch	7.62mm (standard), 10mm, 12mm,16mm,20mm, 22mm,25mm,31.25mm etc
IP grade	IP65 for outdoor usage
Color Displayed	Red, Yellow ,Green, Amber, Blue, Pure Green, or White etc.
Max. Resolution	Pixels(depends on customers requirement)
Controller Type	LED multi- line system
Viewing Angle	100°/50° (H/V) for indoor models, 100°/50° (H/V) for window brightness
Connectivity	Rs232 (default), RS422/485, Modem, RF Modem, GSM Modem, 3G or TCP/IP (LAN)
Remote Control	IR remote
Display Element	φ 5mm(default).
Memory Retention	Support approx. 7,000 characters over 1 year
Housing Material	Steel/Aluminum/Stainless Steel Or Customized
Working Environment	-20°C to +65°C
Power Input	AC 110 or 220 V ±10%, 50 ~ 60 Hz
Average LED lifetime	100,000 hours
Optional Fittings	RS232-RS422/485 Convertor, Modem, RF Modem or TCP/IP(LAN) Adapter
