Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | P7.62mm, 10mm, 22mm, Customized | LED: | φ 5mm |
|---|---|---|---|
| Remote Control: | Available | Power Input: | 110/220V AC, 50/60 Hz |
| Control: | Multi-line System | Material: | Steel / Aluminum |
| High Light: | advertising digital signage,advertising LED sign |
||

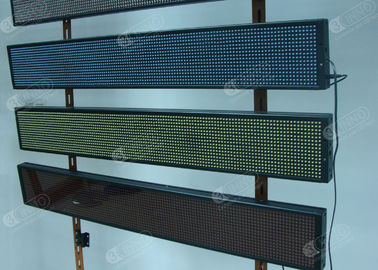

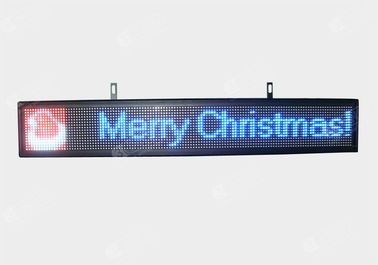

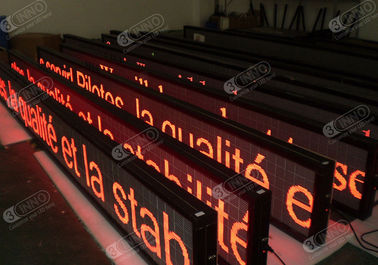

Indoor Single Color / Dual Color / Tricolor Message LED Display Text Pictures Moving Screen
Description:
Ultra Bright LED’s and Automatic dimming
Various character heights; Simple graphics (jpeg or bmp) ; Real time display
Software managed brightness control ; automatic ON/OFF feature
Store and trigger up to 200 messages
Display English or European characters, graphic symbol and simple animations.
4096 shades of red or amber ; RS-232 / RS-485 and Ethernet (LAN) as standard
Various character heights ; Simple graphics (jpeg or bmp)
Built in scheduling ; Event countdown feature
Color Shades: Monochrome, RG, or RGB. Each color and each pixel can contain 256 shades.
Application:
media advertising, entertainment announcements, equipment statuses, transportation information,
and more in pubic places
Specification:
| Item | Technical Parameters | ||||
| Pixel pitch | 7.62mm (standard), 10mm,15.24mm,22mm etc | ||||
| Color Displayed | Red, Yellow ,Green, Amber, Blue, Pure Green, or White etc. | ||||
| Max. Resolution | Pixels(depends on customers requirement) | ||||
| Controller Type | LED multi- line system | ||||
| Viewing Angle | 100°/50° (H/V) for indoor models, 100°/50° (H/V) for window brightness | ||||
| Connectivity | Rs232 (default), RS422/485, Modem, RF Modem, GSM Modem, 3G or TCP/IP (LAN) | ||||
| Remote Control | IR remote | ||||
| Display Element | φ 5mm(default). | ||||
| Memory Retention | Support approx. 7,000 characters over 1 year | ||||
| Housing Material | Steel/Aluminum/Stainless Steel Or Customized | ||||
| Working Environment | -20°C to +65°C | ||||
| Power Input | AC 110 or 220 V ±10%, 50 ~ 60 Hz | ||||
| Average LED lifetime | 100,000 hours | ||||
| Optional Fittings | RS232-RS422/485 Convertor, Modem, RF Modem or TCP/IP(LAN) Adapter | ||||
| Indoor Multi-line LED Message Signs | ||
| Pixel Matrix | Characters with 7*5 font | |
| ROW | Columns | |
| One Line Displays | ||
| 7 | 80 | 10 |
| 7 | 96 | 16 |
| 7 | 112 | 18 |
| 7 | 128 | 21 |
| 7 | 160 | 26 |
| Two Line Displays | ||
| 16 | 80 | 10x2 |
| 16 | 96 | 16x2 |
| 16 | 112 | 18x2 |
| 16 | 128 | 21x2 |
| 16 | 160 | 26x2 |
| Three Line Displays | ||
| 24 | 80 | 10x3 |
| 24 | 96 | 16x3 |
| 24 | 112 | 18x3 |
| 24 | 128 | 21x3 |
| 24 | 160 | 26x3 |
| Four Line Displays | ||
| 32 | 80 | 10x4 |
| 32 | 96 | 16x4 |
| 32 | 112 | 18x4 |
| 32 | 128 | 21x4 |
| 32 | 160 | 26x4 |
