Product Details:
Payment & Shipping Terms:
|
| Screen Size: | 26 Inch | Pixel: | 1366X768/1920x1080 Options |
|---|---|---|---|
| Contrast Ratio: | 1200:1 | Brightness: | 1000cd/m^2 |
| Input Signal: | VGA/DVI/HDMI/AV | Viewing Angles: | 170(H)/170(V) |
| Monitor Type: | Touch Screen | ||
| High Light: | interactive digital signage display,digital signage monitor |
||

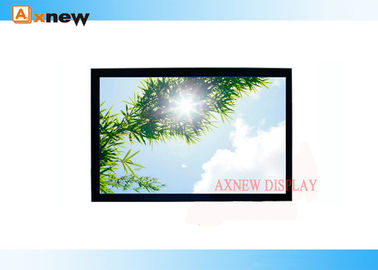

26 Inch Outdoor Touch Screen Digital Signage Monitor With High Contrast IP Front Bezel
1000nits Industrial display of 26 inch with high contrast high performance LCD monitor with VGA HDMI, AV , Video input ;
vesa mounting easily used for Digital Signage , Gaming , Automatic equipments, Advertising , vending embedded system,Kiosks application etc.
Quick Details:
Model: AXD-26OPIPN1P-VH4
Screen Size:26’’
Screen format: 16:9
Display Resolution(pixel):1366X768/1920x1080
Contrast Ratio:1200:1
Brightness:1000cd/m^2
Storage temperature : -20℃~70℃
Input signal: VGA DVI; HDMI; AV; Video;USB; S-video, etc
Power Input: AC100~240 V /DC 12V
Product status: In production
Features and Advantages
1. High Resolution with high contract LCD in stable supply
2. industrial control board supports the displays working 24 hours
3. 170/170 wide viewing angle with high performance
4. VGA HDMI ,AV ,Video, YPbPr etc interfaces
5. Integrated solution for touch screen and LCD display; good performance and easy assembling.
6. Interface both for USB and RS232 is available. No further hardware is needed for the convenience of NBSP users.
7. Higher sensitivity and faster response
8. Long durability; 1000nits high brightness LCD panels for this industrial monitor grade
9. Multi-options for assembling, including vertical, horizontal support. You may assemble it in VESA standard solution or in your own design.
10. We also provide the service of producing the product in users’ own design.
|
Display Specifications |
|
|
Display |
26.0" Color TFT high brightness LCD monitor |
|
Model Name |
AXD-26OPIPN1P-VH4 |
|
Active Display Area (mm) |
580.2 (H)x328.2(V) |
|
Pixel Pitch (mm) |
0.300(H)x0.300(V) |
|
Resolution (Pixel) |
1366X768/1920X1080 |
|
Brightness (CD/m^2) |
1000cd/m^2 |
|
Contrast Ratio |
1200:1 |
|
Viewing Angle (CR >=10) |
170/170 |
|
Power consumption |
98 W typical, normal operation |
|
Touch Screen |
Resistive RS232/USB(Optional) |
|
OSD Control |
On the back side |
|
I/O Connectors |
1x12v,1XVGA,DVI-D(Optional) |
|
Power Input Touch Screen options |
220v |
|
Mechanical Specifications |
|
|
Construction |
Steel metal housing |
|
Dimensions |
Drawings |
|
Mounting |
Embedded ,fixing holes on the |
|
Power source |
AC 100~240V/ 12V DC |
|
Environment Specifications |
|
|
Operating Temperature |
-10~70℃ |
|
Storage Temperature |
-20~80℃ |
|
Rating |
Facilitate installation of the demolition,solid portfolio |
|
Ordering Information |
26” High brightness LCD HD with 1000nits brightness monitor |
Packaging & Delivery
|
Packing details |
1x 26 inch Touch Screen Digital Signage ; Packed in 5 pieces/carton with protection foam |
|
Delivery terms |
7- working days for stock products after receiving payments; 15 working days for order production |
