Product Details:
Payment & Shipping Terms:
|
| Screen Size: | 10.4 Inch | Pixel: | 800x600 |
|---|---|---|---|
| Contrast Ratio: | 500:1 | Brightness: | 1000cd/m^2 |
| Input Signal: | VGA/DVI | Viewing Angles: | 150(H)/140(V) |
| Monitor Type: | Touch Screen | ||
| High Light: | digital signage monitor,lcd digital signage display |
||

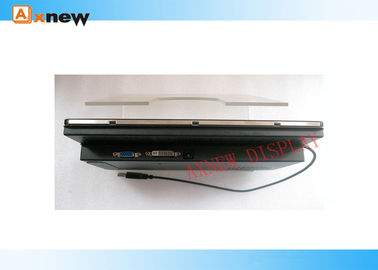

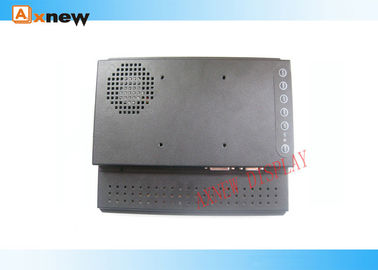

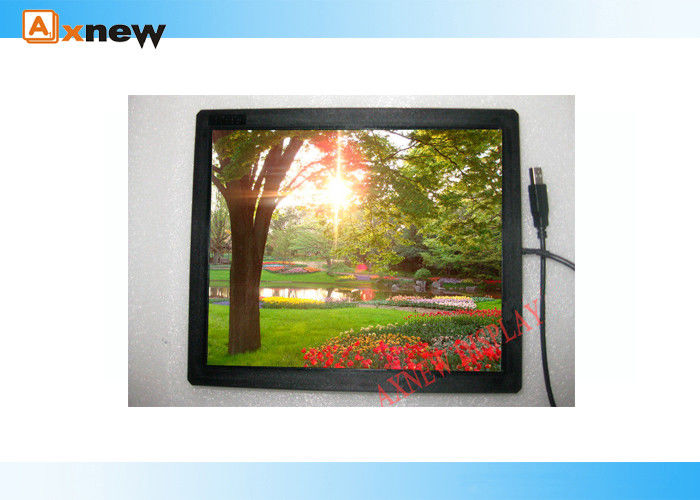

Outdoor 1000nits 10.4 inch industrial LCD ; Resistive or IR touch options , industrial controller board with VGA DVI input , used for Outdoor Automatic equipments, Outdoor Gaming, outdoor Advertising , vending embedded system etc.
Quick Details:
Model:AXD-10OPN1P3-TH4
Screen Size:10.4’’
Screen format: 4:3
Display Resolution(pixel):800x600
Contrast Ratio:500:1
Brightness:1000cd/m^2
Storage temperature : -30℃~80℃
Input signal: VGA DVI; HDMI Options
Features and Advantages
1. New and Industrial A grade perfect panels with stable supply
2. industrial control board supports the displays working 24 hours
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment
4. Open frame design to protect the LCD screen
5. VGA DVI interfaces ;infrared touch with USB interface options
6. sunlight readable 10.4 inch open frame touch LCD for application control , advertising player ,campus and industrial terminals etc
|
Display Specifications |
|
|
Display |
10.4" Color TFT Outdoor Monitor |
|
Model Name |
AXD-10OPN1P3-TH4 |
|
Active Display Area (mm) |
211.2(H)x158.4(V) |
|
Pixel Pitch (mm) |
0.264(H)x0.264(V) |
|
Resolution (Pixel) |
VGA (800X600) 16.2M /6 bit + FRC |
|
Brightness (CD/m^2) |
1000cd/m^2 |
|
Contrast Ratio |
500:1 |
|
Viewing Angle (CR >=10) |
150/140 |
|
Power consumption |
12.8 W typical, normal operation |
|
Touch Screen |
Infrared touch( anti-vandal, IP65) |
|
OSD Control |
On the back side |
|
I/O Connectors |
1x12v,1XVGA,DVI-D |
|
Power Input |
DC 12V,4A 48W |
|
Mechanical Specifications |
|
|
Construction |
Steel open frame & black Color |
|
Dimensions |
Subject to the updated drawings |
|
Mounting |
Edge fixing holes,Vesa Mounting |
|
Power source |
AC 100~240V/ 12V DC |
|
Environment Specifications |
|
|
Operating Temperature |
-20~70℃ |
|
Storage Temperature |
-30~80℃ |
|
Rating |
Facilitate installation of the demolition,solid portfolio |
|
Ordering Information |
10.4” high brightness open frame Monitor and power adapter for outdoors application |
Packaging & Delivery
|
Packing details |
1x 10.4 inch Touch Screen Digital Signage ; Packed in 5 pieces/carton with protection foam |
|
Delivery terms |
7- working days for stock products after receiving payments; 15 working days for order production |
