Product Details:
Payment & Shipping Terms:
|
| Screen Size: | 26 Inch | Contrast Ratio: | 1500:1 |
|---|---|---|---|
| Screen Format: | 16:9 | Brightness: | 400cd/m^2 |
| Application: | Industrial|Kiosk|POS | Feature: | HD|high Definition|slim |
| Input Signal: | VGA|DVI | Installation: | Rack Mount |
| Monitor Type: | Touch Screen | Product Name: | 26 Inch Touchscreen Digital Signage |
| High Light: | digital signage monitor,lcd digital signage display |
||

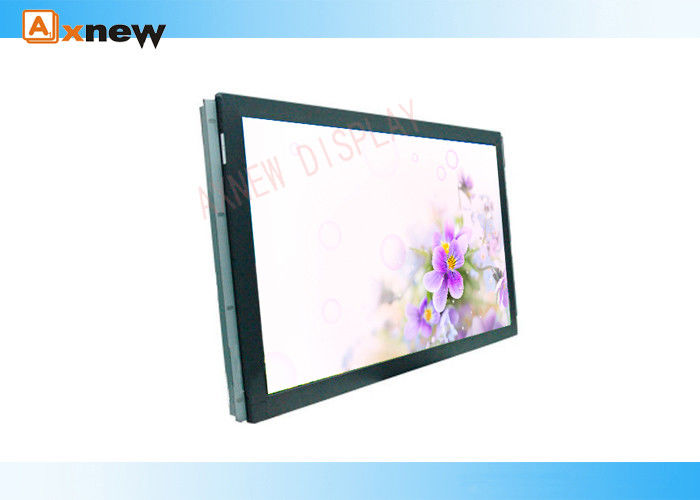

26" Rack Mount Touch Screen Digital Signage 16:9 Wide Screen
SAW ( Surface acoustic wave)Touch screen anti-vandal 26 inch LCD open frame HDMI, Composite Video, VGA input ； 26’’ 16:9 format LCD is widely used for Gaming, Automatic equipments, Advertising , vending embedded system, Kiosks etc.
Quick Details:
Model: AXD-26OPN1T3-V1
Screen Size:26’’
Screen format: 16:9
Display Resolution(pixel):1920X1080
Contrast Ratio:1500:1
Brightness:400cd/m^2
Storage temperature : -10℃~60℃
Input signal: VGA DVI
Power Input: AC100~240 V/DC 12V
Touch Type: SAW touch
Features and Advantages
1. New and A grade perfect panels with wide viewing angle
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces; SAW long use life with USB/ RS232 touch controller
6. 26 inch touch open frame monitor for application control , advertising player ,campus and industrial terminals etc
|
Display Specifications |
|
|
Display |
26" Color LED Touchscreen for Digital Signage |
|
Model Name |
AXD-26OPN1T3-V1 |
|
Active Display Area (mm) |
575.77(H)x 323.71(V) |
|
Pixel Pitch (mm) |
0.4215(H)x 0.4215(V) |
|
Resolution (Pixel) |
1366X768;1920X1080 262,144(6 bit + FRC) |
|
Brightness (CD/m^2) |
400cd/m^2; 500nits |
|
Contrast Ratio |
1500:1 |
|
Viewing Angle (CR >=10) |
176/176 wide view angle |
|
Power consumption |
28.5 W typical, normal operation |
|
Touch Screen |
SAW anti-vandal touch |
|
OSD Control |
On the back side |
|
I/O Connectors |
1x12v,1XVGA,HDMI, Composite, Video(Optional) |
|
Power Input |
DC 12V,4A 48W Adapter |
|
Mechanical Specifications |
|
|
Construction |
Open frame steel metal material |
|
Dimensions |
666.0x 376.2x 95.0(mm) |
|
Mounting |
Embedded ,right and left ; VESA 75x75(100x100) Wall Mounting Optional |
|
Power source |
AC 100~240V/ 12V DC |
|
Environment Specifications |
|
|
Operating Temperature |
0~60℃ |
|
Storage Temperature |
-10~60℃ |
|
Rating |
Facilitate installation of the demolition, solid portfolio |
|
Ordering Information |
26.0” OP LED Monitor with VGA input and power adapter |
|
Packing details |
1x 26 Inch Touchscreen lcd display; Packed in 2 pieces/carton with protection foam Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter |
|
Delivery terms |
7- working days for stock products after receiving payments; 15working days for order production |
