Product Details:
Payment & Shipping Terms:
|
| Size (Inch): | 5 Inch | Resolution: | 800×RGB×480 |
|---|---|---|---|
| Brightness: | 900 Cd/m2 (Brightness Can Be Adjustable In 100 Levels.) | Contrast: | 500:1 |
| Backlight Life: | 50,000 Hours | Voltage Range: | DC5.0V ~ 20V (typical Value: 12V) |

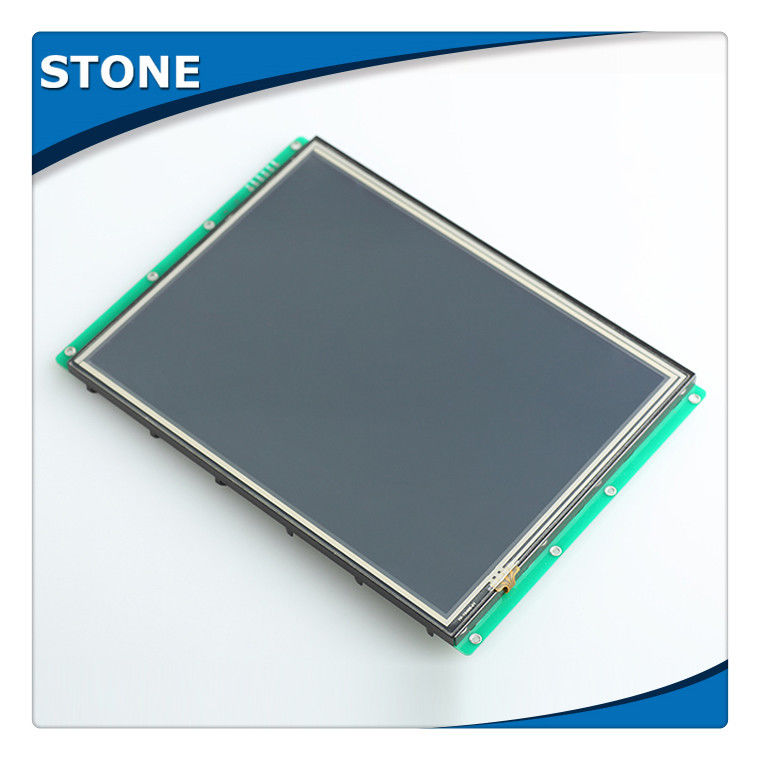

Industry High Resolution 5.0" TFT LCD Module With PCB Drive Board
Model: STA050WT-03 (Advanced Type)
|
Physical Parameter |
|
|
Model |
STA050WT-03 |
|
Size (Inch) |
5.0" |
|
Resolution |
800×RGB×480 |
|
Pixel Spacing |
0.1905 mm × 0.0635 mm(H×V) |
|
Color |
65536 colors (16 bit) |
|
Viewing Area |
108 mm × 64.8 mm |
|
Overall Dimension |
137.5 mm × 77.2 mm × 13.6 mm(N)/ 14.9 mm(T) |
|
Net Weight |
195 g(N)/ 200 g(T) |
|
TFT Panel |
A+ Level Industry Panel |
|
Touch Screen |
Industry Level 4 wire resistance Or without touch screen is optional. |
|
Backlight Parameter |
|
|
Backlight Type |
LED |
|
Brightness |
900 cd/m2 (Brightness can be adjustable in 100 levels.) |
|
Contrast |
500:1 |
|
Backlight life |
50,000 hours |
|
Viewing Angle |
70°/ 70°/ 60°/ 70° (L/R/U/D) |
|
Working Temperature |
-30°C ~ +70°C |
|
Working Humidity |
55°C, 85% |
|
Storage Temperature |
-30°C ~ +85°C |
|
Screen Mode |
Digital |
|
Performance Parameter |
|
|
CPU |
CortexM3 STM32F103 |
|
LCD Controller |
CPLD EPM240 |
|
Refresh Rate |
60Hz |
|
Picture Switching Speed |
40 ms/picture (25 pictures/s) |
|
Flash Memory |
Standard 256m, Extension 2GB |
|
Memory Amount for picture |
304 images |
|
Interface |
RS232/ RS485/ TTL UART Interface |
|
Pictures downloading |
MiniUSB2.0 (12Mbps) & SD card |
|
Voltage Range |
DC5.0V ~ 20V (typical value: 12V) |
|
Power |
2.6W |
Product Description
1. Controlled by Any MCU via simple "Command Sets"
2. Used as Touch-screeen controller & TFT-LCD display system
3. 3 easy software to help you run our product.
Working Principle
The TFT-LCD Module communicates with the main controller via the command, then the main controller would control the machine to work after receiving the commands.
Please note: The Main controller can be designed by engineer with Any MCU.
Software Description
2. Connect your equipment with our TFT-LCD Module by RS232, RS485 port or TTL Logic directly, plug
and play.
3. Write a simple program for the MCU to control the TFT-LCD Module via powerful "Command Sets" (
HEX Code).
That's all. Saving much development Time and Cost for Engineer.
For example: Image Command 0x70.
Send: “0xAA+0x70+ Pic_ID + 0xCC 0x33 0xC3 0x3C”
|
|
Introduction |
Example |
Note |
|
AA |
Frame head |
|
Frame head of one Command |
|
0x70 |
Command Code |
|
|
|
Pic_ID |
Sequence number of the current picture |
0x00 0x01 |
Show Picture - 01 |
|
CC 33 C3 3C |
Frame end |
|
Frame end of one Command |
We would offer a simple Toolbox to help you to work with TFT-LCD Module on PC.
1. Assistant function: show how to send the Command Set to control the TFT display.
2. Download function: Download the images and configuration files into TFT Module
3. Touch Control function: Define many buttons on the User Interface, then create a touch configuration
file.
4. Font software: Create the font configuration file.
Advantages
|
With CPU & Driving Device |
|
Controlled by Any MCU |
|
Display Picture/ Text/ Curve via Commands |
|
65536 colour TFT display |
|
Touch Screen |
|
RS232/ RS485/ TTL UART Interface & USB port |
|
Wide voltage range |
|
Widely Used in many various Industrial Field |
|
Easy to Use! Powerful Function! Saving Cost and Time! |
|
Used as Touch-controller, TFT-LCD display system, etc. |
Easy!!! Powerful!!! Saving!!!
The Intelligent TFT-LCD Module can be controlled by Any MCU through our Powerful & Easy Command
Set (HEX Code), So
many of engineer in more than 50 countries enjoy our Product for new project.
|
Size |
Resolution |
|
3.5" |
320*240 |
|
4.3" |
480*272 |
|
5" |
640*480; 480*272; 800*480 |
|
5.6" |
640*480 |
|
5.7" |
640*480 |
|
7" |
800*480; 800*600; 1024*600 |
|
8" |
800*600; 800*480; 1024*768 |
|
8.4" |
800*600 |
|
10.1" |
1024*600 |
|
10.4" |
800*600 |
|
12.1" |
800*600 |
|
15.1" |
1024*768 |
Appliaction
Widely Used In Many Various Industrial Field in more than 50 Countries.
1. Instrument
2. Civil electronic
3. Medical&Beauty
4. Machinery
5. Electronic Equipment
6. Automation
7. VEHICLE
