Product Details:
Payment & Shipping Terms:
|
| Item Name: | Advertising Display Screens | Brightness: | 1600cd/m² |
|---|---|---|---|
| Pixel Composition: | 1R1G1B | Refresh Frame Frequency: | 60Hz |
| Optimum View Distance: | 6m-30m | Pixel No. On Unit Plate: | 32*16 |
| High Light: | led advertising displays,perimeter advertising boards |
||
Full Color PH6 Indoor Advertising LED Display 1R1G1B Waterproof
Quick Details:
1. Model: PH6
2. Chip Brand: Taiwan Epistar
3. Price: Negotiable
4. Modular Size: 192mm*192mm
5. Contact Email: export@d-kingled.com
6. Pixel Density: 27777dots/m²
Along with the application of new science and technology, new indoor adverting forms are constantly emerging, from traditional advertising led display to single color word scrolling led display screen and to nowadays full color led information display. With the development of led industry, the indoor media advertising forms are becoming more and more fashionable.
The reason why advertising led screen gets wide attention and fast development lies in its advantages. Its advantages include high brightness, low working voltage, low power consumption, long service life, large size, impact resistance and stable performance. The development prospect of the led advertising screen is very bright and it is now developing towards higher brightness, stronger weather fastness, higher luminous density, higher luminous consistency and higher reliability.
The models of indoor full color digital advertising screen include P2.5, P3, P4, P5, P6, P7.62 and P10. The indoor full color led modules all use SMD 3 in 1 encapsulation method, and the most frequently used models are P5 indoor full color digital screen advertising and P6 indoor full color digital screen advertising. Since the visual distance of indoor led advertising display screens is usually limited, generally speaking, 3 to 20 meters, when selecting indoor digital advertising screens, customers should mainly refer the size of the led display and the visual distance. If the size of the led screen advertising is between 4m²and 8m², P5 will be more suitable, and for size of over 10m², P6 will be more suitable.
Technical Parameters of P6 Indoor Advertising Display Screens:
| Model | P6 Indoor Led Advertising Display Screens |
| Pixel Pitch | 6mm |
| Pixel Composition | 1R1G1B |
| Pixel Density | 27777/m² |
| Scanning method | 1/8 |
| Brightness | 1600cd//m² |
| Working Voltage | AC110V±10%, 50Hz-60 Hz |
| Average Power | 300W/m² |
| Max. Power | 900W/m² |
| Pixel No. on Unit Plate | 32*16 |
| Module Size | 192mm×96mm |
| Level up degree | <1mm |
| Viewable Distance | Normally 960mm×960mm×110mm (Can be customized) |
| Viewable Angle | Horizontal: 140°, Vertical: 140° |
| Screen Weight | 40kg/m² |
| Driving Method | Constant current |
| Display Color | 17M~69G colors |
| Display Color | Manual/Automatic/Remote |
| Grey Scale | 256~4096 |
| Refresh Frequency | 300 Hz~2440Hz |
| Refresh Frame Frequency | 60Hz |
| Display Content | TV picture, ads, video, live streaming video, picture and words |
| Display Mode | 640×480, 800×600, 1024×768, 1280×960…1920×1200, 2048×640 |
| Control Method | Synchronous, asynchronous, remote and wireless |
| Transmission Distance | 5E cable≤130M Multimode fibre≤500M monomode fibre≤10KM |
| Transmission Distance | ≥72 hours |
| Service Life of Led | 100,000 hours |
| Mean Time Between Failure | ≥10,000 hours |
| Dispersed Incontrollable Point | <0.01% |
| Continuous Incontrollable Point | No |
| Protecting Technology | Waterproof (Front size IP65, back side IP54), dustproof, antisepsis, antistatic, and has such protection functions of over current, short circuit over voltage and low voltage. |
| Temperature of Use Environment | -20℃~+50℃ |
| Moisture of Use Environment | 10%~90% |
| Certifications | CE, ROHS |
Note: The technical parameters are just for reference, please contact us for details.
More Pictures for Your Reference:
Module Picture:

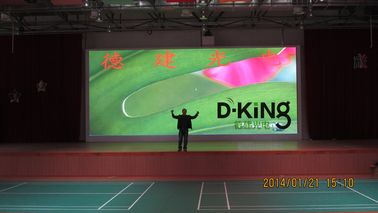

Application Picture:
