P20 LED Video Advertising Led Display 1RGB DIP LED Lamp P20 LED Billboards
Quick Detail:
1, P20 LED billboards is cost effective;
2, P20 outdoor LED screen suits for large size LED billboard;
3, Outdoor P20 LED display is IP65 for outdoor LED displays project;

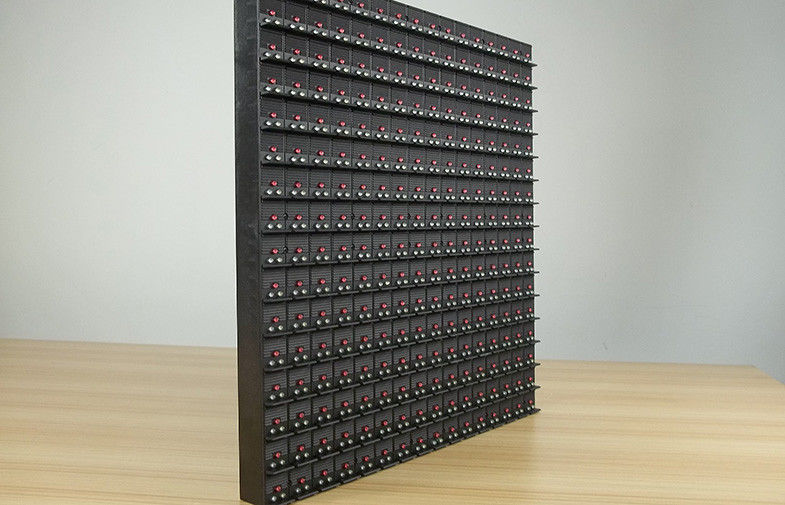

4, LED Module: 320mm x 320mm;

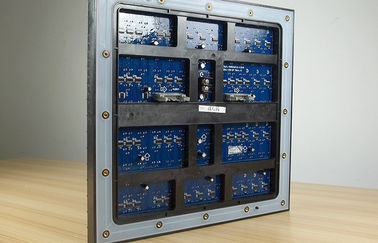

5, LED Cabinet: 960mm x 960mm x 150mm;
6, 3 years warranty
Description:
1, Outdoor LED advertising screens PH20 is utiling large size LED module 320mm x 320mm, enable a more uniform LED cabinet surface;
1, P20 1RGB full color LED display screens is working with control system like Linsn, Nova star, ZDEC,DBstar etc. The LED wall is working automatically power on and power off with time setup.
2, PH20 LED Video Displays is utilizing internal signal and power connection for stable connection;
3. Outdoor P20LED wall is cost effective,expecially suitable for large size LED sign billboards;
4. Outdoor advertising P20 LED display is utilizing high brightness Epistar LED chips to reach up to 8000cd/㎡. The LED video displays present a clear and vivid image, even under direct sunshine;
6, PH20 1RGB Full Color LED Video displays is utizling Epistar LED chips for high quality image and video presentation for large size LED billboards advertising use;
Applications:
On roof of building Full Color LED Display
Mounted on buildingFull Color LED Display
Put on steel pole Full Color LED Display
Cross bridge information Full Color LED Display
Shopping Mall Full Color LED Display
Commercial Advertising Full Color LED Display
Church Full Color LED Display
Road Show Full Color LED Display
High Speed Way Full Color LED Display
Airport Advertising LED displays
Train station Advertising LED displays
Entertainment Bar Advertising LED displays
Stadium Advertising LED displays
Museum Advertising LED displays
Car exhibition Advertising LED displays
Conference room Advertising LED displays
Shopping Mall Advertising LED displays
Street Advertising LED Billboard
Stores LED Advertising Display
Office Building LED advertising Screens
Roof Building Outdoor LED Display Screens
Specifications :
| LED Module Parameter | |
| Pixel pitch (mm) | 20 |
| Pixel configuration | 1R1G1B |
| Encapsulation | DIP346 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 16 x 16 |
| Module pixel | 256 |
| Module size (mm) | 320 x 320 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 960 x 960 x 150 |
| Cabinet resolution (pixels) | 48 x 48 |
| Cabinet pixels (pixels) | 2304 |
| Cabinet material | Steel |
| Cabinet weight (kg) | 50 |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 2500 |
| Brightness(cd/m2) | ≥8000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥18m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | 1/4 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥1000 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Power consumption | Max: 850W/㎡ ; Ave:350W/㎡ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1, P20 LED sign spare parts are of best quality components, like Epistar LED chips, MBI5020, MBI5024 IC driver, Meanwell power supply and Neutric power and signal connectors etc.;
2, P20 advertising LED display is applied as outdoor fixed installation LED display on steel pole,wall building,building roof etc.
3, P20 DIP outdoor advertising LED billboard is of stable waterproof function at IP65. Silicon injection is well done in surface of LED module, tyer plastic sheet is equipped on each module to mount LED module onto LED cabinet, also all outdoor LED walls PCB is printed few layers glue for moistureproof, dustproof and anti-corrosion;
4. Full color P20 LED display is eye catching active advertising effect deliver to more audience and gain more revenues;
5, P20 outdoor full color LED screens is available of automatic brightness adjustment. The LED screens is presenting a vivid and shining LED advertising display in day time and comfortable lower brightness LED walls in night time;
6, Multi signal input: Through video processor, the P16 outdoor screens support signal input like DVI,VGA,HDMI,SID,Camera and VCR etc;
