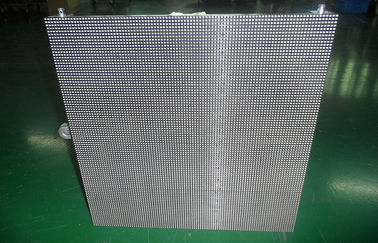

Full Black LEDs Indoor P5 LED Advertising Screens Ulra slim Led Panel Display
Quick Detail:
1. Full black color LEDs;
2. LED Module Size: 240mm x 240mm;
3. LED Cabinet Size: 480mm x 480mm x 85cm;
4, LED Source: Epistar SMD2121
5, Power Supply: Ulra slim YHY and G energy;
6, Cabinet Weight: 8kg/cabinet
Description:
1, P5 indoor LED display screens advertising is of light weight;
2, Non-gaps coonection. P5 advertising LED screens modules 240mm x 240mm seamless mounted on LED cabinet;

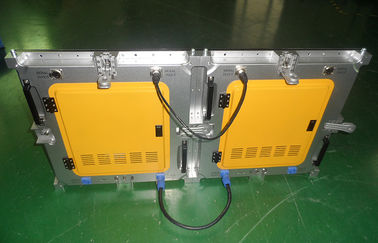

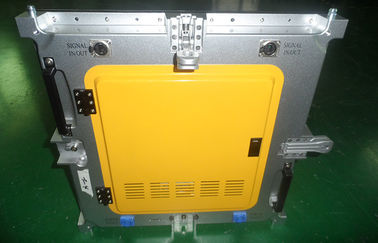

3, This ultra slim P5 indoor LED advertising screens is utilizing die casting aluminum cabinet;
4, Stable structure makes it un-damaged under frequent shipment from one site to next;
5, P5 rental LED Screens utilize full black color LED chips;
6, High resolution: P5 LED panels is being widely choose for indoor rental LED Screens project because of its high resolution;
Applications:
Concert rental LED display
Entertainment events LED screen
Stadium rental LED wall
Fash show stage LED display
Car exhibition LED display
Rental commercial LED display
Commercial Advertising Full Color LED Display
Church Full Color LED Display
Airport Advertising LED displays
Car exhibition Advertising LED displays
Conference room Advertising LED displays
Shopping Mall Advertising LED displays
Street Advertising LED Billboard
Stores LED Advertising Display
Specifications :
| LED MODULE PARAMETER | |
| Pixel pitch (mm) | 5 |
| Pixel configuration | 3 in 1 |
| Encapsulation | SMD2121 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 48 x 48 |
| Module pixel | 2304 |
| Module size (mm) | 240 x 240 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 480 x 480 x 85 |
| Cabinet resolution (pixels) | 96 x 96 |
| Cabinet pixels (pixels) | 9216 |
| Cabinet material | Die Casting Aluminum |
| Cabinet weight (kg) | 10kg |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 40000 |
| Brightness(cd/m2) | ≥1500 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 140°; Vertical 140° |
| Best viewing distance (m) | ≥4m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | 1/10 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 4000:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥1000 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP43 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1, P5 LED screen is of large viewing angle at 140 degree horizontal and vertical;
2, LED screens P5 is utilizing full black color LED chips;
3, Indoor advertising LED screens high contrast ratio:Contrast ratio up to 4000:1 to react real color of the content;
4, P5 indoor LED billboards is utilizing Sum driver IC to reach high refresh frequency and high grey grade;
5, PH5 indoor rental LED displays is being widely choose becase of its cost effective and high resolution;
6, High resolution for indoor rental events that require high quality presentation;
