P16 Full Color Video Advertising Led Display 1RGB for Train station

P16 Full Color Video Advertising Led Display 1RGB for Train station

P16 Full Color Video Advertising Led Display 1RGB for Train station
P16 Full Color Video Advertising Led Display 1RGB for Train station P16 Full Color Video Advertising Led Display 1RGB for Train station P16 Full Color Video Advertising Led Display 1RGB for Train station P16 Full Color Video Advertising Led Display 1RGB for Train station

Large Image :  P16 Full Color Video Advertising Led Display 1RGB for Train station

Product Details:
Place of Origin: China
Brand Name: YUCHIP
Certification: CE,ROHS,FCC,EMC
Model Number: OF-16D
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm
Price: Negotiable
Packaging Details: Flight Case,Wooden Case,Strong Carton Box
Delivery Time: 15-20 Working Days
Payment Terms: T/T
Supply Ability: 5000㎡/Month
Detailed Product Description
High Light:

led video display board

,

commercial led display

P16 Full Color Video Advertising Led Display 1RGB for Train station



Quick Detail:


1, Meanwell power supply;
2, IP65 with waterproof,dustproof and UV resistant;
3, Low price;
4, High quality;
5, P16 1RGB;
6, 3 years warranty.




Description:

1, Outdoor 1RGB  P16 LED video displays is utilizing high brightness Epistar LED chips to reach up to 8000cd/㎡. The LED video screen displays present a clear and vivid image, even under direct sunshine;
2,  P16 full color Advertising LED Display is of high resolution 3906 pixels/㎡ for outdoor advertising LED billboard use;
3,  P16 Advertising LED billboards play an important role in outdoor LED advertising displays for years when electronic LED sign is developed for its high resolution and cost effective advantages;
3,  Outdoor LED advertising screens panel P16 is utiling large size LED module 320mm x 320mm, enable a more uniform LED cabinet surface;
5, P16 1RGB full color LED displays sign is working with control system like Linsn, Nova star, ZDEC,DBstar etc. The LED wall is working automatically power on and power off with time setup.
6, Advertising PH16 full color digital LED billboard is of high contrast ratio at 4000:1, thus LED panels are displaying an active and true color LED advertising effect;



Applications:
Shopping Mall Full Color LED Display
Commercial Advertising Full Color LED Display
Church Full Color LED Display
Road Show Full Color LED Display
High Speed Way Full Color LED Display
Airport Advertising LED displays
Train station Advertising LED displays
On roof of building Full Color LED Display
Mounted on buildingFull Color LED Display
Put on steel pole Full Color LED Display
Cross bridge information Full Color LED Display
Entertainment Bar Advertising LED displays
Stadium Advertising LED displays
Museum Advertising LED displays
Car exhibition Advertising LED displays
Conference room Advertising LED displays
Shopping Mall Advertising LED displays
Street Advertising LED Billboard
Stores LED Advertising Display
Office Building LED advertising Screens
Roof Building Outdoor LED Display Screens


Specifications :

LED Module Parameter
Pixel pitch (mm)16
Pixel configuration1R1G1B
EncapsulationDIP346
Colors matches6:3:1
Module resolution (pixels)20 x 20
Module pixel400
Module size (mm)320 x 320
LED CABINET SPECIFICATION

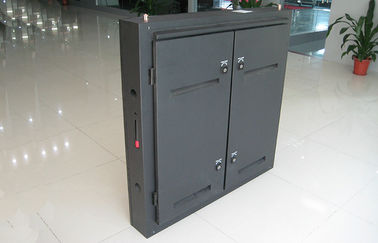

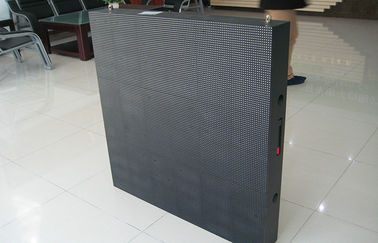

Cabinet size (mm)960 x 960 x 150
Cabinet resolution (pixels)60 x 60
Cabinet pixels (pixels)3600
Cabinet materialSteel
Cabinet weight (kg)50
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2)3906
Brightness(cd/m2)≥8000 (adjustable)
Brightness adjusted100 grade by software or by Auto-optic induced
View angleHorizontal 110°; Vertical 70°
Best viewing distance (m)≥14m
Communication distance(m)<100meter by Internet Cable(without Relay; Multi mode fiber cable < 500m; Single mode
fiber cable < 20km
Display work methodStatic
LED driving methodConstant driving current
Color contrast ratio1800:1
Gray Grade16bit
Display Color439, 804, 651, 110
Refresh Frequency (Hz)≥1000
Picture display methodIntellective control technology , test-itself technology , correct technology, Synchronization
Control
Input signalDVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting )
System operatingWINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP LevelIP65
Working temperature(ºC)-20~+60
Stored temperature (ºC)-30~+80
Operation humidity(RH)0-95%
Display Lifetime(hours)10 years or more( natural environment) 100000 hours( ideal environment)
MaintenanceRear side
Working VoltageAC110 / AC220V±10% 47~63HZ
Power consumptionMax: 850W/㎡ ; Ave:350W/㎡
Out of controlled dot≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave
length are both >10% depart to the normal one)






Competitive advantages:


1, Multi signal input: Through video processor, the P16 outdoor LED screens support signal input like DVI,VGA,HDMI,SID,Camera and VCR etc.
2, Outdoor P16 1RGB LED advertising screens is quite a maturity and most popuar type outdoor full color LED display screens because of its high quality display and cost effective features;
3, P16 DIP outdoor advertising LED billboard is of stable waterproof function at IP65. Silicon injection is well done in surface of LED module, tyer plastic sheet is equipped on each module to mount LED module onto LED cabinet, also all outdoor LED walls PCB is printed few layers glue for moistureproof, dustproof and anti-corrosion;
4, Energy saving: P16 LED video screens outdoor is utilizing 4.2V unique current design which is about energy saving at about 30%;
5, Big P16 LED billboard is available of double back doors for better waterproof, the other point is that clients no need build backward frame to project LED screens from raining;
6, Working with multi function card, the P16 outdoor full color LED screens is available of automatic brightness adjustment. The LED screens is presenting a vivid and shining LED advertising displays in day time and comfortable lower brightness LED video walls in night time;

P16 Full Color Video Advertising Led Display 1RGB for Train station 0P16 Full Color Video Advertising Led Display 1RGB for Train station 1P16 Full Color Video Advertising Led Display 1RGB for Train station 2P16 Full Color Video Advertising Led Display 1RGB for Train station 3
