Waterproof Outdoor Full Color Advertising Led Display 1RGB , P16 LED Signs Boards

Waterproof Outdoor Full Color Advertising Led Display 1RGB , P16 LED Signs Boards

Waterproof Outdoor Full Color Advertising Led Display 1RGB , P16 LED Signs Boards
Waterproof Outdoor Full Color Advertising Led Display 1RGB , P16 LED Signs Boards Waterproof Outdoor Full Color Advertising Led Display 1RGB , P16 LED Signs Boards Waterproof Outdoor Full Color Advertising Led Display 1RGB , P16 LED Signs Boards Waterproof Outdoor Full Color Advertising Led Display 1RGB , P16 LED Signs Boards

Large Image :  Waterproof Outdoor Full Color Advertising Led Display 1RGB , P16 LED Signs Boards

Product Details:
Place of Origin: China
Brand Name: YUCHIP
Certification: CE,ROHS,FCC,EMC
Model Number: OF-16D
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm
Price: Negotiable
Packaging Details: Flight Case,Wooden Case,Strong Carton Box
Delivery Time: 15-20 Working Days
Payment Terms: T/T
Supply Ability: 5000㎡/Month
Detailed Product Description
High Light:

high definition led display

,

commercial led display

Waterproof P16 1RGB Outdoor Full Color Advertising Led Display , P16 LED Signs Boards



Quick Detail:

1, P16 LED sign boards is of low price;
2, P16 LED sign billboards is of high quality;
3, P16 outdoor LED displays is utilizing1RGB LED chips;
4, Meanwell power supply;
5, IP65 with waterproof,dustproof and UV resistant;
6, 3 years warranty.




Description:

1, P16 LED sign boards is of high resolution 3906 pixels/㎡ for outdoor advertising LED billboard use;
2, 1RGB P16 LED video display screens outdoor is utilizing high brightness Epistar LED chips to reach up to 8000cd/㎡. The LED video screen displays present a clear and vivid image, even under direct sunshine;
3, LED billboards P16 plays an important role in outdoor LED advertising screens for years when electronic LED signs is developed for its high resolution and cost effective advantages;

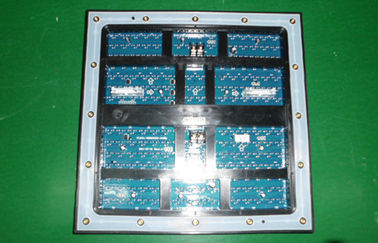

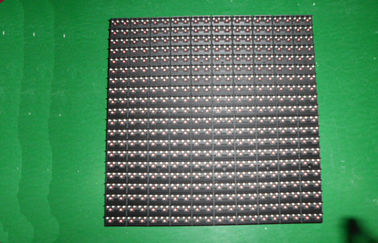

4, LED advertising display panels P16 is utiling large size LED module 320mm x 320mm, enable a more uniform LED cabinet surface;
5, P16 color digital LED billboards is of high contrast ratio at 4000:1, thus LED panels are displaying an active and true color LED display advertising effect;
6, P16 1RGB full color LED walls sign is working with control system like Linsn, Nova star, ZDEC,DBstar etc. The LED video wall is working automatically power on and power off with time setup.


Applications:

Train station Advertising LED displays
On roof of building Full Color LED Display
Mounted on buildingFull Color LED Display
Put on steel pole Full Color LED Display
Cross bridge information Full Color LED Display
Entertainment Bar Advertising LED displays
Stadium Advertising LED displays
Museum Advertising LED displays
Shopping Mall Full Color LED Display
Commercial Advertising Full Color LED Display
Church Full Color LED Display
Road Show Full Color LED Display
High Speed Way Full Color LED Display
Airport Advertising LED displays
Car exhibition Advertising LED displays
Conference room Advertising LED displays
Shopping Mall Advertising LED displays
Street Advertising LED Billboard
Stores LED Advertising Display
Office Building LED advertising Screens
Roof Building Outdoor LED Display Screens


Specifications :

LED Module Parameter
Pixel pitch (mm)16
Pixel configuration1R1G1B
EncapsulationDIP346
Colors matches6:3:1
Module resolution (pixels)20 x 20
Module pixel400
Module size (mm)320 x 320
LED CABINET SPECIFICATION
Cabinet size (mm)960 x 960 x 150
Cabinet resolution (pixels)60 x 60
Cabinet pixels (pixels)3600
Cabinet materialSteel
Cabinet weight (kg)50
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2)3906
Brightness(cd/m2)≥8000 (adjustable)
Brightness adjusted100 grade by software or by Auto-optic induced
View angleHorizontal 110°; Vertical 70°
Best viewing distance (m)≥14m
Communication distance(m)<100meter by Internet Cable(without Relay; Multi mode fiber cable < 500m; Single mode
fiber cable < 20km
Display work methodStatic
LED driving methodConstant driving current
Color contrast ratio1800:1
Gray Grade16bit
Display Color439, 804, 651, 110
Refresh Frequency (Hz)≥1000
Picture display methodIntellective control technology , test-itself technology , correct technology, Synchronization
Control
Input signalDVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting )
System operatingWINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP LevelIP65
Working temperature(ºC)-20~+60
Stored temperature (ºC)-30~+80
Operation humidity(RH)0-95%
Display Lifetime(hours)10 years or more( natural environment) 100000 hours( ideal environment)
MaintenanceRear side
Working VoltageAC110 / AC220V±10% 47~63HZ
Power consumptionMax: 850W/㎡ ; Ave:350W/㎡
Out of controlled dot≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave
length are both >10% depart to the normal one)






Competitive advantages:


1, P16 LED sign boards is enabled multi signal input: Through video processor, the P16 outdoor LED screens display support signal input like DVI,VGA,HDMI,SID,Camera and VCR etc.
2, P16 DIP LED lamp outdoor advertising LED screens is of stable waterproof function at IP65. Silicon injection is well done in surface of LED modules, tyer plastic sheet is equipped on each module to mount LED module onto LED cabinets;
3, P16 outdoor LED video walls PCB is printed few layers glue for moistureproof, dustproof and anti-corrosion;
4, 1RGB full color LED advertising displays screen is quite a maturity and most popuar type outdoor full color LED video display screens because of its high quality display and cost effective features;
5, Working with multi function card, the P16 outdoor full color LED displays is available of automatic brightness adjustment. The outdoor LED screens is presenting a vivid and shining LED advertising displays in day time and comfortable lower brightness LED video walls in night time;

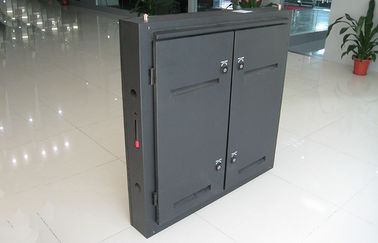

6, Large P16 LED sign billboards is available of double back doors for better waterproof, the other point is that clients no need build backward frame to project full color LED screens from raining;

Waterproof Outdoor Full Color Advertising Led Display 1RGB , P16 LED Signs Boards 0Waterproof Outdoor Full Color Advertising Led Display 1RGB , P16 LED Signs Boards 1Waterproof Outdoor Full Color Advertising Led Display 1RGB , P16 LED Signs Boards 2Waterproof Outdoor Full Color Advertising Led Display 1RGB , P16 LED Signs Boards 3Waterproof Outdoor Full Color Advertising Led Display 1RGB , P16 LED Signs Boards 4Waterproof Outdoor Full Color Advertising Led Display 1RGB , P16 LED Signs Boards 5
