Product Details:
Payment & Shipping Terms:
|
| Product Name: | P5 High Resolution Outdoor Advertising LED Display Clear Image | Module Size: | 160*160mm |
|---|---|---|---|
| Cabinet Size: | 800*800 Mm | Scanning: | 1/8 Scan |
| Application: | Outdoor Advertising | Brightness: | 7500 Nits |
| Cabinet Resolution: | 160*160 | Cabinet Type: | Iron Fixed |
| High Light: | led screen advertising,led advertising billboards |
||

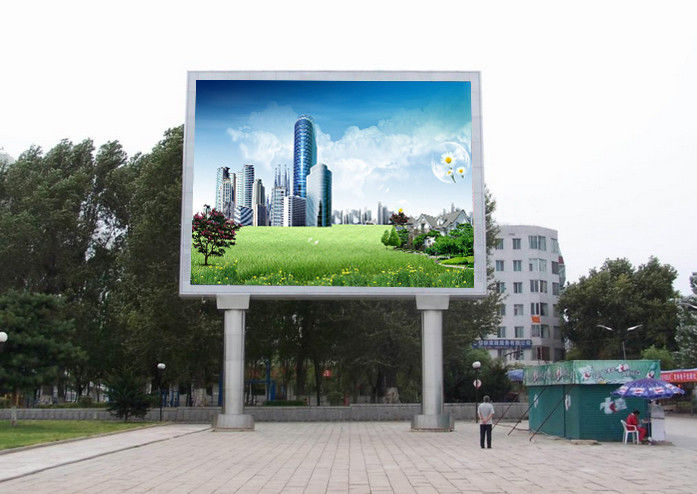

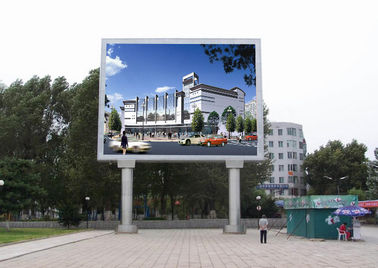

P5 high resolution outdoor advertising LED display clear image
Specifications:
|
Unit module |
Pixel pitch |
5 mm |
|
Pixel density(dots/sqm) |
40000/sqm |
|
|
LED encapsulation |
SMD2727 |
|
|
Driving method |
1/8 |
|
|
Module size(mm) |
160*160mm |
|
|
Resolution of module( dots) |
32*32 |
|
|
Major technical parameters |
Cabinet size |
800*800mm |
|
Brightness |
7500cd/ ㎡ |
|
|
Refresh rate |
>2000HZ |
|
|
Color temperature |
6500K |
|
|
View angle(H/V) |
160°/140° |
|
|
Grey scale |
16bit |
|
|
Brightness adjustment |
256 grade/ Manually/ Automatically |
|
|
Working/ storage temperature |
-20℃~50℃/ -30℃~60℃ |
|
|
Working/ storage humidity |
10％~90％ RH |
|
|
Working voltage |
AC220/110V 50Hz |
|
|
Protect degree |
IP65/IP54 |
|
|
MTBF |
>5000h |
|
|
Life span |
100000h |
|
|
Input Signal |
AV, S-VIDEO, VGA, DVI, HDMI, SDI, DP |
|
|
Operation system |
Windows 7/XP |
|
|
Control distance |
cat-5 data cable:<100m, optical fiber<15km |
Quick details:
Pitch: P5 SMD2727 outdoor
module size: 160*160mm
brightness: 7500 nits
scanning: 1/8
Description:
1. Small pixel pith for high resolution: small pitch will be a trend for outdoor application. Our own design of P5 SMD2727 design goes ahead on the mareket.
2. Good color uniformity: Since 3 LED chips are encapsulated in one lamp, SMD color uniformity is much better than DIP so the showing effect is perfect.
3. Big view angle: SMD view angle is bigger than DIP.Its view angle is 160°for horizontal and 110°for vertical.
4. Anti-low temperature: for very cold areas such as Russian market, we should pay special attention to the cold temperature. So we will use anti-low temperature power suppliers and special heat system to warm the display.
5. Good heat output system for high temperature: For hot ares, heat output system is specially important. Or else, the whole display will become hot and there will be dangerous. So we help clients to reduce current and also make add fans for screen.
6. Energy saving: power consumption is a key factor for LED billboard. BAKO’s LED display is designed with low power consumption to help clients to save energy.
7. High brightness: For outdoor application, brightness is important, especially if the LED display faces the sun directly. BAKO’s outdoor display brightness can be above 7500 nits, completely ensure the requirement for outdoor application.
8. Adjustable brightness: In the daytime, brightness should be high. But in the evening, it should be reduced for traffic safety. BAKO’s LED display can make the brightness adjusted automatically. Also, this method can help to save much energy.
9. Good waterproof protection: Front is IP65 and back is IP54. There is totally no problem for outdoor application.
