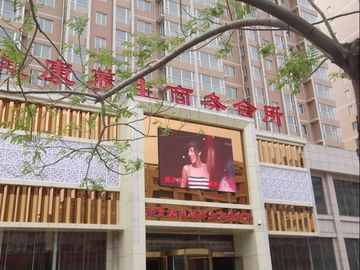

Wall mounted small pitch LED outdoor advertising screens P6 768 * 768mm Cabinet size

Wall mounted small pitch LED outdoor advertising screens P6 768 * 768mm Cabinet size

Wall mounted small pitch LED outdoor advertising screens P6 768 * 768mm Cabinet size
Wall mounted small pitch LED outdoor advertising screens P6 768 * 768mm Cabinet size Wall mounted small pitch LED outdoor advertising screens P6 768 * 768mm Cabinet size

Large Image :  Wall mounted small pitch LED outdoor advertising screens P6 768 * 768mm Cabinet size

Product Details:
Place of Origin: China
Brand Name: BAKO
Certification: CE/ROHS/FCC/SGS
Model Number: BK-P6
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wooden box or flight case
Delivery Time: 20 days after advanced payment
Payment Terms: T/T, Western Union
Supply Ability: 5,000 sqm per month
Detailed Product Description
Product Name: P6 Small Pitch Outdoor SMD LED Display Screen Wall Mounted Installation Module Size: 192*192mm
Cabinet Size: 768*768 Mm Scanning: 1/8 Scan
Application: Outdoor Advertising Brightness: 7500 Nits
Cabinet Resolution: 128*128 Cabinet Type: Iron Fixed
High Light:

led screen advertising

,

led display board for advertising



P6 small pitch Outdoor SMD LED  display screen wall mounted installation





Specifications:



Unit module

Pixel pitch

6 mm

Pixel density(dots/sqm)

27778/sqm

LED encapsulation

SMD3535

Driving method

1/8

Module size(mm)

192*192mm

Resolution of module( dots)

32*32

Major technical parameters

Cabinet size

768*768mm

Brightness

7500cd/ ㎡

Refresh rate

>2000HZ

Color temperature

6500K

View angle(H/V)

160°/140°

Grey scale

16bit

Brightness adjustment

256 grade/ Manually/ Automatically

Working/ storage temperature

-20℃~50℃/ -30℃~60℃

Working/ storage humidity

10%~90% RH

Working voltage

AC220/110V 50Hz

Protect degree

IP65/IP54

MTBF

>5000h

Life span

100000h

Input Signal

AV, S-VIDEO, VGA, DVI, HDMI, SDI, DP

Operation system

Windows 7/XP

Control distance

cat-5 data cable:<100m, optical fiber<15km























































Description:





1. Fast delievery: BAKO is equiped with 6 lines high-speed SMT machines. We can make sure of fast delievery time.



2. Good waterproof protection: Front is IP65 and back is IP54. There is totally no problem for outdoor application.

3. Good color uniformity: Since 3 LED chips are encapsulated in one lamp, SMD color uniformity is much better than DIP so the showing effect is perfect.


4. Anti-low temperature: for very cold areas such as Russian market, we should pay special attention to the cold temperature. So we will use anti-low temperature power suppliers and special heat system to warm the display.


5. Good heat output system for high temperature: For hot ares, heat output system is specially important. Or else, the whole display will become hot and there will be dangerous. So we help clients to reduce current and also make add fans for screen.


6. Energy saving: power consumption is a key factor for LED billboard. BAKO’s LED display is designed with low power consumption to help clients to save energy.


7. High brightness: For outdoor application, brightness is important, especially if the LED display faces the sun directly. BAKO’s outdoor display brightness can be above 7500 nits, completely ensure the requirement for outdoor application.


8. Adjustable brightness: In the daytime, brightness should be high. But in the evening, it should be reduced for traffic safety. BAKO’s LED display can make the brightness adjusted automatically. Also, this method can help to save much energy.


9. Clear image in short view distance: Since the pixel pitch is small, even if the view distance is short in outdoor, the image is still clear.





Competitive Advantage:





1) 48 hours’ ageing in factory before shipment

2) on-site guidance

3) free training

4) solution provider
