Product Details:
Payment & Shipping Terms:
|
| Product Name: | P8 Energy Saving Advertising Outdoor LED Display Long Life Span | Module Size: | 256*256mm |
|---|---|---|---|
| Cabinet Size: | 1024*1024 Mm | Scanning: | 1/4 Scan |
| Application: | Outdoor Advertising | Brightness: | 7500 Nits |
| Cabinet Resolution: | 128*128 | Cabinet Type: | Iron Fixed |
| High Light: | led advertising billboards,led display board for advertising |
||

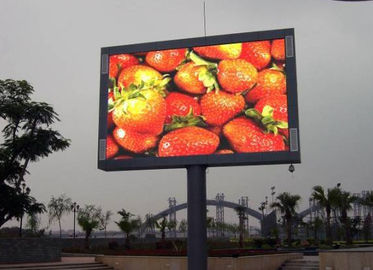

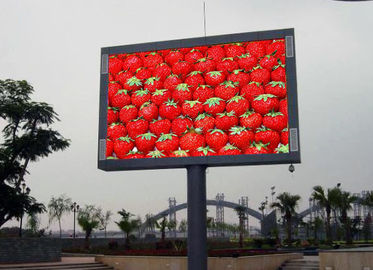

P8 energy saving advertising outdoor LED display long life span
Specifications:
|
Unit module |
Pixel pitch |
8 mm |
|
Pixel density(dots/sqm) |
15625/sqm |
|
|
LED encapsulation |
SMD3535 |
|
|
Driving method |
1/4 |
|
|
Module size(mm) |
256*256mm |
|
|
Resolution of module( dots) |
32*32 |
|
|
Major technical parameters |
Cabinet size |
1024*1024mm |
|
Brightness |
7500cd/ ㎡ |
|
|
Refresh rate |
>2000HZ |
|
|
Color temperature |
6500K |
|
|
View angle(H/V) |
160°/140° |
|
|
Grey scale |
16bit |
|
|
Brightness adjustment |
256 grade/ Manually/ Automatically |
|
|
Working/ storage temperature |
-20℃~50℃/ -30℃~60℃ |
|
|
Working/ storage humidity |
10％~90％ RH |
|
|
Working voltage |
AC220/110V 50Hz |
|
|
Protect degree |
IP65/IP54 |
|
|
MTBF |
>5000h |
|
|
Life span |
100000h |
|
|
Input Signal |
AV, S-VIDEO, VGA, DVI, HDMI, SDI, DP |
|
|
Operation system |
Windows 7/XP |
|
|
Control distance |
cat-5 data cable:<100m, optical fiber<15km |
Quick details:
Pitch: P8 SMD3535 Nationstar lamp
module size: 256*256mm
cabinet size: 1024*1024 mm
brightness: 7500 nits
scanning: 1/4 scanning
Description:
1. Long lifespan: since the LED lamp that we use are top quality, it ensure the the life span of the LED display is longer.
2. Big view angle: SMD view angle is bigger than DIP.Its view angle is 160°for horizontal and 110°for vertical.
3. Good color uniformity: Since 3 LED chips are encapsulated in one lamp, SMD color uniformity is much better than DIP so the showing effect is perfect.
4. Anti-low temperature: for very cold areas such as Russian market, we should pay special attention to the cold temperature. So we will use anti-low temperature power suppliers and special heat system to warm the display.
5. Good heat output system for high temperature: For hot ares, heat output system is specially important. Or else, the whole display will become hot and there will be dangerous. So we help clients to reduce current and also make add fans for screen.
6. Energy saving: power consumption is a key factor for LED billboard. BAKO’s LED display is designed with low power consumption to help clients to save energy.
7. High brightness: For outdoor application, brightness is important, especially if the LED display faces the sun directly. BAKO’s outdoor display brightness can be above 7500 nits, completely ensure the requirement for outdoor application.
8. Adjustable brightness: In the daytime, brightness should be high. But in the evening, it should be reduced for traffic safety. BAKO’s LED display can make the brightness adjusted automatically. Also, this method can help to save much energy.
9. Both front and rear service: For some special application, front service is a must. BAKO makes new design for SMD outdoor LED display.
9. Good waterproof protection: Before shipment, wer make 100% check about waterproofe test to make sure that the water proof is ok.
