Extrusion Aluminum PH5 Rental LED Screen, Indoor Video led billboards

Extrusion Aluminum PH5 Rental LED Screen, Indoor Video led billboards

Extrusion Aluminum PH5 Rental LED Screen,  Indoor Video led billboards
Extrusion Aluminum PH5 Rental LED Screen,  Indoor Video led billboards Extrusion Aluminum PH5 Rental LED Screen,  Indoor Video led billboards Extrusion Aluminum PH5 Rental LED Screen,  Indoor Video led billboards Extrusion Aluminum PH5 Rental LED Screen,  Indoor Video led billboards

Large Image :  Extrusion Aluminum PH5 Rental LED Screen, Indoor Video led billboards

Product Details:
Place of Origin: China
Brand Name: YUCHIP
Certification: CE,ROHS,FCC,EMC
Model Number: IR-5S3
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm
Price: Negotiable
Packaging Details: Flight Case,Wooden Case,Strong Carton Box
Delivery Time: 15-20 Working Days
Payment Terms: T/T
Supply Ability: 5000㎡/Month
Detailed Product Description
High Light:

concert led screen

,

led full color screen

Extrusion Aluminum PH5 Rental LED Screen,  Indoor Video led billboards​







Quick Detail:

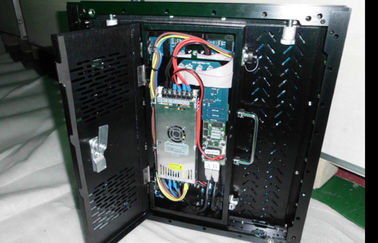

1, Extrusion aluminum LED cabinet;

2. LED Module Size: 240mm x 240mm;Extrusion Aluminum PH5 Rental LED Screen,  Indoor Video led billboards 0Extrusion Aluminum PH5 Rental LED Screen,  Indoor Video led billboards 1

3. LED Cabinet Size: 480mm x 480mm x 65cm;

4, LED Source: Epistar SMD2121

5, Power Supply: Ulra slim YHY and G energy;

6, Cabinet Weight: 8kg/cabinet







Description:





1, Extursion aluminum indoor rental LED screens cabinet is of lighter weight;

2, Stable structure makes it un-damaged under frequent shipment from one site to next;

3, P5 Rental LED Screens utilize full black color LED chips;

4, High resolution: P5 LED panels is being widely choose for indoor rental LED Screens project because of its high resolution;

5, P5 indoor LED display screens rental is of light weight for hanging up installation;

6, Good heat disppitation,no fans design, noiseless.







Applications:

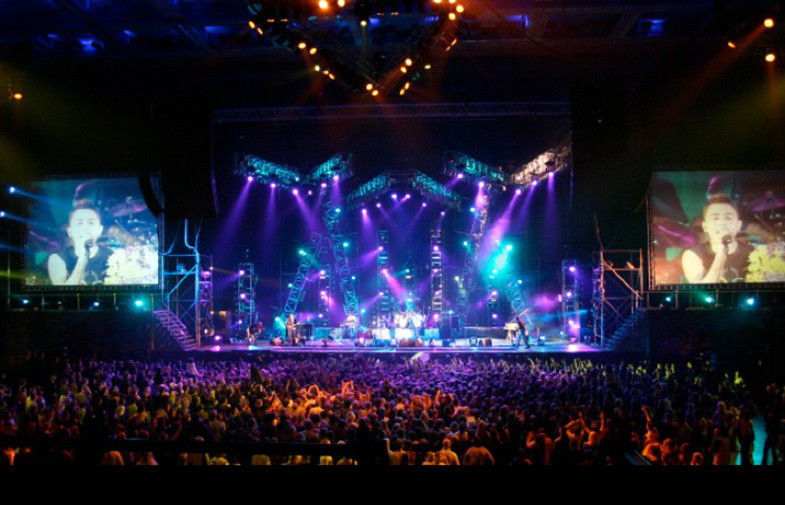

Concert rental LED display

Entertainment events LED screen

Stadium rental LED wall

Fash show stage LED display

Car exhibition LED display

Rental commercial LED display











Specifications :



LED MODULE PARAMETER
Pixel pitch (mm) 5
Pixel configuration 3 in 1
Encapsulation SMD2121
Colors matches 6:3:1
Module resolution (pixels) 48 x 48
Module pixel 2304
Module size (mm) 240 x 240
LED CABINET SPECIFICATION
Cabinet size (mm) 480 x 480 x 85
Cabinet resolution (pixels) 96 x 96
Cabinet pixels (pixels) 9216
Cabinet material Die Casting Aluminum
Cabinet weight (kg) 6.5kg
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 40000
Brightness(cd/m2) ≥1500 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 140°; Vertical 140°
Best viewing distance (m) ≥4m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable < 500m;
Single mode fiber cable < 20km
Display work method 1/10 Scan
LED driving method Constant driving current
Color contrast ratio 4000:1
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥1000
Picture display method Intellective control technology , test-itself technology , correct technology,
Synchronization Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor
converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP43
Working temperature(ºC) -20~+60
Stored temperature (ºC) -30~+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment)
100000 hours( ideal environment)
Maintenance Rear side
Working Voltage AC110 / AC220V±10% 47~63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the
wave length are both >10% depart to the normal one)









Competitive advantages:



1, Extrusion aluminum cabinet main feature is ultra light weight at 6.5kg per cabinet, making P5 indoor rental LED displays suit for large size rental use;

2, High contrast ratio:Contrast ratio up to 4000:1 to react real color of the content;

3, Utilizing Sum driver IC to reach high refresh frequency and high grey grade;

4, Large viewing angle at 140 degree horizontal and vertical;

5, Full black color LED chips enable better uniform in brightness and color;

6, P5 indoor rental LED wall is being widely used for large size rental projects for its rental ED display structure and cost effective advantages.



Extrusion Aluminum PH5 Rental LED Screen,  Indoor Video led billboards 2Extrusion Aluminum PH5 Rental LED Screen,  Indoor Video led billboards 3
