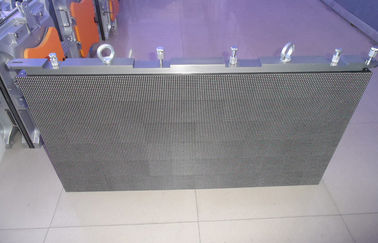

Full Color Rental Led Screen for Conference Stage With Extrusion Aluminum
Quick Detail:
1. LED Source: Epistar SMD2121
2, LED driver IC, Sum IC with high refresh frequency and grey grade;
3. LED Module Size: 250mm x 250mm;
4. LED Cabinet Size: 500mm x 500mm x 100cm;
5, Cabinet Weight: 8kg/cabinet
6. Contrast Ratio:4000:1
Description:
1, P3.91 Rental LED Display is utilizing full black color LED chips to reach pure and true color effect;
2, Stable: Die casting aluminum structure,stable for frequent shipment during rental cases use;
3, High resolution: P3.91 LED panels is being widely choose for indoor rental LED Screens project because of its high resolution;
4, P3.91 indoor LED screens rental is of light weight for hanging up installation;
5, Ultra slim: Rental LED display is designed at 100mm thickness;

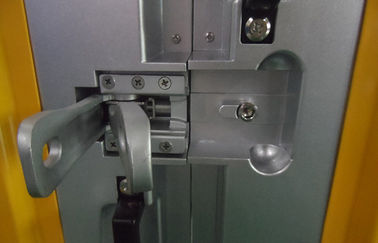

6, Fast and easy assembly: 4 set fast lockers equipped on each LED cabinet for seamless connection between cabinets;

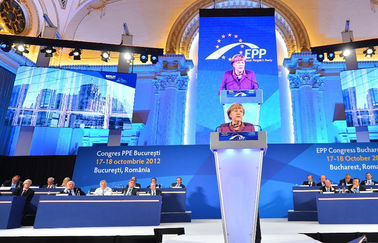

Applications:
Concert rental LED display
Entertainment events LED screen
Stadium rental LED wall
Fash show stage LED display
Car exhibition LED display
Rental commercial LED display
Specifications :
| LED MODULE PARAMETER | |
| Pixel pitch (mm) | 3.91 |
| Pixel configuration | 3 in 1 |
| Encapsulation | SMD2121 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 64 x 64 |
| Module pixel | 4096 |
| Module size (mm) | 250 x 250 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 500 x 500 x 100 |
| Cabinet resolution (pixels) | 128 x 128 |
| Cabinet pixels (pixels) | 16384 |
| Cabinet material | Extrusion Aluminum |
| Cabinet weight (kg) | 8kg |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 65536 |
| Brightness(cd/m2) | ≥1500 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 140°; Vertical 140° |
| Best viewing distance (m) | ≥3.5m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | 1/16 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 4000:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥1000 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP43 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |

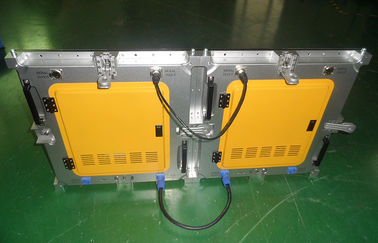

| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1, Full black color LED chips;
2, Contrast ratio up to 4000:1 to react real color of the content;
3, Utilizing Sum driver IC to reach high refresh frequency and high grey grade;
4, Large viewing angle at 140 degree horizontal and vertical;
5, High resolution for indoor rental events that require high quality presentation;
6,Seamless connection of LED modules to show a beautiful appearance and playing effect;
