DIP P16 Multi Function 1R1G1B Rental Led Screen for Sporting Stadium
Quick Detail:
1, LED Chips: Epistar;
2, LED Driver IC: MBI5020,MBI5024;
3, LED Power Supply: Meanwell;
4, LED Module Size: 320mm x 320mm;
5, Haning up structure;
6, High refresh frequency for sporting stadium live broadcast use;
Description:

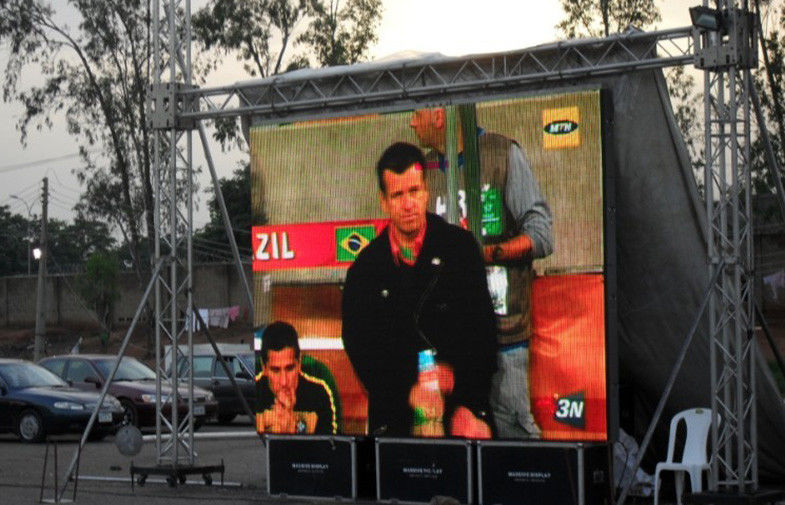

1, Multi function LED display is designed for both stadium LED displays and rental LED screens use;

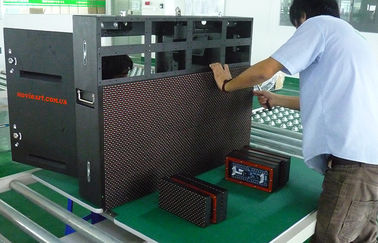

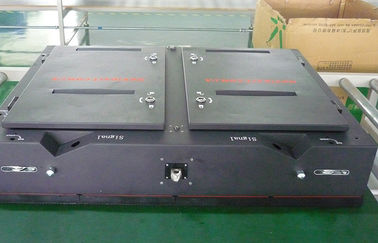

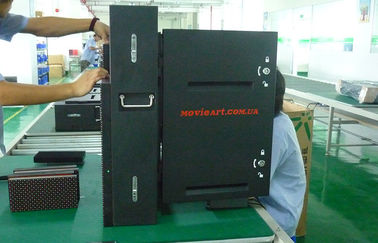

2, It's equipped rental LED displays structure like strong hanging pole,fast lockers,hanging bar and bottom pad etc;
3, It's equipped stadium sporting LED screens structure like soft LED module mask,soft pillow, adjustable back brackets;
4, This multi function LED screen is of high refresh frequency up to 2800HZ;
5, Flight case package for movable use in different events and sites;
6, LVP605S video process is equipped for multi signal input like HDMI,SDI,Camera,TV etc.
Applications:
Concert rental LED display
Entertainment events LED screen
Stadium rental LED wall
Fash show stage LED display
Car exhibition LED display
Rental commercial LED display
Specifications :
| LED MODULE PARAMETER | |
| Pixel pitch (mm) | 16 |
| Pixel configuration | 1R1G1B |
| Encapsulation | DIP346 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 20 x 20 |
| Module pixel | 400 |
| Module size (mm) | 320 x 320 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 960 x 960 x 160 |
| Cabinet resolution (pixels) | 60 x 60 |
| Cabinet pixels (pixels) | 3600 |
| Cabinet material | Steel/Aluminum |
| Cabinet weight (kg) | 50 |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 3906 |
| Brightness(cd/m2) | ≥8000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥14m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | Static |
| LED driving method | Constant driving current |
| Color contrast ratio | 4000:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥2800 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1, Multi function use in sporting stadium and hanging up in events;
2, Cost effective compared with buying stadium LED screen and rental LED video walls separately;
3, High contrast ratio:Contrast ratio up to 4000:1 to react real color of the content;
4, Utilizing MBI5020/MBI5024 driver IC to reach high refresh frequency and high grey grade;
5, IP65 waterproof for both outdoor and indoor use;
6, High brightness up to 8000cd per square meters, insure a clear and vivid image and video display even direct sunshine light.
