Die-casting High Resolution P5 LED display Board Features:
P5 Stage LED display Board module led matrix screen Performance stage led background display is a kind of SMD 3in1 indoor full color LED display. It is specially designed for the indoor High Definition shows. LED lamp adopts standard 3in1 SMD technology. Every light unit is composed by red, green and blue color so the colors of the display can reach 1.07 billion kinds.
P5 Stage LED display Board supports usual VGA and DVI tradational video signal, also specially supports HDMI video signal and so on. In addition, it can receive and display video programs, such as TV programs, VCD or DVD, living show etc.
The products has high reliability, saturated and uniform color, hight brightness, low consumption, long service life and with wide angel sight. So the SMD full-color 3 in 1 indoor LED display is widely used in many indoor sites, such as show rooms, coffee house, hotel, stage and so on.
P5 Stage LED display Board can display colorful dynamic and static images in real time with perfect display effect. Thus, this LED display is the most significant display in all indoor full color screens.
Description:
1, Stable structure makes it un-damaged under frequent shipment from one site to next;
2, High resolution: P5 LED panels is being widely choose for indoor rental LED Screens project because of its high resolution;
3, P5 indoor LED display screens rental is of light weight for hanging up installation;
4, P5 Rental LED Screens utilize full black color LED chips;
5, Good heat disppitation,no fans design, noiseless.
6, Extursion aluminum indoor rental LED screens cabinet is of lighter weight;
Specifications :
| LED MODULE PARAMETER | |
| Pixel pitch (mm) | 5 |
| Pixel configuration | 3 in 1 |
| Encapsulation | SMD2121 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 48 x 48 |
| Module pixel | 2304 |
| Module size (mm) | 240 x 240 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 480 x 480 x 85 |
| Cabinet resolution (pixels) | 96 x 96 |
| Cabinet pixels (pixels) | 9216 |
| Cabinet material | Die Casting Aluminum |
| Cabinet weight (kg) | 6.5kg |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 40000 |
| Brightness(cd/m2) | ≥1500 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 140°; Vertical 140° |
| Best viewing distance (m) | ≥4m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | 1/10 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 4000:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥1000 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP43 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1, Extrusion aluminum cabinet main feature is ultra light weight at 6.5kg per cabinet, making P5 indoor rental LED displays suit for large size rental use;
2, High contrast ratio:Contrast ratio up to 4000:1 to react real color of the content;
3, Utilizing Sum driver IC to reach high refresh frequency and high grey grade;
4, Large viewing angle at 140 degree horizontal and vertical;
5, Full black color LED chips enable better uniform in brightness and color;
6, P5 indoor rental LED wall is being widely used for large size rental projects for its rental ED display structure and cost effective advantages.
Die-casting High Resolution P5 LED display Board Module:
Die-casting High Resolution P5 LED display Board Cabinet:
Die-casting High Resolution P5 LED display Board Cabinet is Maintenance Led Display

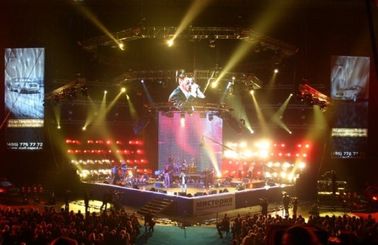

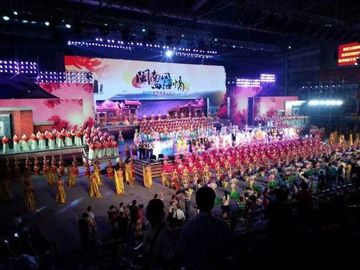

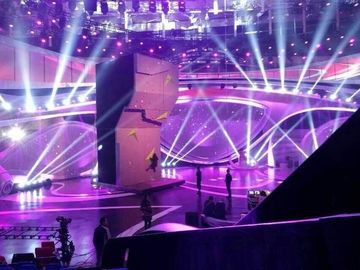

YUCHIP Stage Led Display Part of The Case:
