Die Casting Aluminum P6 Rental LED Screen for Concerts Events
Quick Detail:
1, Die casting aluminum rental LED screens structure;
2, LED Source: SMD3528
3, Module: 192mm x 96mm;
3. Cabinet: 576mm x 576mm x 65cm;
4. Hanging up on truss and standing on floor;
5. Flight case package;
6. Fast lockers equipped on top and bottom, left and right side of each cabinet;
Description:

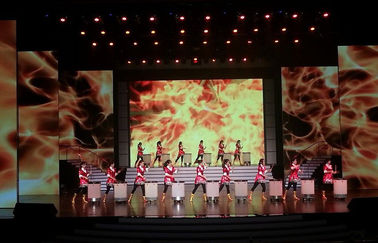

1, P6 die casting aluminum rental LED display is widely used for concerts,events,TV studios etc.
2, Ultra light weight: Utilizing die casting aluminum LED cabinets;
3, Stable quality: Die casting aluminum LED display is of high quality for frequent movement from one site to next;
4, Ultra slim: Rental LED display is designed at 65mm thickness;
5, Fast and easy assembly: 4 set fast lockers equipped on each LED cabinet for seamless connection between cabinets;
6, Easy handling: With ultra light weight and fast lockers features, the LED cabinet can be easily assembled and dismantled by one single person;
Applications:
Concert rental LED display
Entertainment events LED screen
Stadium rental LED wall
Fash show stage LED display
Car exhibition LED display
Rental commercial LED display
Specifications :
| LED MODULE PARAMETER | |
| Pixel pitch (mm) | 6 |
| Pixel configuration | 3 in 1 |
| Encapsulation | SMD3528 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 32 x 16 |
| Module pixel | 512 |
| Module size (mm) | 192 x 96 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 576 x 576 x 90 |
| Cabinet resolution (pixels) | 96 x 96 |
| Cabinet pixels (pixels) | 9216 |
| Cabinet material | Aluminum |
| Cabinet weight (kg) | 12.5kg |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 27777 |
| Brightness(cd/m2) | ≥15000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 140°; Vertical 140° |
| Best viewing distance (m) | ≥5m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | 1/10 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥1000 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP43 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1. Stable quality: Professionally supplied LED screen to over 80 countries and installed thousands projects in 10 years;
2. Innovation: Carefully listen to customer need and create improved LED display products to support local LED sign market development;
3. Trusted service: Local cooperation distributors in Italy,Poland,Malaysia and Thailand; 24/7 LED experts online support; LED engineer on-site support;
4. Strong supply ability: 5000㎡ per month LED display production and regular products in stock for quick delivery;
5. Reasonable price: Profit back to customer for long term mutual development cooperation;
6, P6 Rental LED Screens die casting aluminum structure makes it quite a hot choose for indoor rental LED displays project.
