High Brightness Double Strip Outdoor Flexible LED Screen P10 Advertising

High Brightness Double Strip Outdoor Flexible LED Screen P10 Advertising

High Brightness Double Strip Outdoor Flexible LED Screen P10 Advertising
High Brightness Double Strip Outdoor Flexible LED Screen P10 Advertising

Large Image :  High Brightness Double Strip Outdoor Flexible LED Screen P10 Advertising

Product Details:
Place of Origin: Shenzhen ,China
Brand Name: LanGao
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: LGP10
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm. / 1 piece
Packaging Details: Plywood or Flight Case
Delivery Time: 10-20 days
Payment Terms: T/T, L/C, ,Paypal
Detailed Product Description
Usage: Outdoor Tube Chip Color: Full Color
Display Function: Video Pixels: 10mm
Brightness: 6000 To 8000cd/sqm Protection Leve: IP65
High Light:

curved LED display

,

flexible LED display

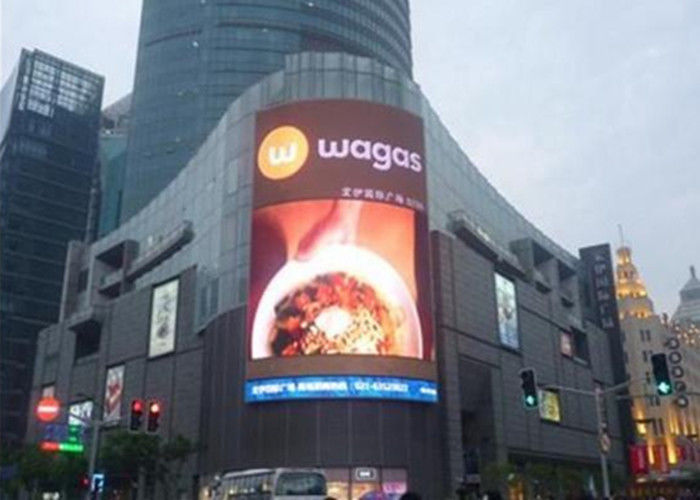

P10 Outdoor Shopping Mall Advertising Flexible LED Screen Display Double Strip


 Outdoor Flexible LED Screen  –P6.P7.62.P8.P10.P15.625.P16.P18.75.P20.P25.P31.25 P31.25mm can be quickly rolled up for shipping and unroll for rapid deployment. Multiple rigging options adapt Outdoor Flexible Curtain  LED Display  for permanent or temporary installations.LED Display is ultra-slim, flexible mesh construction offers the perfect combination of design flexibility and speed of deployment. Outdoor Flexible  LED Display -P31.25mm is ultra-slim, flexible mesh construction offers the perfect combination of design flexibility and speed of deployment. The curve only only can be formed into any shape or molded over any object, but also can equally be deployed as a flat LED video screen.

1. we have the newest design of cabinet, ompared with the traditional cabinet,the Die-casting Aluminum cabinet has higher precision and  strength , so p6 indoor led large screen can be used for many time withoutchanging cabinet shape .

2. the display is high cost-effective,you can use indoor,also can use outdoor at  night,because it is waterproof.

3. Selection of high quality LED chips, it has wide angle, good flatness, strong anti-static, slow brightness degradation and high wavelength stability.

4. Seamless design:Gloshine exhibition patented kit design well controlled splice error between modules within ±0.1mm; easy to install, can be customized to any shape as requested.

5. Delicate picture:with the nonlinear correction technology creating a perfect display, vivid and various animation effect, smooth and realistic video effect.



Pixel Pitch

10mm

pixel Density

10000dot/m2

Pixel Configuration

SMD 3528(white/black), SMD3535, DIP346

Cabinet material

Die-casting aluminum

Cabinet Size

640mm*640mm*100mm

Cabinet Resolution

64*64dot

Cabinet Weight

7.5-20Kg(depending on different models)

Max Power Consumption

1000W/m2

Average Power Consumption

500W/m2

Drive Type

1/4 Scan Constant Current

Driver IC

MBI5224

Power supply

Meanwell 5V55A

Brightness

1800cd/m2

Color Temperature

6500-9500K

Best Viewing Distance

5m-30m

Cray Scale

14bit

Color Scale

36bit

Refresh Rate

>1200Hz

Best Viewing Angle

Horizontal 120°,Vertical 120°

Color Conformity

<4°

Control Mode

Synchronous control by computer

Conmmunication Distance

Cat5 network cable transmission:100meters;Multimode Optical

Malfunction Dot Rate

<1/10000

Average No Failure Time

>10000H

Life-Span

>100000H

Working Voltage

AC220V/50HZ,AC110V/60HZ optional

Working Temperature

-20°C- +60°C

Working Humidity

10%-90%




Advantage :


1. Waterproof design, completely outdoor use.
2. Easy for assembling and connection with the connector added.
3. High color uniformity and clear image can bring you a vivid audio visual effect.
4. Both front and rear access are available.
5. Good LED Chips, with large viewing angle, lowe power consumption and good color uniformity.
6. Easy for maintenance.
