P4 Black Facing Indoor Flexible Led Display High Refresh Rate 62500 Dots

P4 Black Facing Indoor Flexible Led Display High Refresh Rate 62500 Dots

P4 Black Facing Indoor Flexible Led Display High Refresh Rate 62500 Dots
P4 Black Facing Indoor Flexible Led Display High Refresh Rate 62500 Dots P4 Black Facing Indoor Flexible Led Display High Refresh Rate 62500 Dots P4 Black Facing Indoor Flexible Led Display High Refresh Rate 62500 Dots

Large Image :  P4 Black Facing Indoor Flexible Led Display High Refresh Rate 62500 Dots

Product Details:
Place of Origin: Shenzhen China
Brand Name: S&B
Certification: CE, RoHS, CCC
Model Number: SBI-P4
Warranty time:: 42 months
Payment & Shipping Terms:
Minimum Order Quantity: 12 sqm
Price: negotiatable
Packaging Details: Plywood case; flight case
Delivery Time: 20~25 days
Payment Terms: T/T
Supply Ability: 5000sq.meter / Month
shape option: round, convex, concave
Detailed Product Description
Pixel Density: 62500 Dots / M2
High Light:

flexible led display screen

,

flexible led display

Wider Viewing Angle Curve Shaped P4 Black Facing Indoor Flexible Led Display High Refresh Rate





2011 Asian cup LED supplier





Description of Curve Display:



Curve LED display provides a wider viewing angle.

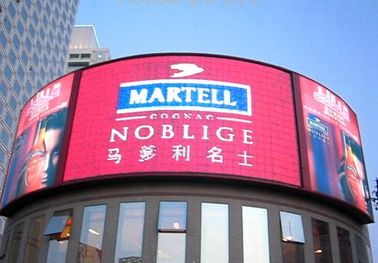

Curve LED display is to match the shape of the architecture to catch more attention of the audience.









Application:

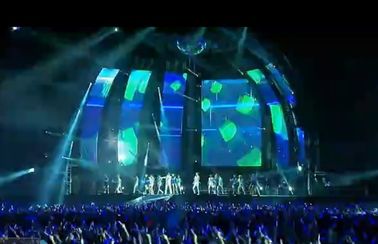

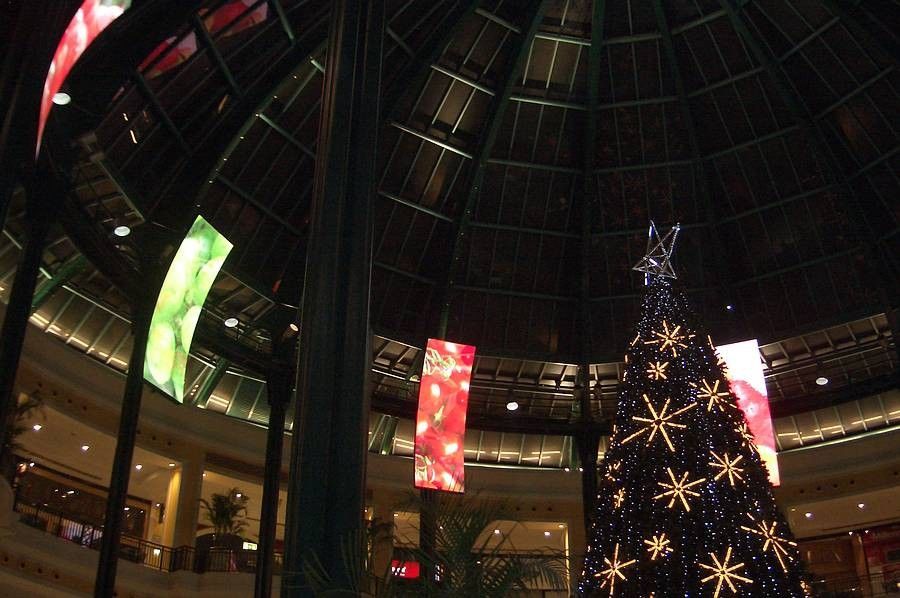

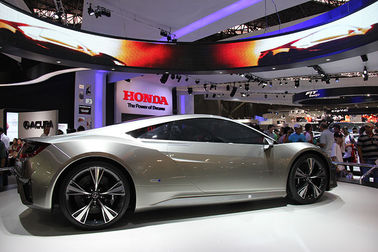

Commercial advertising, Stadium perimeter,

mobile media, night club, entertainment events,

business establishments, such as banks,

stock exchange centers, bus station, schools,

telecommunications, customs, stadiums, studio,

shopping malls, railways, airports, harbors, etc;





Advantage:



1. High Contrast ratio: 4000:1

2. First-class LED chip

3. Clear vivid image quality

4. Long life time

5. Easy Installation & Operation

6. Convenient Servicing





                SBI-P4 (Pitch 4mm indoor full color-1/16 scan)

Technique SMD
Pixel structure 1R1G1B 3in1
Pixel pitch  4mm
Pixel density 62,500 dots/㎡
Luminance 2,500cd/㎡
Module dimension 128mm(W) * 128mm(H)
Module resolution 32 pixel(W) * 32 pixelmm(H)
Cabinet dimension 512 * 512mm
Cabinet resolution 128 * 128
Cabinet area 0.262 sq.meter
Optimal visual distance >3m
Visual angel 140 degree (H/V)
Max power consumption ≤1500w / ㎡
Average power consumption ≤850w / ㎡
Brightness adjustment Adjust according to the enviroment
brightness software (0%-100%adjustable)
Gray scale point by point 4096 gray gradelevels of
each color,16 bits γ correction avilable
Drive mode 1/16 dynamic scan, constant current
Frame frequency ≥60HZ
Refresh frequency ≥1000HZ
Input voltage AC 90~260 volts
Operation temperature ﹣40℃~ +60℃
Operation humidity 10%~90%
Input signal S-video, RF, RGB, Yuv, YC, composite…
Control system  DVI card + master control card + receiver card
MTBF >5000 hrs
Life span (50% brightness) 100,000 hrs
Malfunction dot rate 1/10000
Ingress protection rate IP31



P4 Black Facing Indoor Flexible Led Display High Refresh Rate 62500 Dots 0
