P16 Full Color Flexible Led Screens Convex Outdoor Billboard Display

P16 Full Color Flexible Led Screens Convex Outdoor Billboard Display

P16 Full Color Flexible Led Screens Convex Outdoor Billboard Display
P16 Full Color Flexible Led Screens Convex Outdoor Billboard Display P16 Full Color Flexible Led Screens Convex Outdoor Billboard Display P16 Full Color Flexible Led Screens Convex Outdoor Billboard Display

Large Image :  P16 Full Color Flexible Led Screens Convex Outdoor Billboard Display

Product Details:
Place of Origin: Shenzhen China
Brand Name: S&B
Certification: CE, RoHS, CCC
Model Number: SBO-P16
Warrranty: 42 months
Payment & Shipping Terms:
Minimum Order Quantity: 24 sqm
Price: Negotiable
Packaging Details: Plywood case; flight case
Delivery Time: 20~25 days
Payment Terms: T/T
Supply Ability: 5000 sq.meter / Month
Detailed Product Description
Screen Shape: Arch ,concave,convex,etc.
High Light:

flexible led display screen

,

flexible led curtain

Customized P16 Full Color Flexible Led Screens Convex Concave Arch Style Outdoor Billboard Display




2011 Asian cup and 2012 FIFA LED supplier



1. CE&RoHS certificate

2. 36 months warranty and Life long free tech-support

3.Excellent contrast ratio, high resolution/high definition

4.Perect uniformity and no mosaic

5. Waterproof IP65

6. Light weight and easy to install

7. Available models: P10, P12, P16, P20, P25, P 31.25, ect.



Application:

Commercial advertising, Stadium perimeter, mobile media, night club, entertainment events, business establishments, such as banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio, shopping malls, railways, airports, harbors, etc;



Advantage:

1. High Contrast ratio: 4000:1

2. First-class LED chip

3. Clear vivid image quality

4. Long life time

5. Easy Installation & Operation

6. Convenient Servicing



SBO-P16 (Pitch 16mm outdoor full color)

Colour temperature

5000~9000 k

Pixel structure

φ5 oval lamp, 2R1G1B

Pixel pitch

16mm

Pixel density

3, 906 dots/㎡

Luminance

6, 500cd/㎡

Module dimension

256mm(W) * 128mm(H)

Module resolution

16 pixel(W) * 8 pixel mm(H)

Cabinet dimension

1024 * 768mm

Cabinet resolution

64 * 48

Cabinet area

0.786 sq. meter

Optimal visual distance

>15m

Visual angel

110 / 50 degree (H/V)

Max power consumption

≤1000w / ㎡

Average power consumption

≤600w / ㎡

Brightness adjustment

Adjust according to the environment

brightness software (0%-100%adjustable)

Gray scale

point by point 4096 gray grade levels of

each color, 16 bits γ correction available

Drive mode

Static, constant current

Frame frequency

≥60HZ

Refresh frequency

≥1000HZ

Input voltage

AC 90~260 volts

Operation temperature

﹣40℃~ +65℃

Operation humidity

10%~90%

Input signal

S-video, RF, RGB, Yuv, YC, composite…

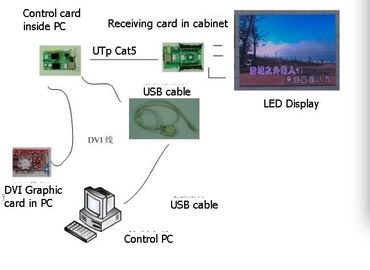

Control system

DVI card + master control card + receiver card

MTBF

>5000 hrs

Life span (50% brightness)

100, 000 hrs

Malfunction dot rate

1/10000

Ingress protection rate (Front/ rear)

IP65 / IP54

Cabinet material

Epoxy paint coated, aluminum / iron

Application:

Rental / Permanent installation available
