Pixels: | 10mm | Pixel Density(dots/m2: | 6944 |
---|---|---|---|
Brightness(cd/m2): | ≥7000 | Protection Level: | IP65 |
LED Type: | DIP346 | Working Temperature: | -40 To 60°C |
Gray Grade: | 8-12 Bits | Contrast: | 1000:1 |
High Light: | dynamic led display,HD led screen |

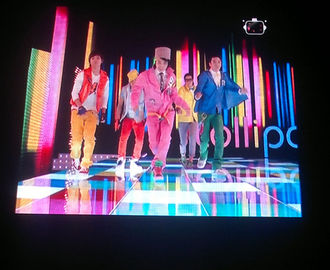

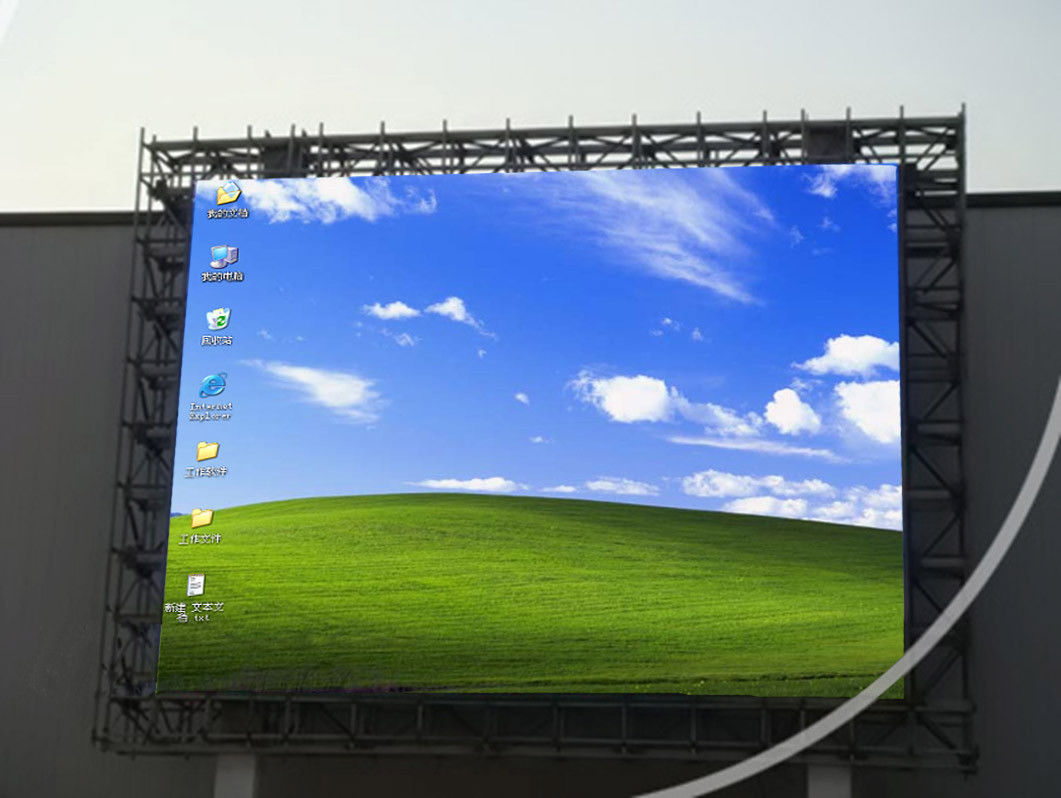

HD High Brightness Large P10 Advertising Outdoor LED Display For Rental
Advantages:
(1) Adopt the high quality LED tubes with black appearance, high brightness, less lumens depreciation, broaden viewing angles in horizontal and vertical.
(2) Use private mold and special texture design on the surface, choose the 100 % PC as the kit materials with the characteristics of: stable shapes, non-crackle, good tenacity, and high evenness for even split joint,, which is properly long-time used for outdoor.
(3) Fire protection grade 94 ¨CV0, UV proof, resistance of high and low temperature, and acid base salty mist.
(4) The whole raven is uniformity, contrast ratio of the screen is very high, white balance is conformity, displaying color is uniformity, and the picture definition is high.
Characteristics of Displaying effects:
(1) High refresh rate, the scanning LED Screen can reach more than 2000 Hz, the static screen can reach more than 4000 Hz, The above standard can reach the radio and television playing grade.
(2) High grey grade, the scanning screen can reach 8192 grade, the screen picture will be extremely soft and vivid.
(3)The best uniformity, we adopt the color and brightness revised technology,. The uniformity can reach the best level. The definition of showing picture is very high
Characteristics of Rental design structure:
(1) Adopt the die casting way to produce the cabinet. The dimensional accuracy is very high. The split joint effect is perfect
(2) The weight of the cabinet is very light and installation way is very simple. The former two can satisfy the customer's requirement of quick dismantle and installation.
Specifications:
Model NO: ZCLED-O-F-P10 | |
Pixel pitch | 10mm |
Module dimension | 160*160mm |
Cabinet dimension | 960mm*960mm |
Pixel Density | 10000 Dots/sqm |
LED standard | DIP346 3 in 1 R:625-628nm G:523-525nm B:470-472nm |
Brightness | 7500cd/ sqm |
Protection level | IP65 |
Pixel configuration | 1R1G1B |
Control mode | Synchronous/Asynchronous |
Module/Resolution | 16*16dots |
Cabinet/Resolution | 96*96dots |
Module/Cabinet | 6*6pcs |
Driving method | constant driving 1/4 scan |
Viewing angle | H:110° V:110° |
The optimal viewing distance | 10-100m |
Power Consumption | Max.600w/ sqm |
Average.200w/sqm | |
Refresh rate | ≥800Hz |
FAQ:
Usage Considerations of LED Display
1. Switching sequence
1) screen switching sequence:
on: first turn on the computer, then screen
off: first shut off screen, then computer.
2) Interval of switching LED display must be greater than 1 minute.
2. Ambient temperature
When ambient temperature is too high or cooling condition is bad, users had better not to turn on the screen for a long time.
Screen shall be installed in temperature from-10 °C to 40 °C.Over environment temperature range, temperature control equipment must be installed.
It is forbidden to install LED display near any heat source.
3. Ambient humidity
When installing screen, ambient relative humidity should be in the range from 30% to 70%.It is prone to get static electricity when the indoor humidity is below 30%;
when the indoor humidity is higher than 70%, electronic components are easy to get damp.
4. Corrosive gas environment
Please do not install the display in corrosive gas environment containing acid or base components, such as chemical warehouse.
5. Electromagnetic radiation environment
Please do not install display when electromagnetic radiation and radio frequency radiation environment is over field strength 5V/m.
If necessary, isolation treatment should be taken.
6. Steady power supply
If necessary, users have to install surge switches in the distribution box and ground fault protection to avoid lightning strikes.
Do not use the display in strong lightning and other severe weather.
7. Conductive material is strictly prohibited to contact display, such as metal dust and water.
Screens are placed in the environment of low dust as far as possible, otherwise it will affect the display effects, as well as damage the circuit.
If exposed to water for various reasons, please immediately power down until the screen unit dry.
8. Controlling colors
Do not display a long time in a white, red, green, blue or other bright screen, because this will affect the display lifetime.
9. Controlling time
LED display at least rest 2 hours a day. Normally turn on the screen at least twice a week or more (Especially in the rainy season it is necessary to turn on the display every day).
And it maintains more than 2 hours every time.
