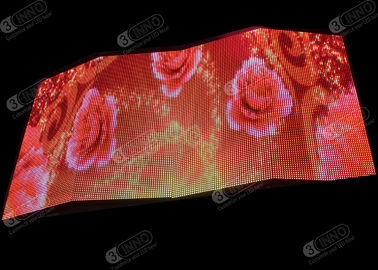

Aluminum Indoor Curved LED Curtain Concert LED Display P6.94 P8.92 P10.51 P12.5mm

Aluminum Indoor Curved LED Curtain Concert LED Display P6.94 P8.92 P10.51 P12.5mm

Aluminum Indoor Curved LED Curtain Concert LED Display P6.94 P8.92 P10.51 P12.5mm
Aluminum Indoor Curved LED Curtain Concert LED Display P6.94 P8.92 P10.51 P12.5mm Aluminum Indoor Curved LED Curtain Concert LED Display P6.94 P8.92 P10.51 P12.5mm

Large Image :  Aluminum Indoor Curved LED Curtain Concert LED Display P6.94 P8.92 P10.51 P12.5mm

Product Details:
Place of Origin: China
Brand Name: 3Cinno
Certification: CE/ROHS/FCC/SGS
Model Number: M indoor series
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm
Price: negotiation
Packaging Details: Flight case / Wooden box
Delivery Time: 15~25 working days after received your payment
Payment Terms: T/T
Supply Ability: 2,000square meters per month
Detailed Product Description
Pixel Pitch: P6.94 / P8.92 / P10.51 / P12.5 Mm LED Lamp: 3in1 SMD 3528
Brightness: >1200 CD/sq.m Refresh Rate: 1200/2000 Hz
Material: Aluminum Working Tempearture: -30~50 °
Panel Size: 500*500*47.5mm (W*H*D) Transparent: Available
High Light:

indoor LED display signs

,

outdoor full color LED display

Aluminum Indoor Curved LED Curtain Concert LED Display P6.94 P8.92 P10.51 P12.5mm



Main Feature:



Curve :            with 15 degrees rotating curve, enable to create kinds of attractive shapes

Lightweight::   One square meter is only 26kg! Save much transportation cost!

500*1000mm:  500*1000mm panel makes assembling very easy in short time.

Fast :               Fast installation, dismantling, and maintenance, save much labor and time cost.

Transparent :  See-through design make the stage look more bigger and gorgeous

Compatible :     Same structure for indoor and outdoor application





Application:



Perfectly used for indoor stage, concerts, cooperating events, studio, clubs, celebration,etc.





Specification:



Concert Indoor Mesh LED Display Unit M-i6 M-i8 M-i10 M-i12
Pixel pitch mm 6.94 8.92 10.41 12.5
Brightness cd/㎡ 1400 1200 1200 900
IP rating Indoor Indoor Indoor Indoor
Pixel density per tile pixels 72×144 56×112 48×96 40×80
Pixel density pixels/sqm 20736 12544 9216 6400
Viewing angle(H/V) degree 140/140 140/140 140/140 140/140
Weight kg/tile 11 10 10 10
Weight lbs 24 22 22 22
Power consumption(max/ave) W/tile 240/80 200/70 200/70 150/50
Size(W×H×D)  mm/tile 500×1000×47.5
Material Aluminum
Weight kg/panel 13
LED type 3-in-1 SMD
Processing bit/color 14/16
Colors trillion 4.39/281
Refresh rate Hz 1200/2000
Operating power VAC,Hz 220/110,50/60
Serviceability Rear
Lifetime hrs 100,000 (@50% brightness)
Operating temperature ﹣30 ~50
Operating humidity RH 10%~90%
Control System Nova/Linsn/Dbstar
Source compatibility AV,S-Video,HDMI,DVI,DP,VGA (with VP)





Competitive advantage:



1. Professional

3Cinno is a high-tech company whose staff is engaged in the professional development

and production of indoor/outdoor full color LED display many years



2.CE&ROHS&ISO9001 certificated

CE&ROHS&ISO9001 ensure the quality of LED display



3. Good after-sales service

Our after-sales engineers have been in LED field for more than 5 years who will give the customer

the most professional guidance about LED.



4. Good quality and competitive price

As professional manufacturer who engaged in LED display many years, we ensure quality is under

strict control, not only prices are very competitive.



5. On-site service is available.

Upon the customer’s request, our engineers could fly to the country for installation guide, including

 debugging and test service.
