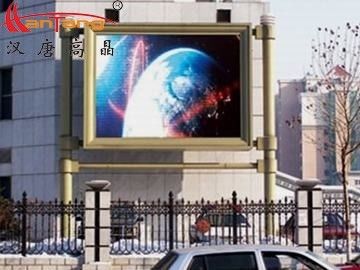

Full Color P25 Outdoor LED Display For Video Wall Board Advertisement

Full Color P25 Outdoor LED Display For Video Wall Board Advertisement

Full Color P25 Outdoor LED Display For Video Wall Board Advertisement
Full Color P25 Outdoor LED Display For Video Wall Board Advertisement

Large Image :  Full Color P25 Outdoor LED Display For Video Wall Board Advertisement

Product Details:
Place of Origin: CHINA
Brand Name: HANTANG
Certification: CE,RoHS,C-TICK,ISO.
Model Number: HTGJ-OF25
Payment & Shipping Terms:
Minimum Order Quantity: 1 Square Meter/Square Meters module
Price: US $ 700 - 900 / Square Meter
Packaging Details: Plywood case/Flight cases etc.
Delivery Time: 10-15 working days.
Payment Terms: 30%before producing,the balance before shipping
Supply Ability: 3000sq.m/month.
Detailed Product Description
High Light:

outdoor led sign

,

outdoor led display screen

Full Color P25 Outdoor LED Display For Video Wall Board Advertisement

Pixel pitch:10mm,12mm,12.5mm,14mm,16mm,20mm,25mm,31.25mm...


Application :billboard,concerts and and stage, events,stadium,advertising ,train station,shopping center,meeting screen ,airport ,mall...

Features:
1,Using high -quality LED light tube , high brightness,  low light attenuation

2,100% polycarbonate ( the PC) as a suite of raw materials , with no distortion, no cracking, good toughness, simple splicing

3,LED screen Screen brightness is automatically adjusted to follow the external environment , does not produce light pollution

4 High refresh rate , scan mode screen is 2000HZ static screen  is more than 4000HZ

5,  Waterproof IP65





Specification:

Usage  Outdoor
Pitch(mm) 25
Pixel Constitute 2R1G1PB
LED--Opto+Silan R:λd(625-630nm) G:λd(522.5-525nm) B:λd(467.5-470nm) R:(450-500mcd) G:(1600-1800mcd) G:(350-400mcd)
Module Size(mm) 200*200
Module Resolution 8*8
Recommended Minimum Viewing Distance(m) ≥25
Viewing Angle(°C) V60, H120
Average Power Consumption 170W/sqm
Brightness (white balance) ≥6000cd/sqm
Size of cabinet(mm) 1000*1000*80
Weight of cabinet 60kg/sqm
Cabinet pixels(dot) 32*32
Frame frequency ≥60Hz
Refresh rate ≥2000Hz
Grey color ≥16.7M
Brightness adjustment 256 grade manual, 8 grade automatic
Average NO failure time 5000 hours
Life span 100000 hours
Working temperature -30 °C ~+60°C
Driving Voltage 5VDC
Working Voltage 110 to 220VDC
Scan Mode  static
Display Function Video, Animation, Graphics, other
Operating system Windows (2000/XP/Vista)
Control distance CAT5 cable:<100 m; Single fiber:<10 km
