Product Details:
Payment & Shipping Terms:
|
| High Light: | led outdoor displays,outdoor led display screen |
||
|---|---|---|---|

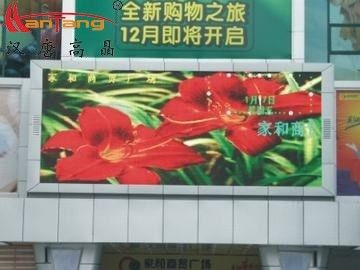

P16 High Brightness Full Color Outdoor LED Display For Billboard / Concerts
Pixel pitch:10mm,12mm,12.5mm,14mm,16mm,20mm,25mm,31.25mm,37.5mm...
Application :billboard,concerts ,stage, events,stadium,advertising ,train station,shopping center,meeting screen ,airport ,mall...
Features:
1,Using high -quality LED light tube , high brightness, low light attenuation
2,100% polycarbonate ( the PC) as a suite of raw materials , with no distortion, no cracking, good toughness, simple splicing
3,LED screen Screen brightness is automatically adjusted to follow the external environment , does not produce light pollution
4, High refresh rate , scan mode screen is 2000HZ static screen is more than 4000HZ
5, Waterproof IP65
Specification:
| Usage | Outdoor |
| Pitch(mm) | 16 |
| Pixel Constitute | 1R1G1B |
| LED--Opto+Silan | R:λd(625-630nm) G:λd(522.5-525nm) B:λd(467.5-470nm) R:(450-500mcd) G:(1600-1800mcd) G:(350-400mcd) |
| Pixel Density(dots/sqm) | 3906 |
| Module Size(mm) | 256*256 |
| Module Resolution | 16*16 |
| Recommended Minimum Viewing Distance/M | ≥16 |
| Viewing Angle(°) | V60, H120 |
| Average Power Consumption | 350W/sqm |
| Brightness (white balance) | ≥7000cd/sqm |
| Size of cabinet(mm) | 1024*768*120 |
| Weight of cabinet | 60kg/M2 |
| Cabinet pixels(dot) | 64*48 |
| Frame frequency | ≥60Hz |
| Refresh rate | ≥2000Hz |
| Grey color | ≥16.7M |
| Brightness adjustment | 256 grade manual, 8 grade automatic |
| Average NO failure time | 5000 hours |
| Life span | 100000 hours |
| Working temperature | -30 °C~+60°C |
| Driving Voltage | 5VDC |
| Working Voltage | 110 to 220VDC |
| Scan Mode | static |
| Display Function | Video, Animation, Graphics, other |
| Operating system | Windows (2000/XP/Vista) |
| Control distance | CAT5 cable:<100 m; Single fiber:<10 km |
